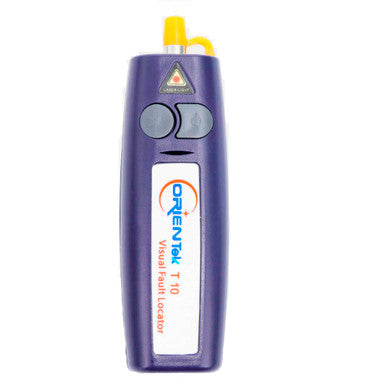

OrienTek T10-20mW Visual Fault Locator, 650 nm Red Laser, 20 mW, about 15 km

Manufacturer part number
T-10-20
EhubAmerica SKU
T10-20mW

$31.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The OrienTek T-10-20 (T10-20mW) is a pocket visual fault locator that sends a 650 nm red laser into an optical fiber to show breaks, tight bends and bad connectors as visible red light. It also checks fiber continuity and polarity.

The 20 mW FP-LD laser runs in CW or 2 Hz pulsed mode and reaches about 15 km of fiber. It fits 2.5 mm ferrules (FC, SC, ST) with its universal connector, with a 1.25 mm LC adapter as an option. It runs on two AAA batteries for about 15 hours, measures 120 x 35 x 20 mm, weighs 40 g without batteries and operates from -10 to 60 °C.

  • Best for: fault finding, continuity and polarity checks on patch cords and fiber runs during installation and repair.
  • System fit: single-mode and multimode fibers with 2.5 mm ferrule connectors; 1.25 mm LC with optional adapter.
  • Important to know: the 20 mW red laser is hazardous to eyes; never look into a fiber end or the output port.

Why teams choose it

Built for reliable networks

  • Visible faults

    650 nm red light shows breaks and bends.

  • Long reach

    about 15 km test distance at 20 mW.

  • Two modes

    continuous or 2 Hz pulsed output.

  • Pocket size

    120 x 35 x 20 mm, 40 g, two AAA batteries.

Specifications

Technical specifications

Product identifiers
SKUT10-20mW
General
Brand OrienTek
Model T-10-20
Part Number T10-20mW
Device Type Visual fault locator
Optical
Wavelength 650 nm
Laser Type FP-LD
Output Power 20 mW
Operation Modes CW and pulsed, 2 Hz
Test Distance About 15 km
Interfaces
Connector 2.5 mm universal, FC, SC, ST
Optional Adapter 1.25 mm LC
Power
Batteries 2x AAA
Operating Time 15 hours
Physical
Dimensions 120 x 35 x 20 mm
Weight 40 g without batteries
Environmental
Operating Temperature -10 to 60 °C
Storage Temperature -20 to 70 °C
