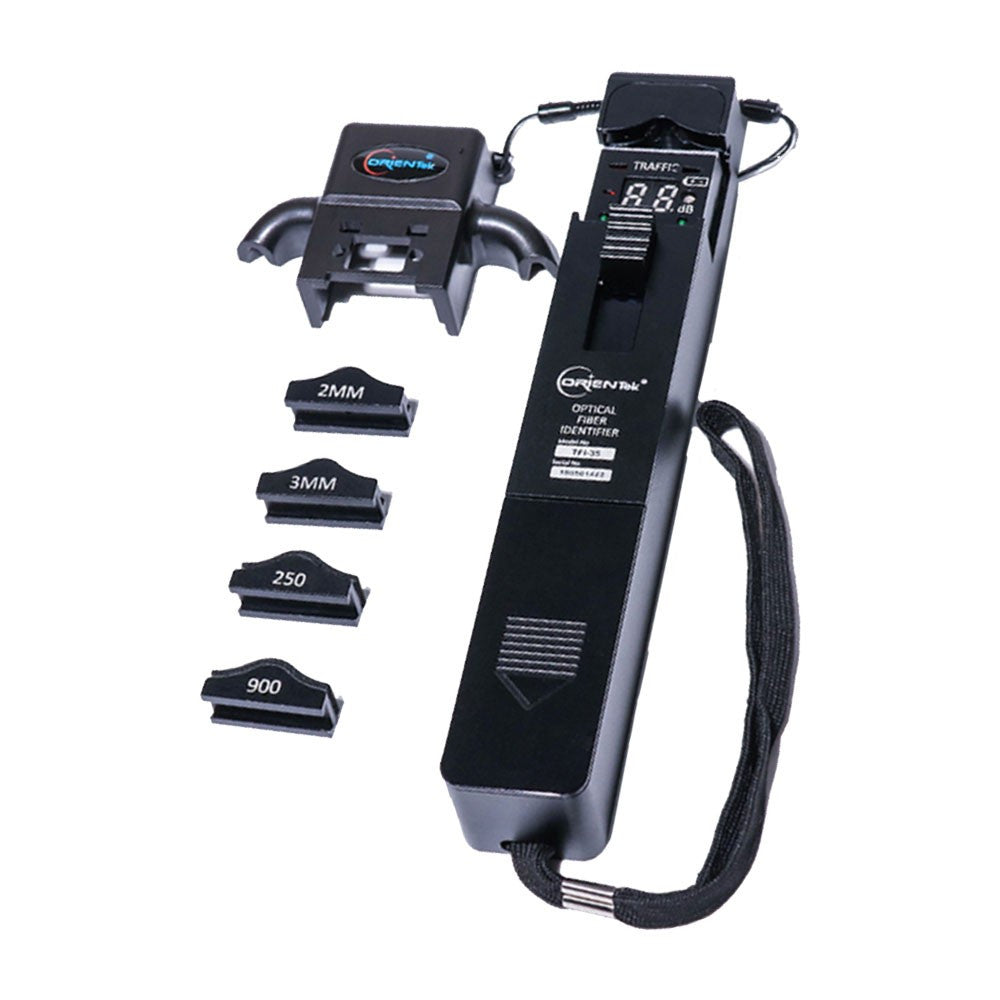

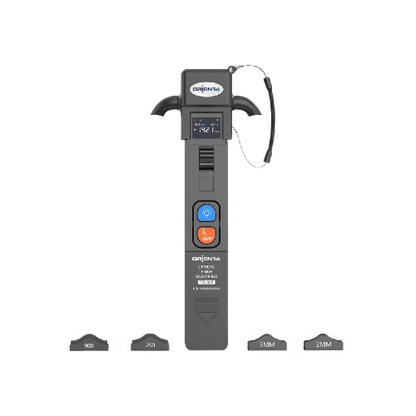

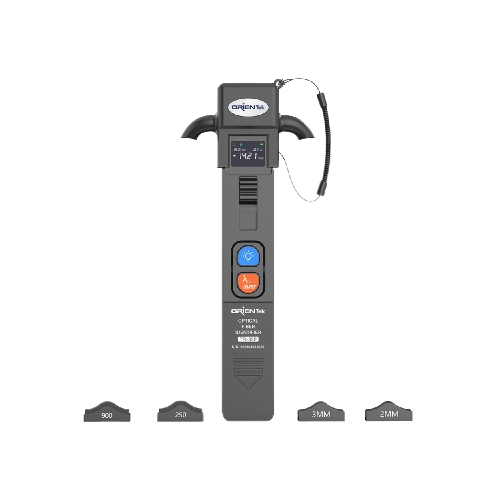

OrienTek TFI-35 Fiber Optic Identifier Tester 800-1700nm Bare/0.9/2.0/3.0mm

PRODUCT OVERVIEW

Developed using advanced technology, it features a compact handheld design , which contributes to excellent portability and ease of operation . It comes in a sturdy carrying case, including three adapter heads , and can handle coated fibers ranging from 250μm to 900μm (0.250mm - 0.900mm) , with buffers ranging from 2000μm to 3000μm (2.0mm - 3.0mm). It displays the direction and intensity of an optical transmission and can identify multiple signal frequencies without interrupting the service.

PRODUCT TYPE

Fiber

KEY FEATURES

• Features Display relative optical power.
• Test online without interruption of the link
• Recognize the signal of 270Hz, 1KHZ,2KHz.
• Comes with a hood to provide more accurate test results outdoors
• Identify the propagation direction of light, sound alarm reminder.
• LED display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.
• Test sensitivity -40dBm to 10dBm.
• Low power reminder.
• Highlights Bare fiber cable
• 0.9mm fiber cable
• FTTH drop cable
• 3.0mm jump cable
• 195mm x 10mm x 8mm
• 235g
• Type: TFI-35
• Identified Wavelength Range: 800nm to 1700nm
• Identified Signal Type: CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
• Detector Type: φ1mm InGaAs 2 pcs

TECHNICAL SPECIFICATIONS

• Brand: OrienTek
• Model: TFI-35
• Product Type: Fiber
• Features Display relative optical power.
• Test online without interruption of the link
• Recognize the signal of 270Hz, 1KHZ,2KHz.
• Comes with a hood to provide more accurate test results outdoors
• Identify the propagation direction of light, sound alarm reminder.
• LED display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.
• Test sensitivity -40dBm to 10dBm.
• Low power reminder.
• Highlights Bare fiber cable
• 0.9mm fiber cable
• FTTH drop cable
• 3.0mm jump cable
• 195mm x 10mm x 8mm
• 235g
• Type: TFI-35
• Identified Wavelength Range: 800nm to 1700nm
• Identified Signal Type: CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
• Detector Type: φ1mm InGaAs 2 pcs
• Adapter Type: φ0.25(for Bare Fiber),φ0.9,φ2.0(Applicable for φ3.0Cable)
• Signal Direction: Left & Right LED
• Optical Power Reading: -40 dBm to 10 dBm
• Signal Frequency: 270Hz,1kHz,2kHz
• Power Supply: AA*2
• Operating Temperature: -10℃ to 60℃
• Storage Temperature: -25℃ to 70℃

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
