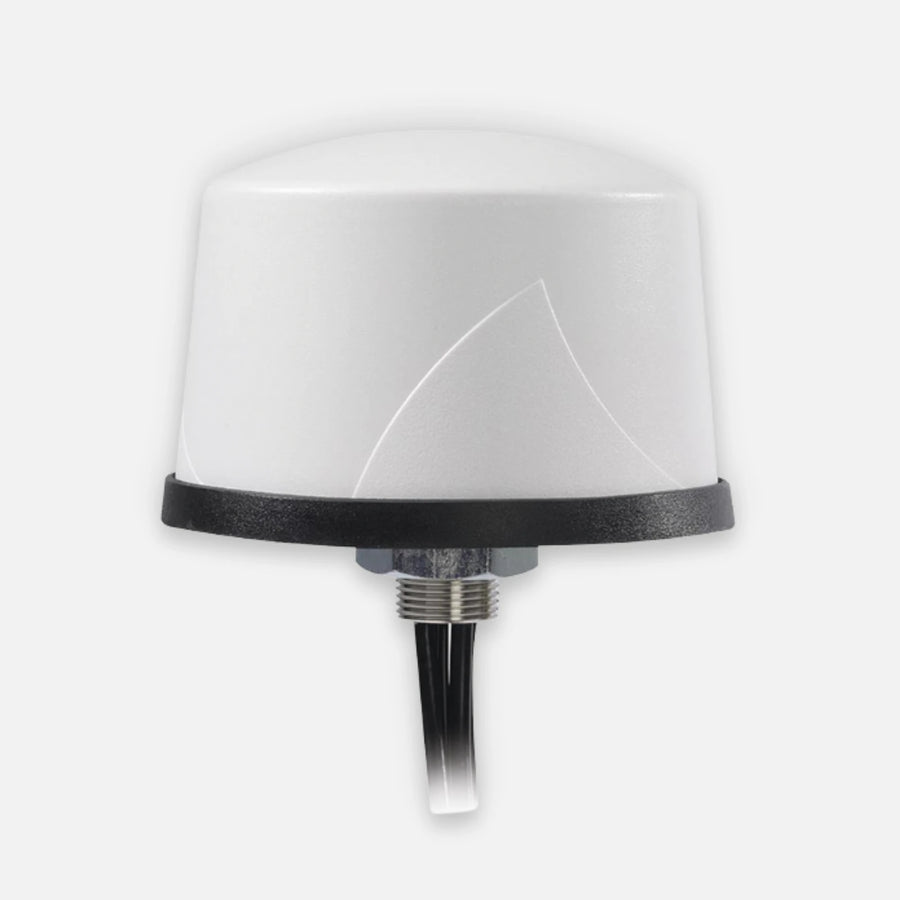

PCTEL GLHPDLTEMIMO-SF Multi-Band LTE MIMO 802.11ac GNSS Antenna IP67
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Multi-band vehicular antenna system combining LTE MIMO, dual-band 802.11ac Wi-Fi MIMO, and high-rejection GPS/GLONASS support in a low-profile IP67-rated housing for mobile broadband and GNSS applications.
PRODUCT TYPE
Antennas (Networking)
KEY FEATURES
• Multi-band LTE MIMO antenna system
• Dual-band 802.11ac Wi-Fi MIMO support
• Integrated GPS L1, Galileo, and GLONASS frequency support
• Proprietary high-rejection GNSS filtering design
• Omnidirectional antenna performance
• IP67-rated enclosure for outdoor and vehicular use
• UV-stable rugged thermoplastic housing
• Magnetic mount installation
• Supports dual or triple Wi-Fi MIMO configurations
• Single low-profile housing for LTE, Wi-Fi, and GNSS connectivity
• White housing finish for vehicular integration
• Five integrated antenna cables included
TECHNICAL SPECIFICATIONS
• Manufacturer: PCTEL
• Manufacturer Part Number: GLHPDLTEMIMO-SF
• Antenna Category: Multi-Band (Cellular, WiFi, and/or GPS)
• LTE Frequency Range: 698–960 MHz / 1710–2700 MHz
• LTE Gain: 2.5 dBi
• Wi-Fi Frequency Range: 2.4–2.5 GHz / 4.9–5.9 GHz
• Wi-Fi Gain: 3–4 dBi
• Antenna Style: Multi Element/Band Antenna
• Polarization: Vertical
• Configuration: MIMO
• Radiation Pattern: Omnidirectional
• Impedance: 50 Ohm
• Maximum Input Power: 50 Watts
• VSWR: < 2.0:1
• Height: 5.1 Inches (130 mm)
• Width: 3.6 Inches (92 mm)
• Weight: 2.5 lbs
• Material: UV-Stable Rugged Thermoplastics
• Operating Temperature: -40°C to +85°C
• Mount Style: Magnetic
• Color: White
• Number of Cables: 5
• Cable Length: 204 Inches (5000 mm)
• Connector 1: SMA-Male
• Connector 2: RP SMA-Male
• Environmental Rating: IP67
• Outdoor Rated: Yes
• Vehicular Use: Yes
• Ground Plane Required: No
• Product Condition: New
INTENDED USE / APPLICATIONS
• Vehicular LTE and Wi-Fi network deployments
• Mobile broadband communication systems
• Fleet connectivity applications
• GNSS positioning and navigation support systems
• Outdoor wireless communication installations
