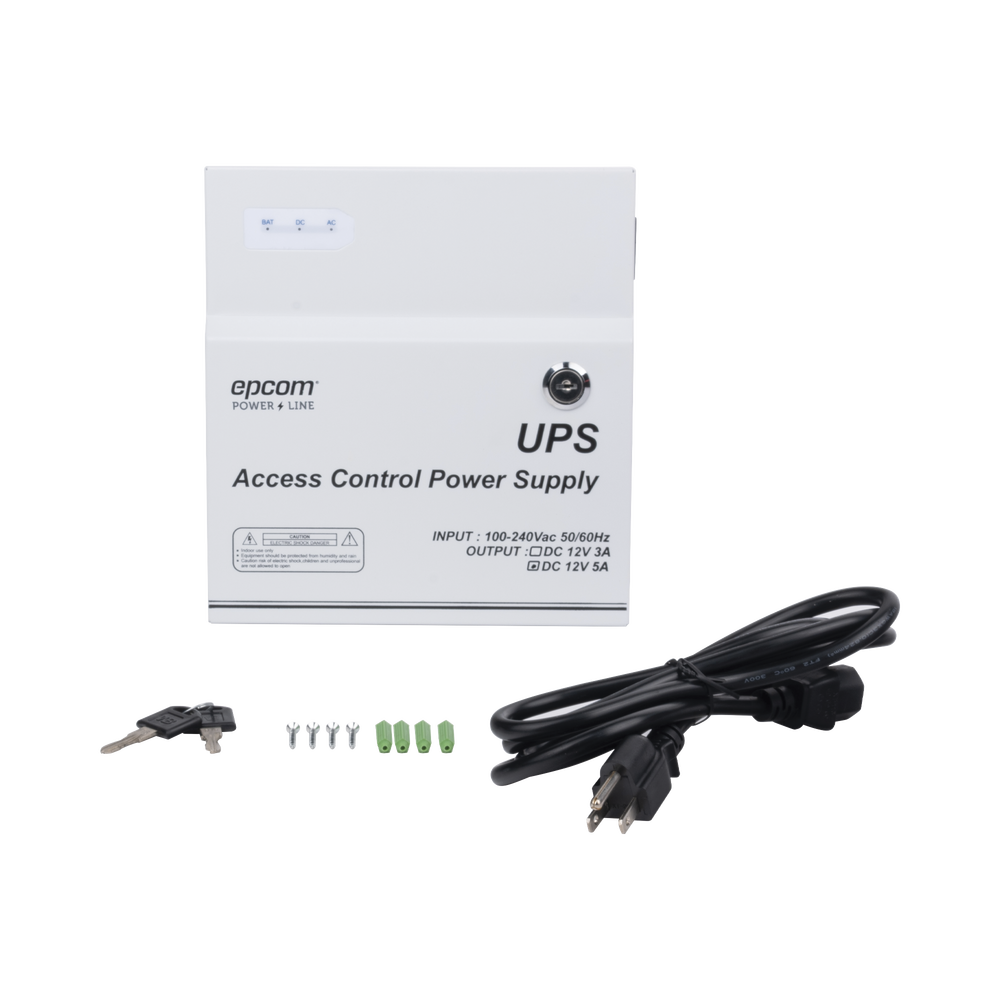

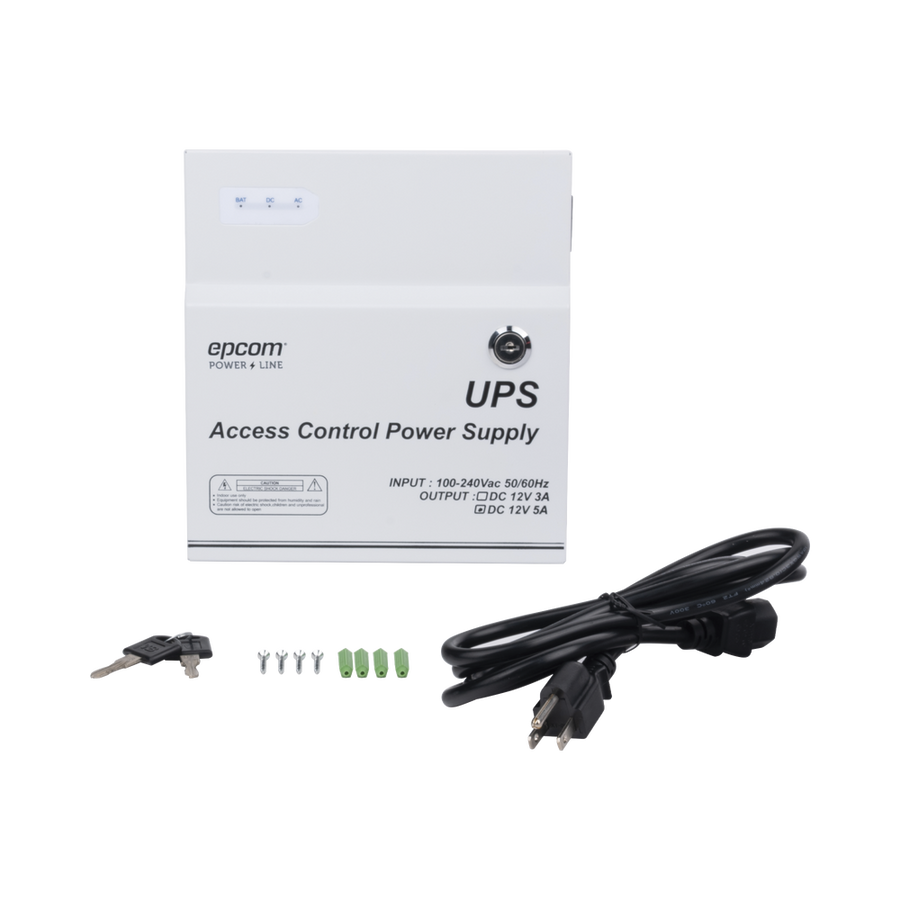

Epcom PL12DC5ABK 12VDC 5A Access Control Power Supply Battery Backup
Product identifier
SKU
PL12DC5ABK
$74.65
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Features
- Charging voltage: 3.6-13.8V
- Input Voltage: 96-264Vac
- Output Voltage Tolerance: +-1% after 40mS
- Output Voltage: 11-15Vdc
- Output current: 5A
- Adjustable time: 0-45s
- With Backup Battery Capacity
- Battery is not included
- The battery can be: PL4.512 / PL712 / PL912
- 12 VDC output energized 1-45 seconds time delay
- Dimensions: 8.44 x 2.79 x 7.87 in (214.5 x 71 x 200 mm), Weight 1.95 Kgs
UPS FUNCTION
Uninterruptible Power Supplies, known as UPS, supply power through an AC voltage input. When the input power source fails, the battery supplies the output power. When the battery voltage drops to 10.5V, it gets disconnected in order to protect the battery life.
Note: Battery is not included
Set the power supply to a voltage of 12.90 VDC for optimal operation.
Key Features
- Universal 96-264 VAC Input for Worldwide Compatibility
- Adjustable 11-15 VDC Output at 5 Amps Maximum
- External Battery Backup Support for Continuous Operation
- Programmable 0-45 Second Timer for Access Control
- Compact 8.4 x 2.8 x 7.9 Inch Design for Space Saving
- Automatic Uninterruptible Operation During Power Failures
