FIBERHOME

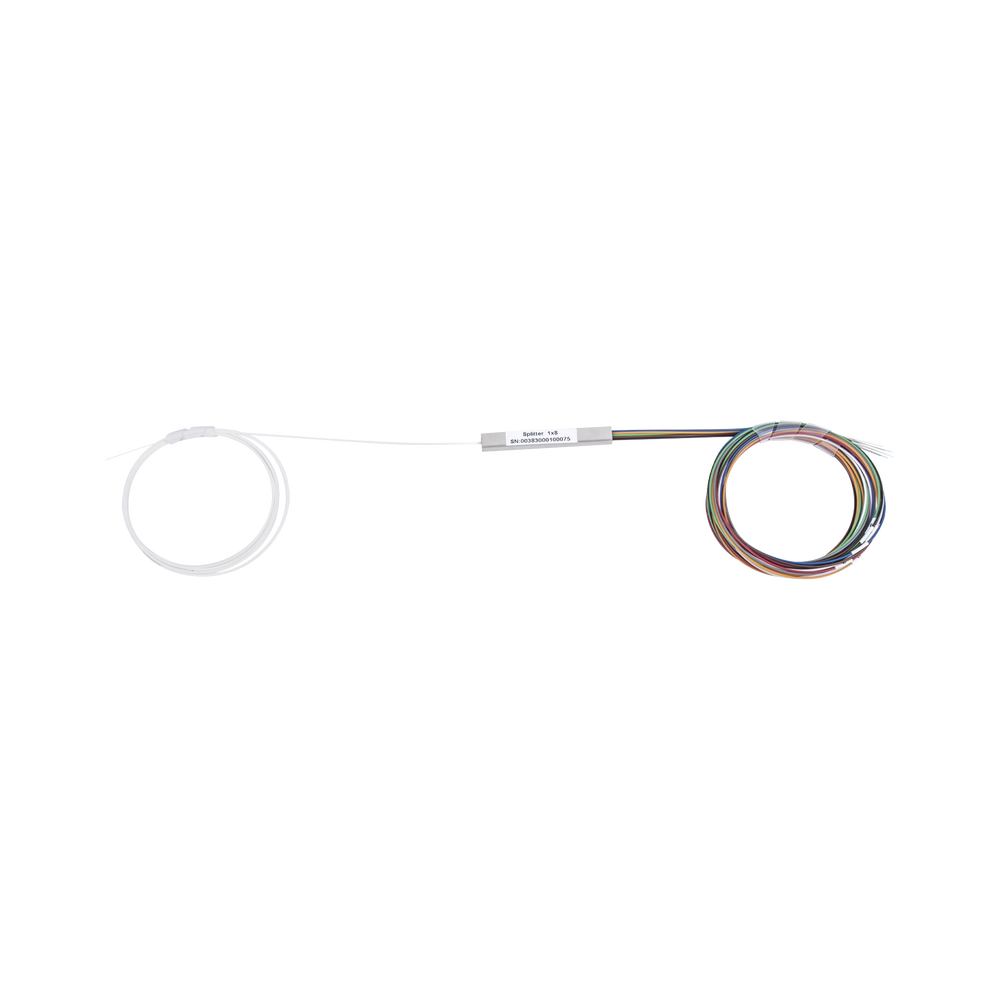

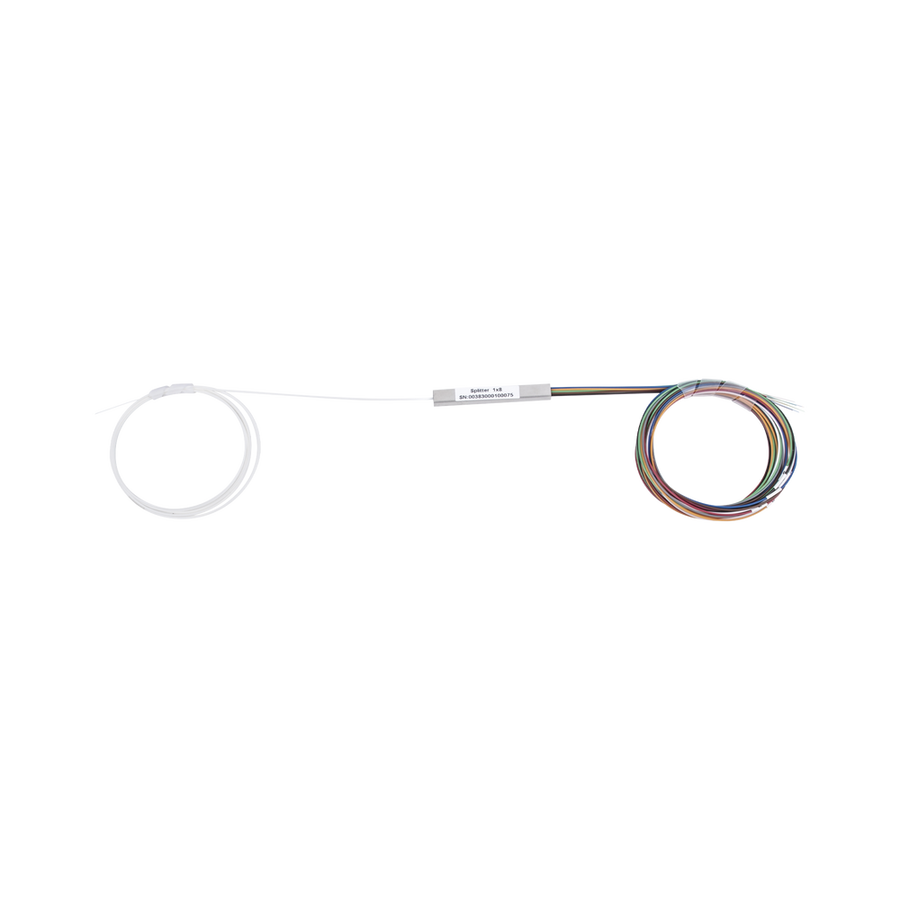

Fiberhome PLC-108-S PLC 1:8 Micro Splitter without Connectors
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The PLC Optical Splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective, network space-saving solution. The PLC splitter evenly splits an optical signal from one or two input ports to multiple output ports. It can work at wavelengths from 1260 to 1650nm. It is compact and can be installed in underground, aerial, pole, pedestal, and rack systems.
FiberHome PLC Splitter adopts the patented low-loss technology. It features low insertion loss, low polarization loss, and high port uniformity. All products comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with the RoHS directive. PLC Splitters are available in various configurations, pre-terminated and rugged environment boxes, compact square boxes, or flat tubes.
Technical Specifications:
- Ø0.9mm input loose tube pigtail without connector
- Ø0.9mm output loose tube pigtail without connector
- Adopts G.657A optical fiber
- Microencapsulation
- Provides split ratio 1x8
Optical Properties:
- Wavelength Range: 1260 ~1650nm
- Maximum Input Power: >300mW
- Directivity: >55dB
- WDL: <0.5dB
- PDL: <0.3dB
Applications:
- FTTx
- LAN, WAN
- CATV
- Tests and dimensions
Key Features
- Planar Waveguide Technology for FTTx Network Efficiency
- Low Insertion Loss and High Port Uniformity Performance
- Complies With Telcordia GR-1209 and GR-1221 Standards
- Compact Size for Versatile Underground and Aerial Installation
- Wide Operating Temperature Range From -40°F to 185°F
- ROHS Compliant Materials and G.657A Optical Fiber
