EPCOM

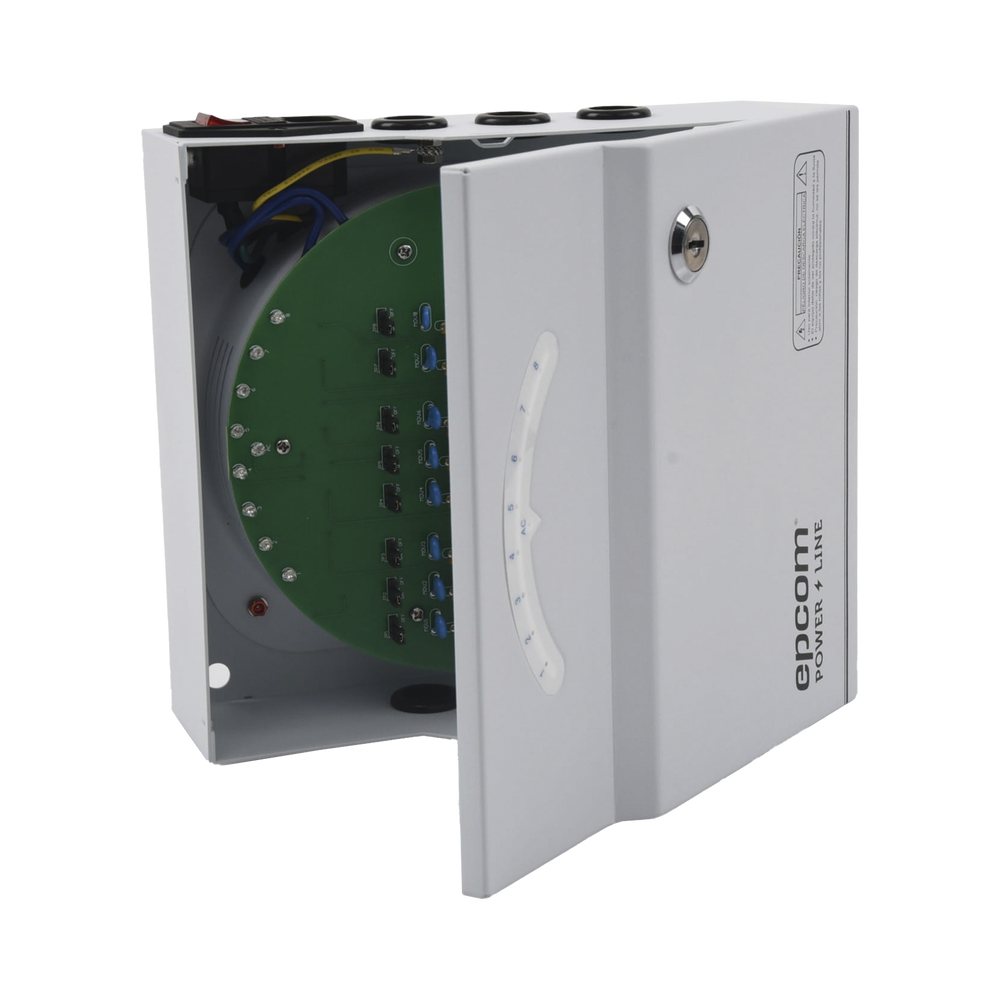

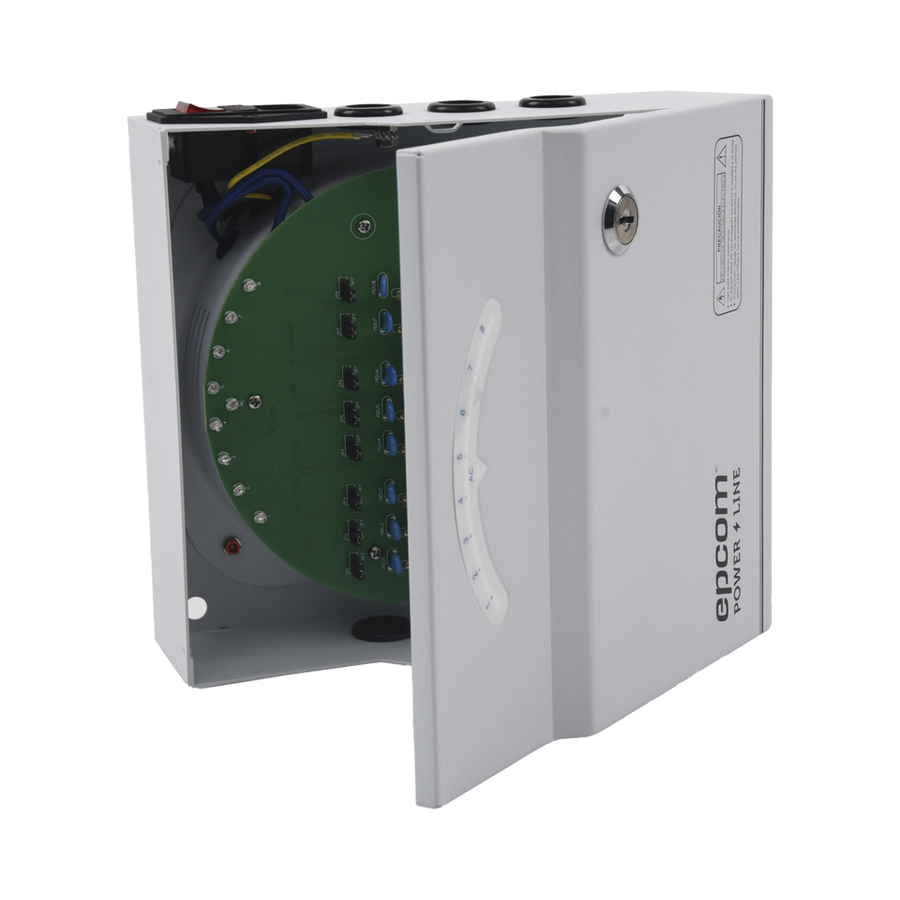

Epcom PLK-24-AC-8A 8-Channel 200W Power Supply 24VAC 8A
Product identifier
SKU
PLK-24-AC-8A
$128.93
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The new generation of power supplies specialized in providing efficient energy, providing a better solution in security systems, unique in using chips
"Fairchild" in any power source.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified to international standards such as CE, ROHS, FCC.
Features:
- Easy installation source.
- Short circuit, over-current, and overvoltage.
- 5 KA overcurrent protection
- Cooling system air convention.
- External LED indicators for each channel output.
- Built-in electromagnetic interference filter EMI.
Specifications:
- Input voltage: 110 Vac.
- Output voltage: 21 -28 V AC.
- Output current 8 Amper.
- Output power: 200 W.
- Output channels 8.
Protection:
- Overcurrent protection: 120-150%
- Surge protection: 105-150% (in nominal output voltage)
- Short circuit protection: short the output voltage, with automatic reset.
Safety standards:
- IEC / EN / CSA, 60950 GB4943
Operating temperature:
- -4 to 158°F (-20 to 70 °C)
Dimensions:
- 12.75 x 9.88 x 3.54" (324 x 251 x 90 mm)
Key Features
- Fairchild Chips for Maximum Efficiency and Reliability
- International Certifications Including CE, RoHS, and FCC
- 5 kA Short Circuit Protection With Auto Reset
- Convection Air Cooling System for Silent Operation
- Individual LED Indicators for Each Output Channel
- Built-in EMI Filter for Electromagnetic Interference Protection
