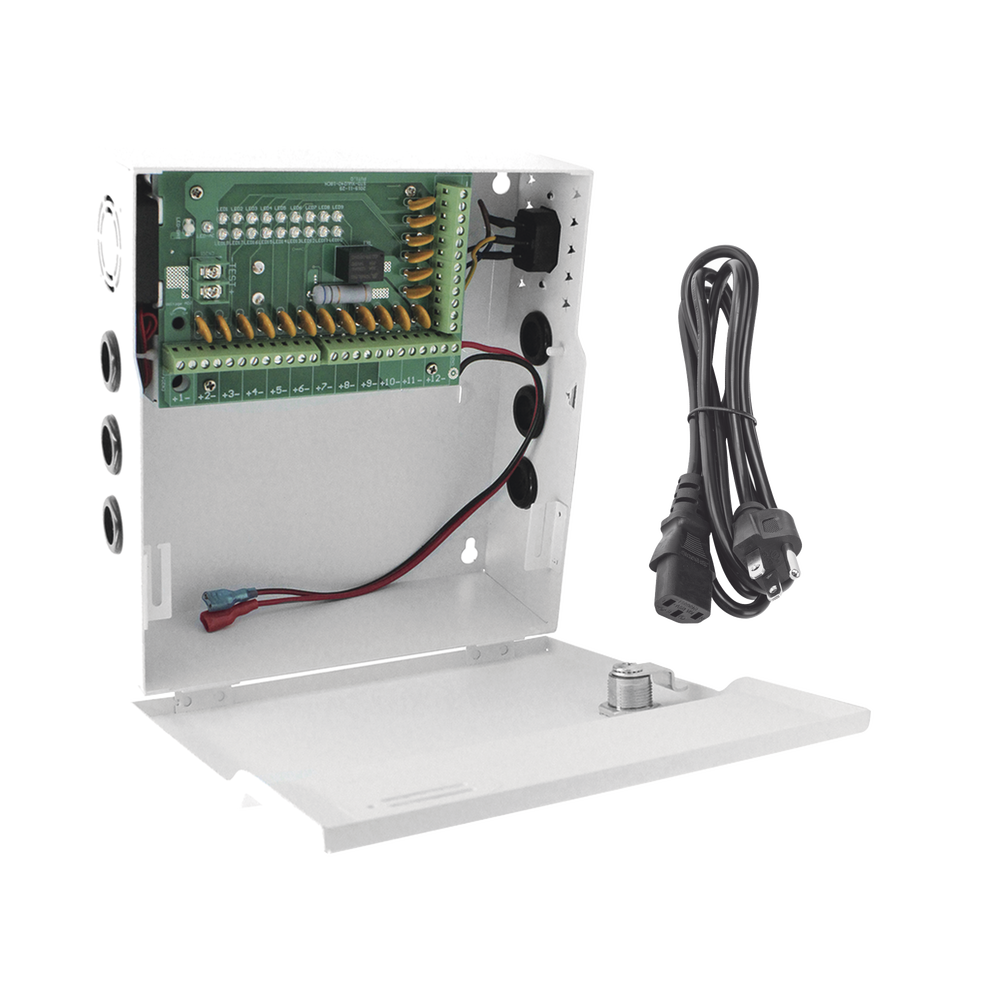

Epcom PLK12DC20ABK 12VDC 20A 18-Channel Power Supply w/ Backup Battery

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

Epcom PLK12DC20ABK 12VDC 20A 18-Channel Power Supply with Backup Battery Support

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

The Epcom PLK12DC20ABK is an 18-channel 12 VDC power supply delivering up to 20 A output with backup battery support. Designed for CCTV, alarm, and access control systems, it features comprehensive protection circuits, EMI filtering, and LED output indicators.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘

Parent Category: Security

Subcategory: Surveillance Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• 18-channel 12 VDC power supply for security systems
• Adjustable output voltage from 11 to 15 VDC
• Total output current of 20 A with up to 2 A per channel
• Universal AC input from 96 to 264 VAC
• Supports 12 VDC backup battery operation
• Automatic battery monitoring with 10.5 V low-voltage cutoff protection
• Automatic system restart after AC power restoration
• Overvoltage, overcurrent, short circuit, and EMI protection
• 5 kA surge protection
• External LED indicators for each output channel
• Passive air convection cooling system
• Certified to CE, RoHS, and FCC standards

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Brand: Epcom
• Model: PLK12DC20ABK
• Product Type: 18-Channel Power Supply with Backup Battery Support
• Input Voltage: 96–264 VAC
• Output Voltage: 12–14.8 VDC (Adjustable 11–15 VDC)
• Output Current: 20 A Total (Up to 2 A Maximum per Channel)
• Output Channels: 18
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Dimensions: 7.95 × 8.52 × 2.87 in
• Overcurrent Protection: 120–150%
• Surge Protection: 20–150% of nominal output voltage and 5 kA surge protection
• Short Circuit Protection: Automatic reset after fault removal
• Built-In Filter: EMI (Electromagnetic Interference) Filter
• Safety Standards: IEC / EN / UL / CSA 60950, GB4943

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Power supply for CCTV systems
• Power supply for alarm systems
• Power supply for access control systems

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

𝐈𝐌𝐏𝐎𝐑𝐓𝐀𝐍𝐓 𝐍𝐎𝐓𝐄𝐒

• Backup battery is required for backup operation and is not included.
• Suggested backup battery: PL712.
• Compatible backup batteries include PL4.512, PL712, and PL912.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
