EPCOM
Epcom PLK12DC8ABK 120W 9-Channel 12VDC Power Supply 10A PoE
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

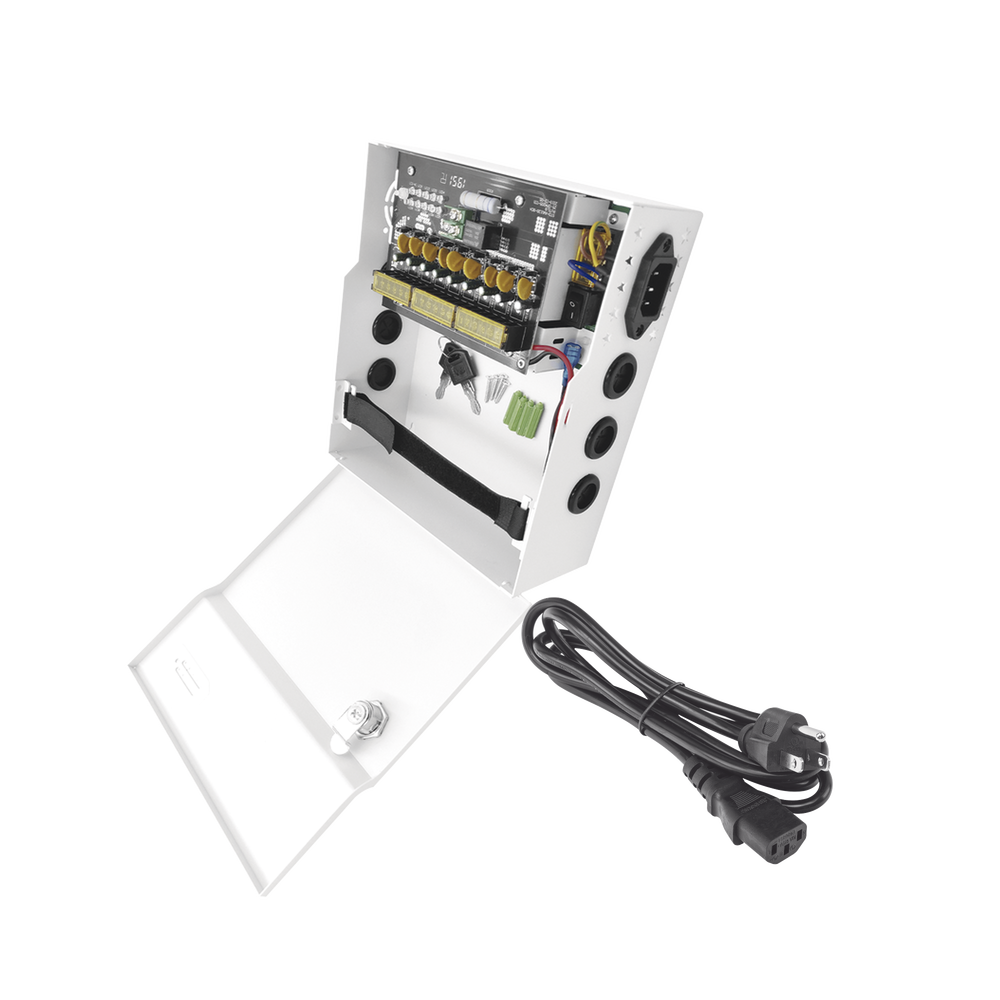

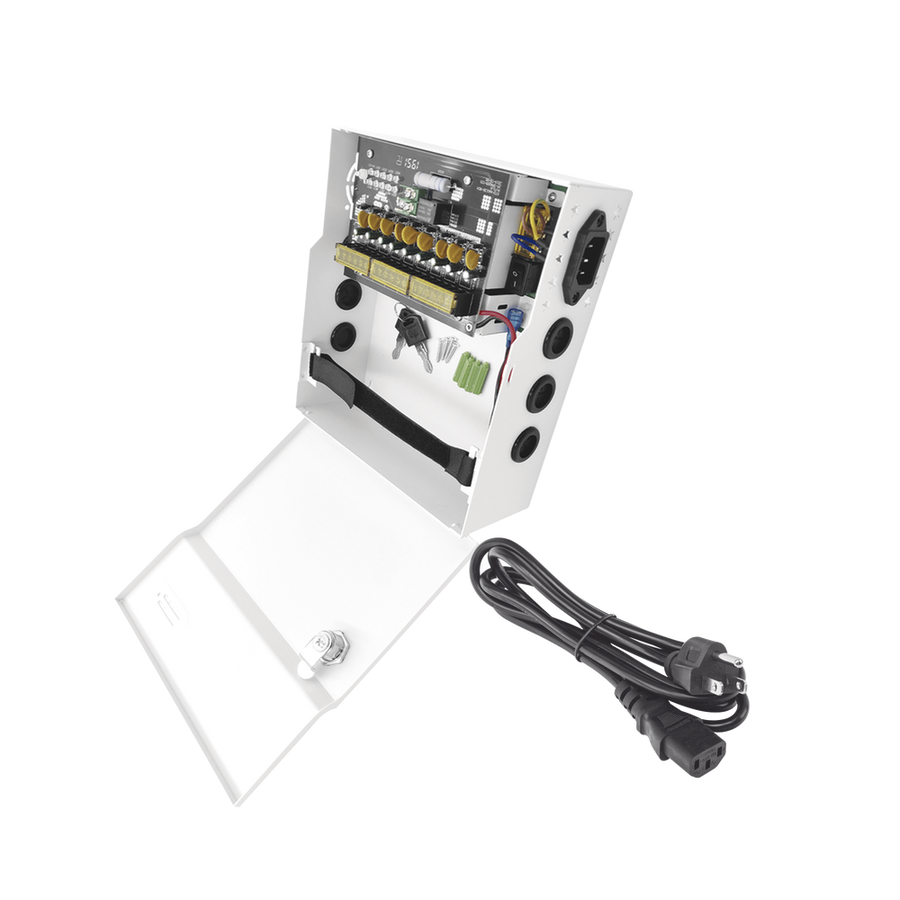

Epcom PLK12DC8ABK 120W 9-Channel 12VDC Power Supply 10A Backup Battery Ready
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
The Epcom PLK12DC8ABK is a 9-channel 12 VDC power supply delivering up to 120 W and 10 A total output. Designed for CCTV, alarm, and access control systems, it supports backup battery operation and features comprehensive protection circuits and LED status indicators.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Parent Category: Security
Subcategory: Access Control
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 9-channel 12 VDC power supply for security systems
• Adjustable output voltage from 11 to 15 VDC
• 10 A total output current with up to 2 A per channel
• Supports 12 VDC backup battery operation
• Automatic battery voltage monitoring with LED status indicators
• Low-voltage cutoff at 10.5 V for battery protection
• Universal AC input from 96 to 264 VAC
• Overcurrent, overvoltage, surge, and short circuit protection
• Built-in EMI (electromagnetic interference) filter
• Passive air convection cooling system
• Certified to CE, RoHS, and FCC standards
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Epcom
• Model: PLK12DC8ABK
• Product Type: 9-Channel Power Supply with Backup Battery Support
• Input Voltage: 96–264 VAC
• Output Voltage: 12–15 VDC (Adjustable 11–15 VDC)
• Output Current: 10 A Total (2 A Maximum per Channel)
• Output Power: 120 W
• Output Channels: 9
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Dimensions: 7.95 × 8.50 × 3.07 in
• Overcurrent Protection: 120–150%
• Surge Protection: 20–150% of nominal output voltage
• Short Circuit Protection: Automatic reset after fault removal
• Safety Standards: IEC / EN / CSA 60950, GB4943
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Power supply for CCTV systems
• Power supply for alarm systems
• Power supply for access control systems
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐌𝐏𝐎𝐑𝐓𝐀𝐍𝐓 𝐍𝐎𝐓𝐄𝐒
• Backup battery is required for backup operation and is not included.
• Suggested backup battery: PL712.
• Compatible backup batteries include PL4.512, PL712, and PL912.
