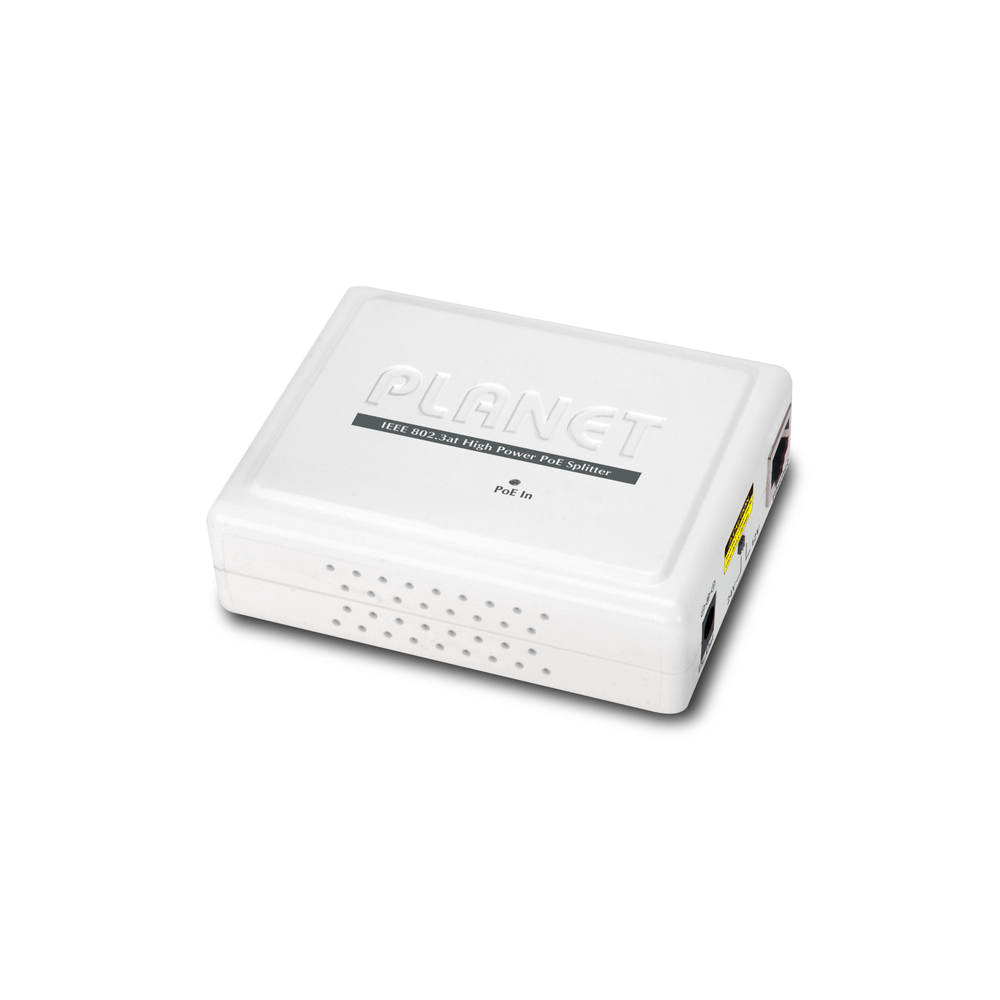

Planet POE-162S 802.3at PoE Plus Splitter 12V/24V Gigabit
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Quick and Easy 802.3at PoE Plus Network Deployment
The POE-162S can work with the IEEE 802.3at PoE Plus injector devices like the POE-161/POE-163/POE-164, IEEE 802.3at PoE Plus Switch and Media Converter to transfer data and power simultaneously to the end device. The IEEE 802.3at Power over Ethernet Plus complied PoE Switch, PoE Injector and PoE Media Converter can combine the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at Power over Ethernet Plus injector. Then, the POE-162S separates the digital data and the power into 12V/24V DC power outputs. The maximum distance between the IEEE 802.3at Power over Ethernet Plus injector devices and the splitter (POE-162S) is 100 meters, and the POE-162S also supports passive 10/100/1000Mbps Ethernet connection ability.
| Hardware specifications | |
| Hardware version | 2 |
| Interface | Data output port: 1 x RJ45 STP |
| LED indicator | System: PoE in use x 1 ( green ) |
| Network cable | Cat. UTP. 5/5e/6, up to 100 m (328 feet) |
| Data speed | 10/100/1000Mbps |
| Dimensions | 95 x 70 x 25 mm |
| Weight | 108g |
| Standard PoE | IEEE 802.3at power supply Gigabit through Ethernet/PD |
| PoE input power supply | IEEE 802.3 to 52 ~ 56 V CC |
| Dip switch | Output voltage 12 Vcc / 2 A or 24 Vcc / 1 A |
| Number of client devices that can be powered | 1 |
| IEEE 802.3 10BASE-T Ethernet | â– |
| IEEE 802.3u 100BASE-TX Fast Ethernet | â– |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | â– |
| IEEE 802.3af Power over Ethernet | â– |
| IEEE 802.3at Power over Ethernet Plus | â– |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Package includes | 1 - Divider POE-162S 1 - User manual 1 - UTP cable 2 - DC plug cable |
Key Features
- Dual Selectable Voltage Output for Flexible Device Compatibility
- Full Gigabit Ethernet Support With 1000 Mbps Data Rates
- Green LED Indicator Shows Active PoE Connection Status
- Compact Design Measures 3.7 x 2.8 x 1.0 Inches for Easy Installation
- Supports Standard UTP Cables up to 328 Feet in Length
- Wide Operating Temperature Range From 32°F to 122°F
