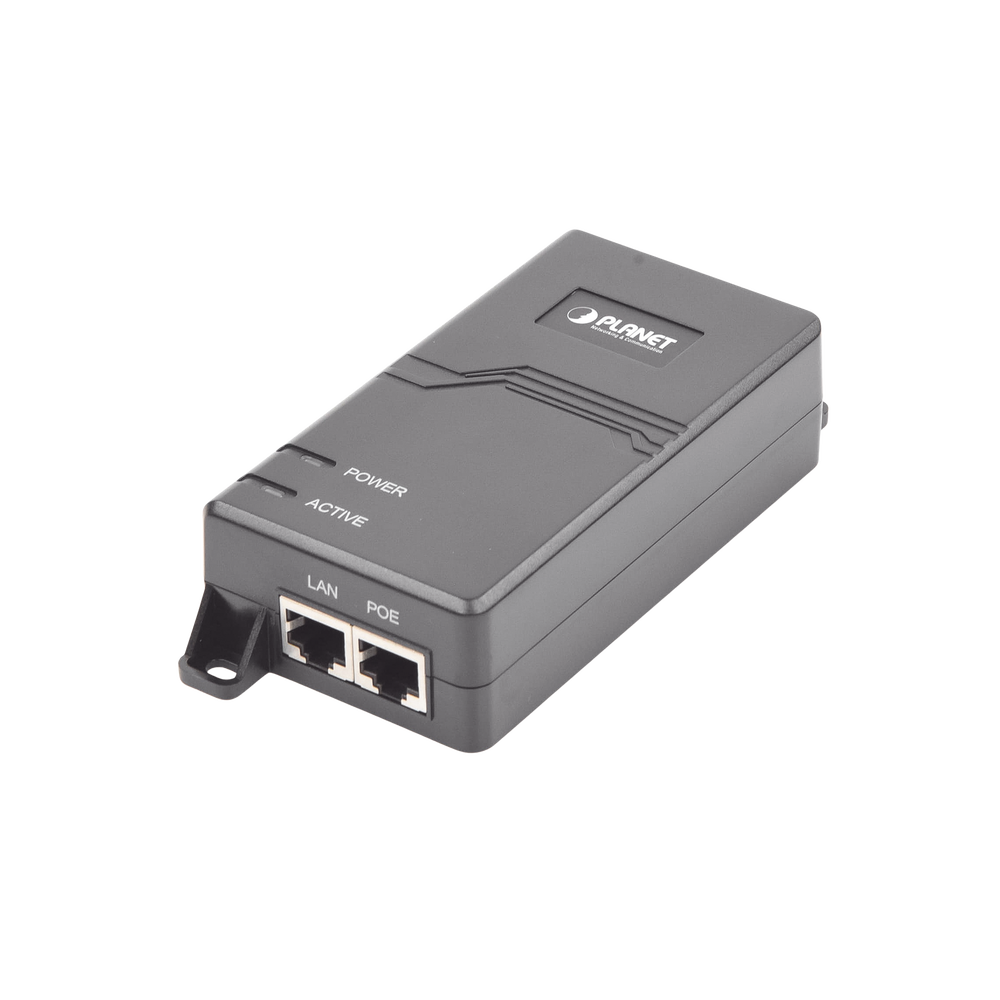

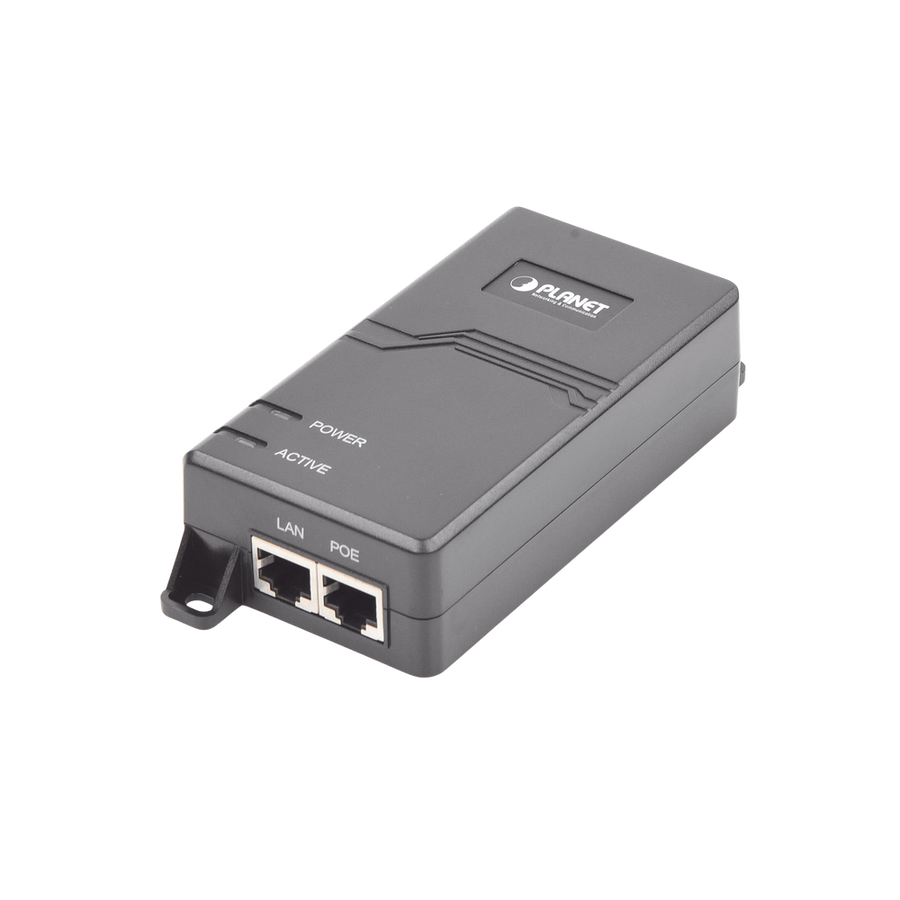

Planet POE-163 IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-span)

PLANET

Planet POE-163 IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-span)

Product identifier
SKU POE-163
$43.95
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Connecting to IEEE 802.3at/af Compliant Devices
Installation of IEEE 802.3at Injector and Splitter
Extended Installation of the IEEE 802.3at Injector and PoE
Hardware Specifications
Interface

1 input port RJ45 STP (data).

1 output port RJ45 STP PoE (data + power supply).

1 input for alternating current
Network Cable 10BASE-T: Cat. UTP de 2 pairs. 3, 4, 5, up to 100 m (328 feet)
100BASE-TX: 2 pares UTP Cat. 3, 4, 5, up to 100 m (328 feet)
1000BASE-T: 2 pairs UTP Cat. 5, 5e, 6 up to 100 m (328 feet)
EIA/TIA-568 100 ohms STP (100 m)
Data rate 10/100/1000 Mbps
Dimensions (WxDxH) 4.5 x 2.46 x 1.2 in / 11.5 x 6.25 x 3.1cm
Weight 0.14 lbs / .185 kg
Unit voltage output 50-54 Vcc, 0,6 A
Power requirements 100-240 Vac, 50/60 Hz, 0,75 A
Power consumption 30 Watts max.
Number of Devices that can be powered
 		1
Operating temperature 0 ~ 50 degrees C
Storage temperature -10 ~ 70 degrees C
Operating humidity 5 ~ 95 %, relative humidity, non-condensing
Standard PoE IEEE 802.3at Power supply through Ethernet Plus/PSE
PoE Output 50-54 Vcc /30 Watts
Power supply type PoE Mid-span
Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at High power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Package includes:

- POE-163

- User manual

- AC power cable

Key Features

  • Compatible With Both IEEE 802.3at and 802.3af Powered Devices
  • Gigabit Ethernet Speed Support up to 1000 Mbps
  • 50-54 VDC PoE Output at 0.6 A Maximum Current
  • Universal 100-240 VAC Input With 50/60 Hz Operation
  • Supports Network Distances up to 328 ft Over Cat 5/6 Cable
  • Compact Design Measuring 4.5 x 2.5 x 1.2 in for Space-Saving Installation
