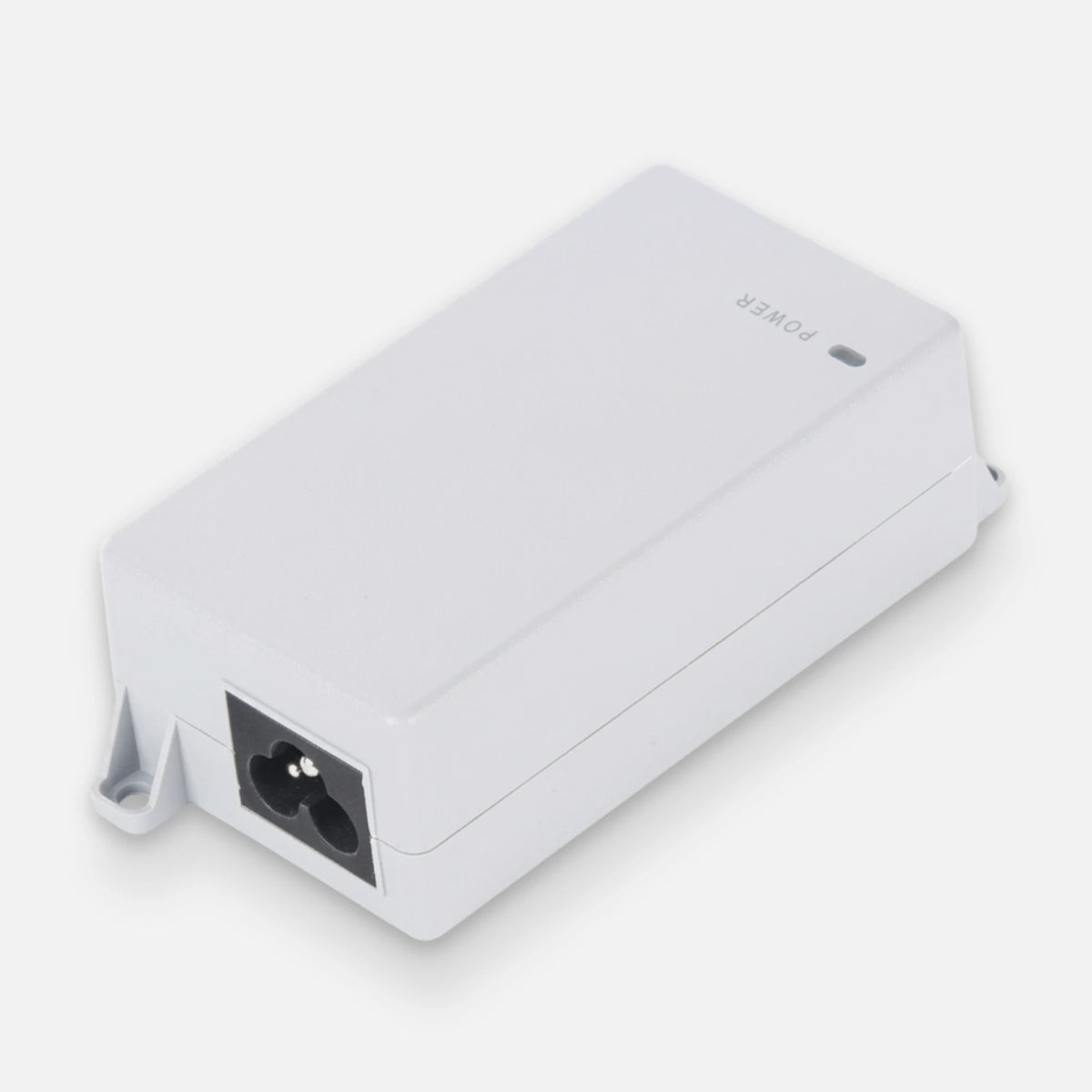

Mimosa POE24V Passive Gigabit PoE Wall Injector for C5x Output voltage 24Vdc

The Mimosa POE24V is a passive Gigabit Power-over-Ethernet wall injector purpose-built for Mimosa fixed-wireless radios that require 24 V DC power delivery. It accepts a universal 100–240 V AC input at 50/60 Hz, making it drop-in ready across all North American and international mains voltages without an adapter, and delivers 24 V DC at 0.5 A over the PoE data port. Two shielded RJ45 Gigabit ports — one toward the LAN switch and one toward the powered device — pass throughput at full Gigabit rates so the injector never becomes a bottleneck for the high-throughput radios it feeds. The compact wall-plug form factor mounts directly to a standard outlet, eliminating power strips and extension cords for a clean, professional installation. Power is injected on pins 3/6 (+24 VDC) with return on pins 1/2, using a passive (non-IEEE-802.3af/at) scheme matched to Mimosa's C5x, C5c, and A5x platforms. The AC power cord (PCC53) is sold separately, allowing country-specific plug configurations.

Key features & benefits

• 24 V DC Passive PoE Output — Delivers 24 V DC at 0.5 A via passive PoE — precisely matched to the power requirements of the Mimosa C5x, C5c, and A5x radio platforms. Non-IEEE passive injection avoids 802.3af/at negotiation overhead.
• Universal 100–240 V AC Input, 50/60 Hz — Accepts the full global mains voltage range, making the POE24V deploy-ready worldwide without voltage selectors or step-down transformers.
• Dual Gigabit RJ45 Ports — One LAN port connects to the upstream switch; one PoE port connects to the Mimosa radio. Full Gigabit throughput is maintained so the injector introduces no speed bottleneck.
• Defined Passive PoE Pin-out — Power is injected on pins 3/6 (+24 VDC) with GND return on pins 1/2, consistent with Mimosa's passive 24 V pin-out specification and ensuring compatibility with supported radio models.
• Compact Wall-Mount Design — Plugs directly into a standard wall outlet, eliminating power strips and extension cords and leaving behind a tidy, professional-grade installation environment.
• Separate Country-Specific AC Cord (PCC53) — The AC power cable (PCC53, 1.8 m, 3-pin with ground) is sold separately, enabling the same injector body to be deployed with the appropriate regional plug type — a practical advantage for multi-market WISP operations.
