MIMOSA

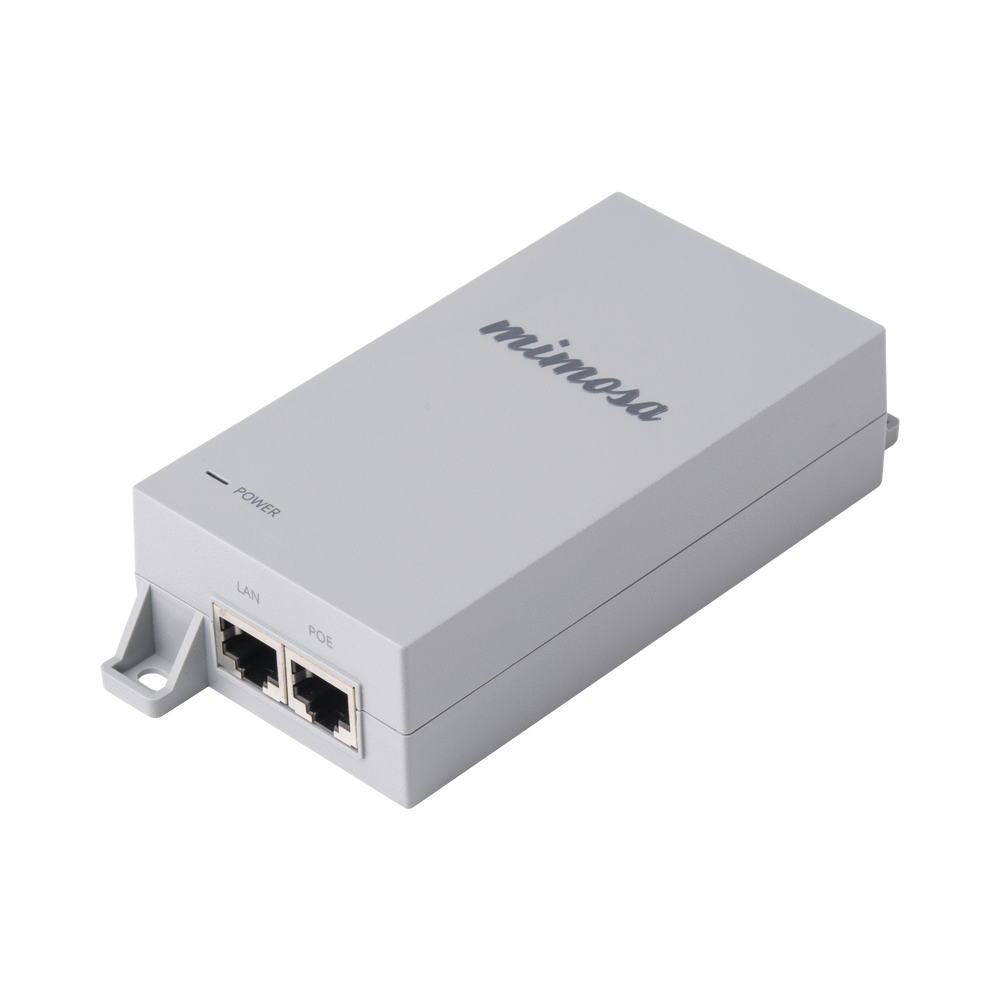

Mimosa POE50V 50V Passive PoE Injector for B5 B11 A5 Networks
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The Mimosa Gigabit 50V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.
-Passive PoE injector for B5, B5C, B11, A5-18, A5-14 & A5c by Mimosa Networks.
-Input voltage: 100 - 240 Vdc, 1.5 A, 50 - 60 Hz.
-Output voltage: 50 Vdc, 1.2 A.
-Pins 3/6 and 4/5: +50 Vdc.
-Pins 1/2 and 7/8: GND.
-Dimensions: 2.6 x 1.4 x 6.4" (65 x 36 x 163 mm)
-Weight: 14.4 oz (0.4 Kg)
It does not include alternating current cable.
Key Features
- Universal 100-240 VAC Input for Worldwide Compatibility
- 50 VDC 1.2 A Output Optimized for Mimosa Network Devices
- Supports Pins 1/2 and 4/5 With +50 VDC Power Delivery
- Compact 2.6 x 1.4 x 6.4 in Design for Space-Saving Installation
- Lightweight 0.9 lb Construction for Easy Deployment
- Built-in Overcurrent and Overvoltage Protection for Safety
