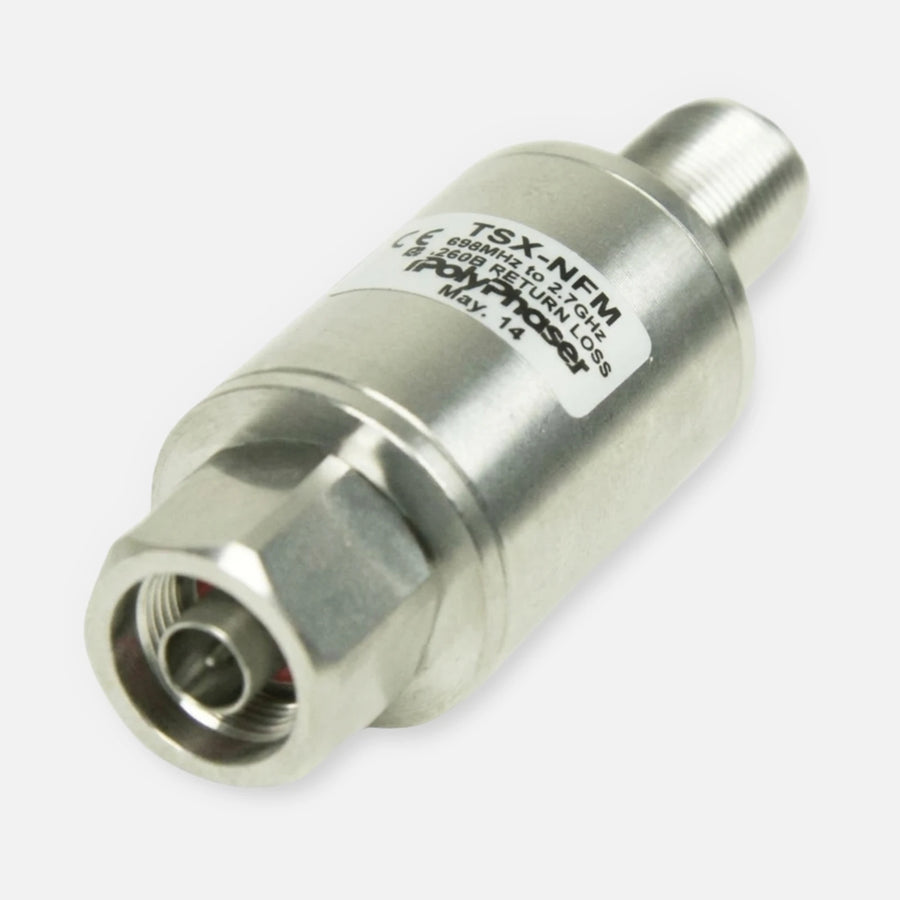

PolyPhaser TSX-NFM Low PIM Coaxial RF Surge Protector 698-2700 MHz 40kA
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Bi-directional coaxial RF surge protector featuring low PIM performance, DC block protection, and bulkhead mounting. Designed for weather-resistant installation with high surge current handling capability.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• Bi-directional operation
• Low PIM DC block design
• Patented coil inductor surge protection design
• Maximum surge current rating of 40kA
• Bulkhead mount configuration
• Weatherproof when properly installed
• CE compliant
• RoHS compliant
• Designed for RF coaxial line protection
• Low insertion loss performance
TECHNICAL SPECIFICATIONS
• Model: TSX-NFM
• Brand: PolyPhaser
• Mount Type: Bulkhead Mount
• Operation: Bi-Directional
• Surge Current Rating: 40kA Maximum
• Frequency Range: 698 MHz to 2.7 GHz
• Return Loss: -26 dB
• Insertion Loss: ≤ 0.1 dB
• Compliance Standards: CE, RoHS
• Design Type: Low PIM DC Block Coaxial RF Surge Protector
