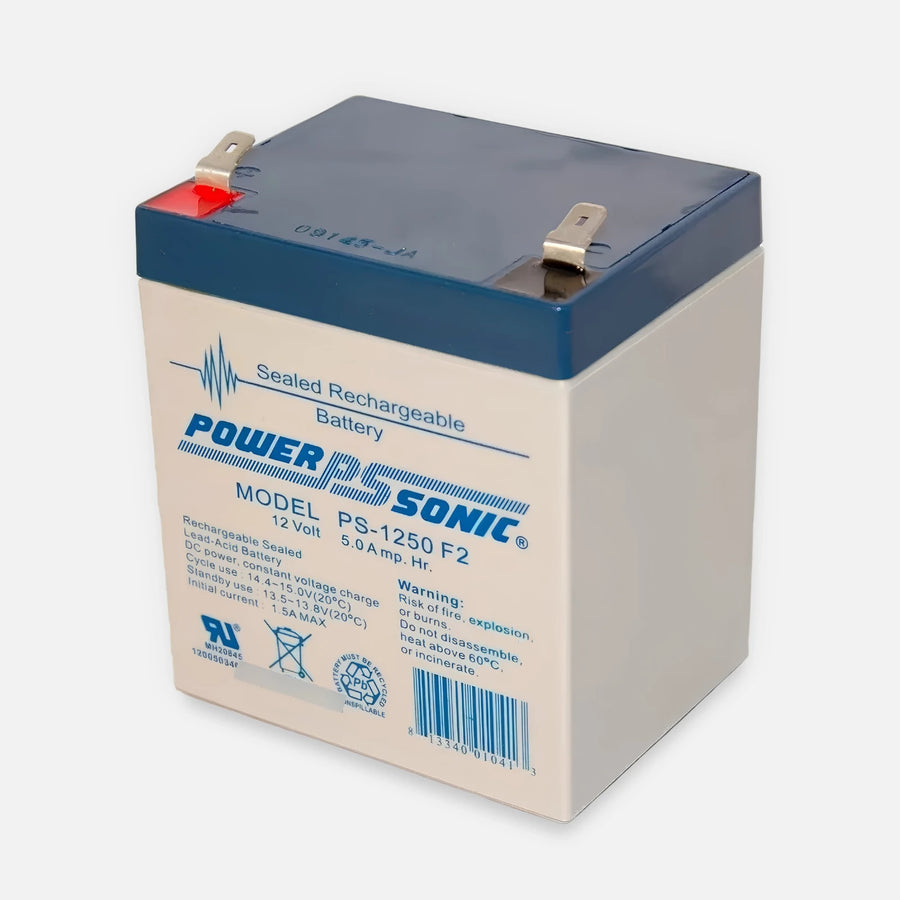

Power Sonic PS-1250-F2 12V 5.0Ah Surveillance Battery F1 Faston

PRODUCT OVERVIEW

Power Sonic PS-1250 F2 is a 12V 5.0Ah rechargeable sealed lead acid battery featuring AGM technology, valve-regulated maintenance-free construction, and F2 quick-disconnect terminals.

PRODUCT TYPE

Surveillance Accessories

KEY FEATURES

• Rechargeable sealed lead acid battery
• Absorbent Glass Mat (AGM) technology
• Valve-regulated, maintenance-free construction
• Spill-proof VRLA design
• Gas recombination technology
• Rugged vibration- and impact-resistant ABS case
• 12.0V nominal voltage
• 5.0Ah nominal capacity at 20-hour rate
• F2 FASTON quick-disconnect terminals

TECHNICAL SPECIFICATIONS

• Brand: Power Sonic
• Model: PS-1250
• Configuration: PS-1250 F2
• Battery Type: Rechargeable Sealed Lead Acid (SLA/VRLA)
• Technology: Absorbent Glass Mat (AGM)
• Nominal Voltage: 12.0V, 6 cells
• Nominal Capacity: 5.0Ah at 20-hour rate
• 10-Hour Capacity: 4.65Ah
• 5-Hour Capacity: 4.3Ah
• 1-Hour Capacity: 2.96Ah
• Stored Energy: 60Wh
• Terminal: F2 FASTON quick-disconnect
• F2 Terminal Size: 0.250 x 0.032 in
• Internal Resistance: Approximately 48 mΩ
• Maximum Continuous Discharge Current: 50A
• Short Circuit Current: 140A
• Cycle Constant Voltage Range: 14.10–14.40V
• Float Constant Voltage Range: 13.50–13.80V
• Initial Charging Current: 1.5A
• Case Material: ABS, UL94 HB or V-0 optional
• Length: 3.54 in (90.0 mm)
• Width: 2.76 in (70.0 mm)
• Height: 3.98 in (101.0 mm)
• Height Over Terminal: 4.21 in (107.0 mm)
• Approximate Weight: 3.06 lb (1.39 kg)
• Recommended Power Sonic Charger: PSC-12500ACX

INTENDED USE / APPLICATIONS

Manufacturer identifies the PS-1250 series for general-purpose float and light cyclic applications, including:
• Fire and security systems
• Emergency lighting
• UPS systems
• Medical devices
• Telecommunications
• Signaling applications
• Solar and wind applications
• General-purpose standby applications
