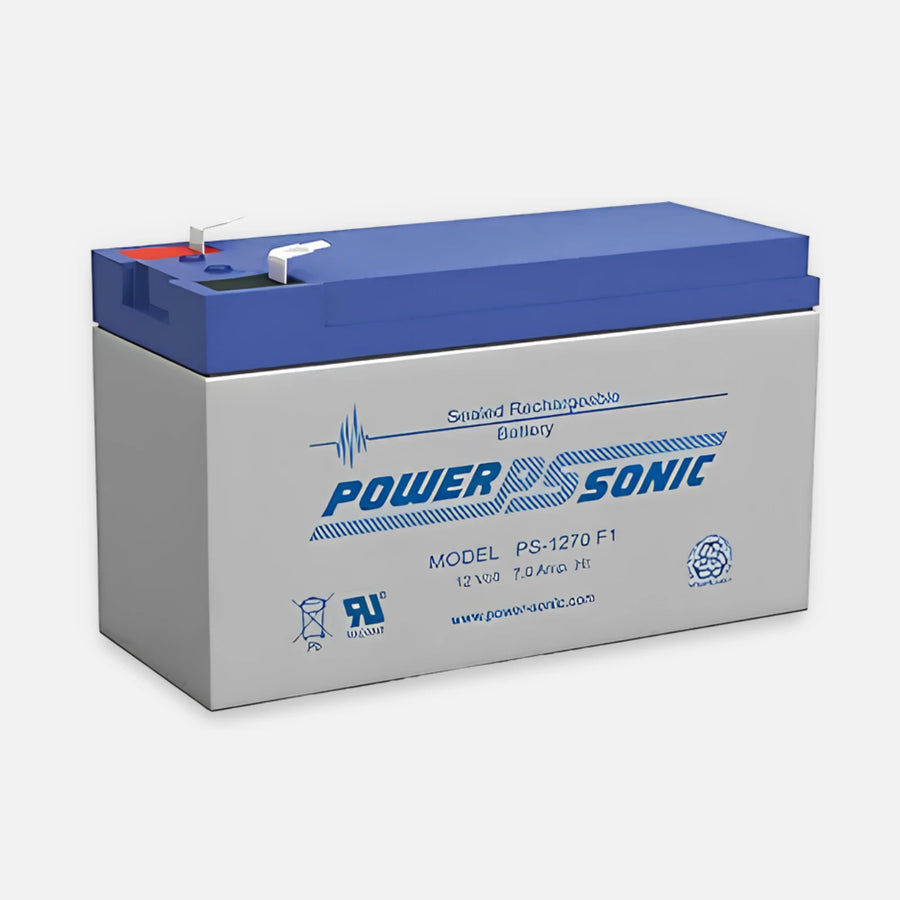

Power Sonic PS-1270 F1 12 V 7.0 Ah Sealed Lead Acid AGM Battery
- Part number / SKU
- PS-1270-F1
- 7.0 Ah, 20 hr
Works with: PSC-12800A charger, PSC-12800A-C charger Confirmed by the manufacturer
$30.99
In stock
- Warranty
- Manufacturer warranty
Free Economy shipping available at checkout
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Keeps your radios in service
-
Rated at four rates
7.0, 6.5, 6.0 and 4.5 Ah at 20, 10, 5 and 1 hours.
-
Any position
valve-regulated, spill-proof AGM construction.
-
Standby rated
5 year design life in float service at 68 F.
-
Listed component
UL recognized under file MH 20845.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | PS-1270-F1 |
| General | |
| Brand | Power Sonic |
| Series | PS Series General Purpose |
| Model | PS-1270 F1 |
| Battery Type | Rechargeable sealed lead acid, AGM, valve regulated, spill-proof |
| Terminal Type | F1 quick-disconnect tabs, 0.187 x 0.032 in, mate with FASTON 187 series |
| Design Life | 5 years in float service at 68 F (20 C) |
| Electrical | |
| Nominal Voltage | 12 V (6 cells) |
| Capacity | 7.0 Ah, 20 hr |
| Capacity Detail | 6.5 Ah (10 hr); 6.0 Ah (5 hr); 4.5 Ah (1 hr) |
| Internal Resistance | Approx. 23 milliohm |
| Max Discharge Current | 21.0 A (7 min); 70.0 A (10 s) |
| Float Charge Voltage | 13.5 to 13.8 V |
| Cycle Charge | Initial current limit 2.1 A; charge to 14.4 to 14.7 V at 20 C |
| Physical | |
| Width | 2.56 in (65 mm) |
| Height | 3.70 in (94 mm) |
| Height Over Terminals | 3.86 in (98 mm) |
| Weight | Approx. 4.8 lb (2.18 kg) |
| Case Material | ABS, UL94-HB |
| Environmental | |
| Charge Temperature | -4 to 122 F (-20 to 50 C) |
| Discharge Temperature | -40 to 140 F (-40 to 60 C) |
| Listings and Approvals | |
| Agency Approvals | UL recognized, file MH 20845 |
| Standards | Approved for air transport (D.O.T., IATA, FAA, CAB) |
