Precision PST-2530-15A Steel Cabinet Single Door Wall Mount Enclosure Outdoor

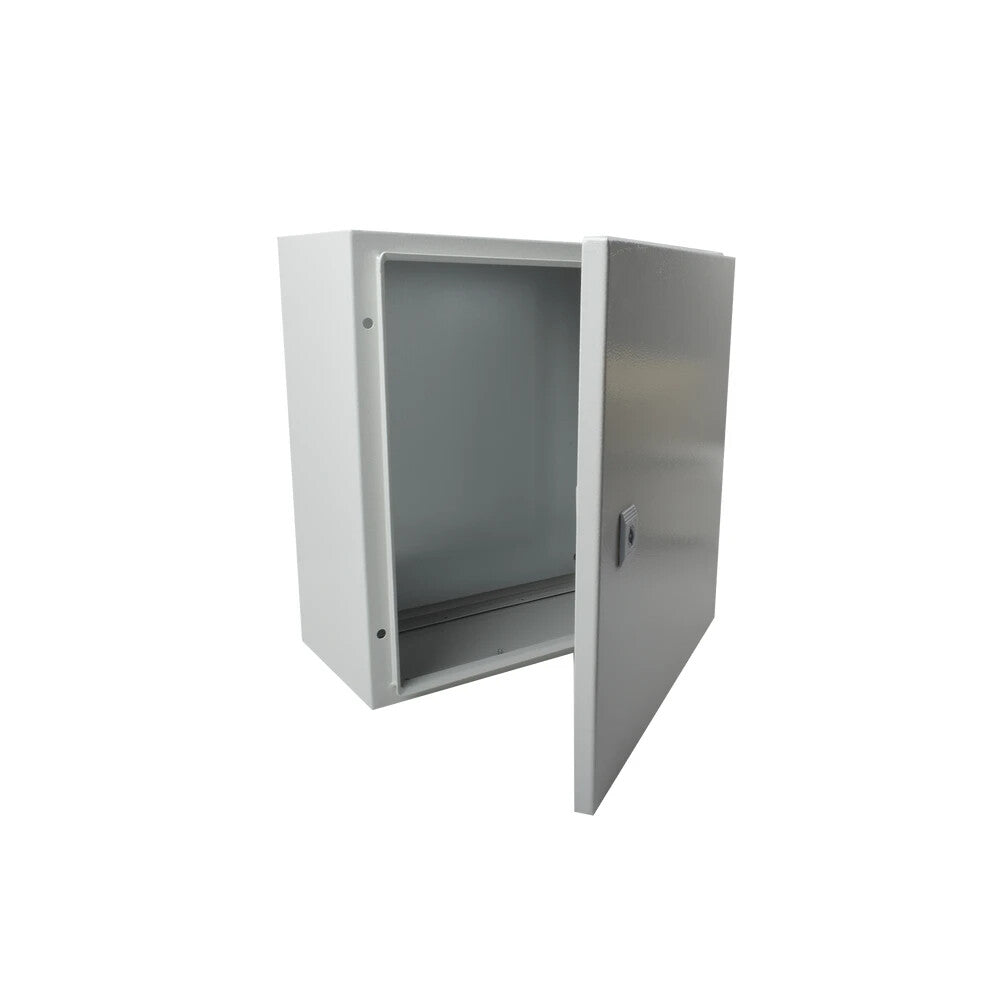

The Precision PST-2530-15A is a single-door, wall-mount steel enclosure engineered for outdoor deployments where equipment protection against weather, dust, and physical impact is critical. Rated IP66 and IK10, this cabinet shields sensitive network and electrical components from water ingress and mechanical shock in exposed environments such as towers, posts, and exterior walls. The powder polyester paint finish provides durable corrosion resistance, while the included galvanized steel backplate gives installers a solid, organized mounting surface for equipment assembly. A lockable door with included key set (PSTK2L and PSTK2K) deters unauthorized access. The removable bottom cover accommodates gland-type cable entries, maintaining the enclosure's ingress protection rating at the point of cable penetration. Typical applications include housing PoE injectors, surge protectors, fuses, electrical distribution boards, and battery storage in outdoor infrastructure deployments.

Key features & benefits

• IP66 Weather Protection — Certified IP66, this enclosure is sealed against powerful water jets and total dust ingress, making it suitable for exposed outdoor installations on towers, poles, and building exteriors.
• IK10 Impact Resistance — Rated IK10, the highest standard impact resistance classification, the steel body withstands significant mechanical impact, protecting critical equipment in demanding field environments.

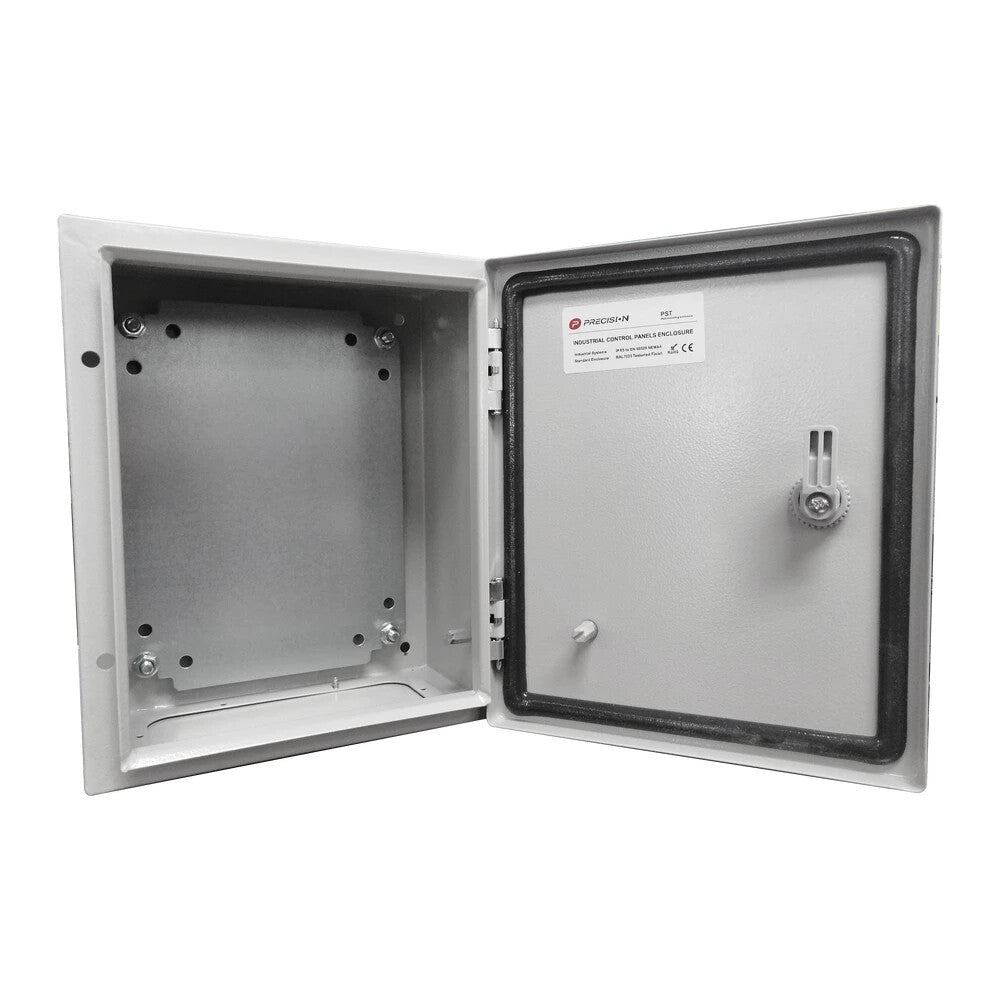

• Galvanized Steel Backplate — The included 1.5 mm thick galvanized steel backplate (200 x 265 mm) provides a rigid, corrosion-resistant mounting surface for organized equipment assembly inside the enclosure.
• Secure Locking System — A keyed security lock (compatible with PSTK2L and PSTK2K key sets) is included with the enclosure, providing physical access control to installed equipment.
• Gland-Ready Bottom Cover — The removable bottom cover is designed to accept gland-type cable connectors, enabling sealed, weatherproof wire entry and exit while preserving the cabinet's ingress protection rating.
• Powder Polyester Finish — The powder polyester base coat provides a resilient, UV- and corrosion-resistant surface finish suited for long-term outdoor exposure without significant degradation.
• Fan Ventilation Ready — The enclosure supports optional fan ventilation upgrades. Manual penetrations can be made to accommodate the PST-BC-V60 vent covers and the FAN-602512 60 x 60 mm fan (both sold separately), enabling active heat dissipation for thermally demanding equipment loads.
