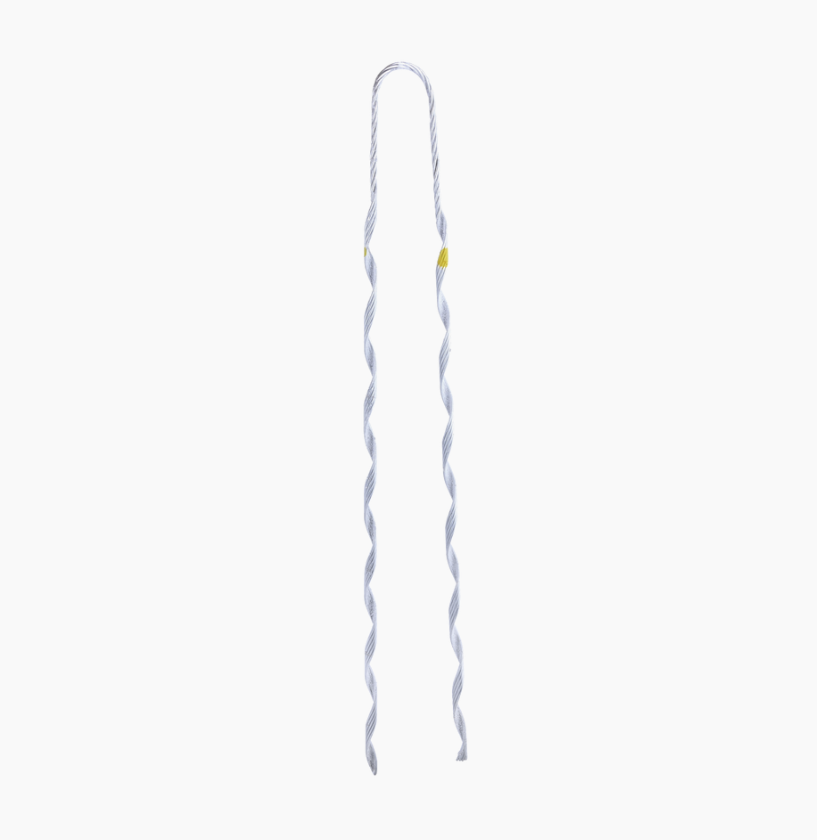

Linkedpro LP-PDEG-200-10-11 Preformed Dead End Grip for ADSS Fiber Span 200 meter 10-11 mm

The Linkedpro LP-PDEG-200-10-11 is a preformed dead end grip engineered for securing All-Dielectric Self-Supporting (ADSS) fiber optic cables at anchor points along aerial spans. Constructed from aluminum clad steel, this dead end grip delivers the mechanical holding strength required to terminate and tension ADSS cables without concentrating stress on the cable jacket or internal fiber elements. Conforming to IEC60794 standards, it is suited for outside plant deployments where long-term aerial performance and installation reliability are critical. The uneven leg design simplifies field installation, and a color-coded marking system clearly identifies the correct starting point for wrapping, reducing the risk of improper application by technicians in the field.

Key features & benefits

• Aluminum Clad Steel Construction — The grip is manufactured from aluminum clad steel, providing a combination of corrosion resistance and mechanical tensile strength appropriate for long-term outdoor aerial installations.
• IEC60794 Standard Compliance — Manufactured to the IEC60794 standard, ensuring consistent performance and quality expectations aligned with internationally recognized specifications for fiber optic cable hardware.
• Designed for 10–11 mm ADSS Cable Diameter — Precisely sized to grip ADSS optical cables with outer diameters between 10 and 11 mm, ensuring a secure and evenly distributed hold that protects cable integrity over the full service life.
• Maximum 200-Meter Span Rating — Rated for aerial spans up to 200 meters, making it suitable for medium-span outside plant deployments between poles or structures.
• Color Code Marking for Correct Application — An integrated color-coded marker indicates the precise starting point for wrapping the grip, helping field technicians apply the product correctly and consistently every time.
• Uneven Leg Design for Ease of Installation — The uneven leg configuration allows technicians to quickly identify and begin the wrapping sequence, streamlining installation and reducing overall time on the pole or structure.
• 20-Year Useful Service Life — Engineered for a useful lifetime of 20 years, supporting the long-term return on investment expected from permanent aerial fiber infrastructure.
• 762 mm (30") Grip Length — The 762 mm overall length distributes cable holding forces over an extended contact area, minimizing localized stress and protecting the ADSS cable sheath.
