ACCESSPRO

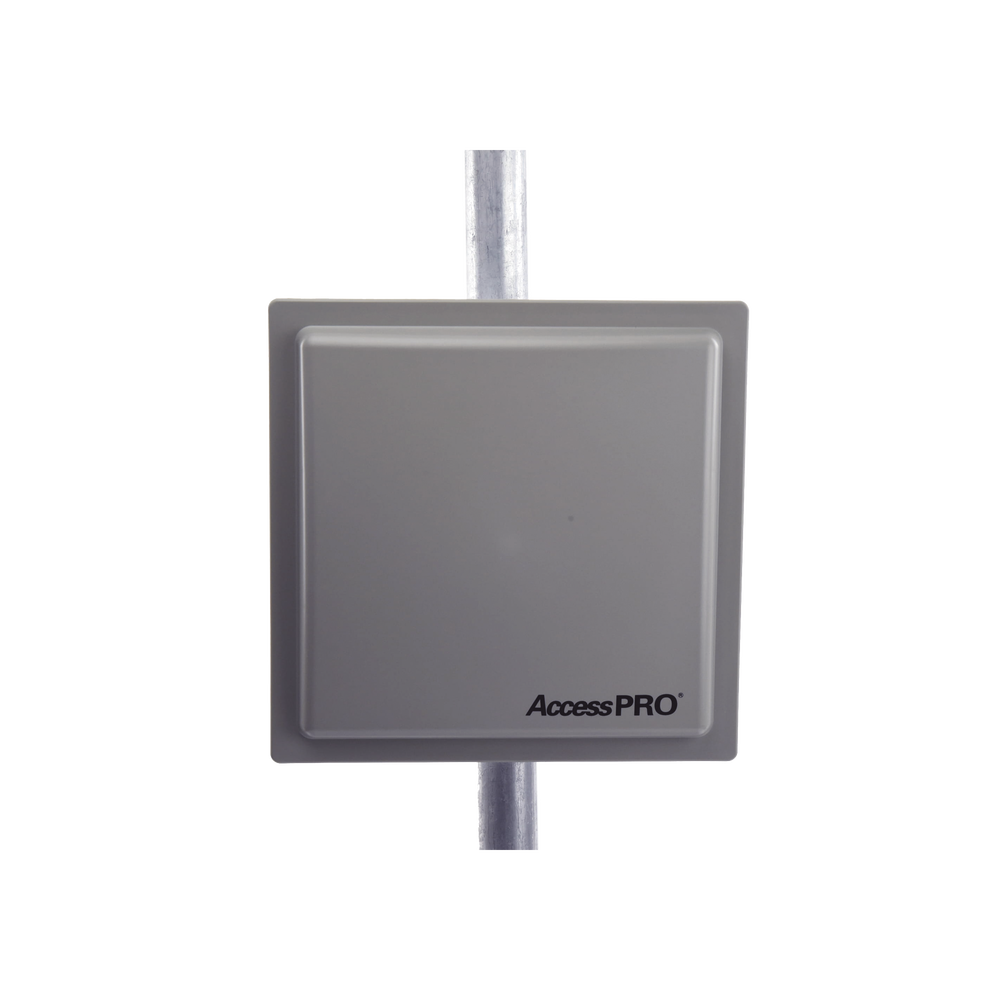

Accesspro PRO-12RF UHF RFID Access Control Reader 40ft Range 902-928MHz
Product identifier
SKU
PRO-12RF
$472.86
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Long Range proximity reader RFID (UHF)
Ideal for parking lots, residential complexes, corporations and any area with vehicular traffic
Specifications:
- Operating frequency: 902 - 928 MHz
- Operation mode: FHSS
- Protocol EPC C1 GEN2
- Up to 40 ft lineal range*
- Only compatible with and cards
- 26 bits Wiegand interface
- Programmable power: 0 - 30Dbm
- Integrated antenna: 12 dBi
- Operating temperature: -20 to 80 ºC
- Power supply: 12Vcc, 2.5 A (included)
- Dimensions: 17.32 x 17.32 x 1.97” in (44 x 44 x 5 cm)
- Weight: 4.41lb (2 kg)
Requires Access controller. Compatible with ROSSLARE, HIVISION, SUPREMA and EhubAmerica AcessPRO Series or any other system that supports Wiegand 26 bits interface.
Notes:
*Distance can vary according to site conditions.
*It’s important to calibrate before installation, other installed Tags on the vehicle can interfere with the reading (Take this into consideration).
Key Features
- FHSS Technology for Reliable Operation in Crowded RF Environments
- EPC C1 Gen2 Protocol Compatibility for Vehicle Identification Systems
- Programmable RF Power Output From 0 to 30 dBm for Optimal Performance
- Wide Operating Temperature Range From -4°F to 176°F
- TCP/IP Communication for Network Integration and Remote Management
- Robust Metal Housing Designed for Harsh Outdoor Environments
