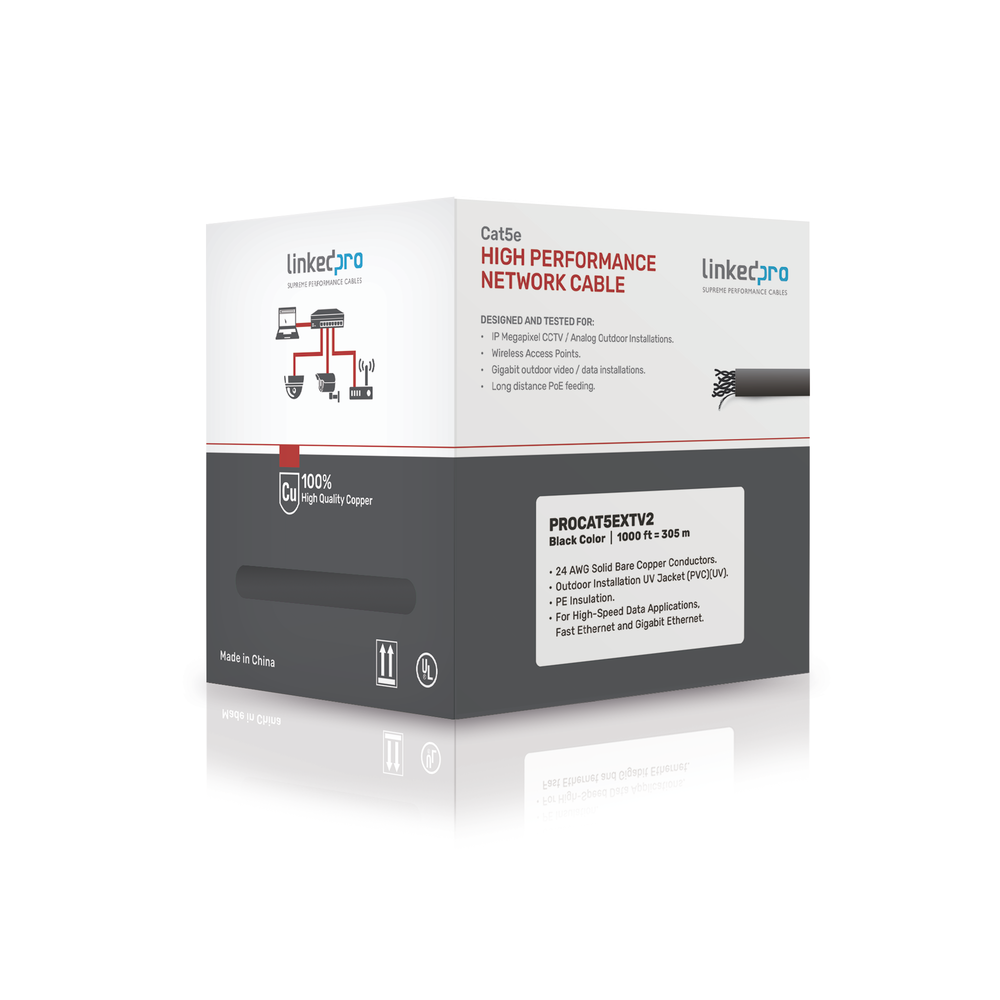

Linkedpro PRO-CAT-5-EXT-V2 Cat5e FTP Outdoor Ethernet Cable 1000ft Gigabit PoE
Product identifier
SKU
PRO-CAT-5-EXT-V2
$135.00
Out of stock
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRO-CAT-5-EXT-V2
24 AWG Bare Copper Cat 5e FTP Outdoor Cable - 1000 ft
The ultimate solution for outdoor installations requiring exposure to the elements, guaranteeing Full Gigabit communications in extreme conditions with high-quality shielding and UV protection.
Features
- IP Megapixel CCTV and outdoor video installations.
- Full Gigabit support in extreme environments.
- Long-distance PoE power supply.
- Shielding with aluminum tape and copper drain wire.
- Black jacket with CMX rating and UV resistance.
Technical Data
- Conductor: 100% Solid Bare Copper (24 AWG).
- Shielding: Aluminum Foil + Drain Wire.
- Bending Radius: 1" (no load) / 2" (with load).
- Frequency: 100 MHz (Tested up to 300 MHz).
- Operating Temp: -4°F to 140°F (-20°C to +60°C).
- Installation Temp: 32°F to 122°F (0°C to +50°C).
Certifications
- UL Listed (E488955).
- ANSI EIA/TIA 568 0.2.
- ISO/IEC 11801 2nd Edition.
- IEEE 802.3at (PoE+).
- Flame Resistance: IEC 60332-1.
- CMX / CM Ratings.
Key Features
- 100% Solid Copper Conductors for Maximum Signal Integrity
- FTP Shielded Construction Reduces EMI and RFI Interference
- UV Resistant Outdoor Rated CMX Jacket for Direct Burial
- Supports Gigabit Ethernet Speeds up to 1000 Mbps
- Optimized for Long Distance Power over Ethernet Applications
- 100 MHz Frequency Rating for High-Speed Data Transmission
