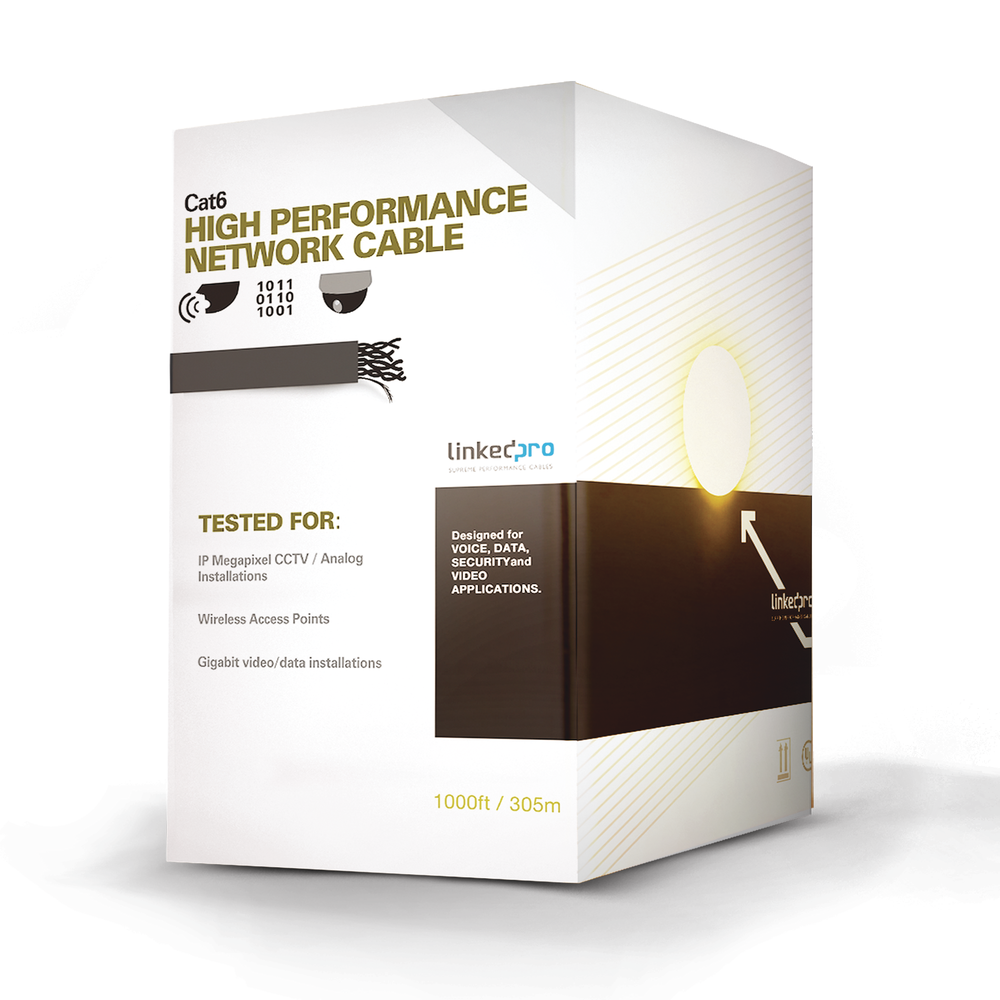

Linkedpro PRO-CAT-6-GELX Cat6 UTP Jelly-Filled Outdoor Cable 23AWG 1000ft
Product identifier
SKU
PRO-CAT-6-GELX
$436.83
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRO-CAT-6-GELX SUPREME PERFORMANCE
Industrial-Grade Cat6 UTP • Jelly-Filled Outdoor Solution • 23 AWG Bare Copper
1000 ft (305 m) Heavy-Duty Wooden Drum
Why Choose PROCAT6GELX?
- Waterproof Protection: Jelly compound filling prevents water penetration and moisture migration.
- Pure Performance: 100% Solid Bare Copper (AWG 23) for superior conductivity.
- Rugged Durability: Dual-layer protection with Grey PVC inner sheath and Black UV-rated LDPE outer sheath.
- Advanced Engineering: Internal cross-separator reduces crosstalk for high-speed aggregate throughput.
Technical Specifications
| Gauge: | 23 AWG Solid Copper |
| Outer Diameter: | 0.30" (7.6 mm) |
| Frequency: | Tested up to 400 MHz |
| Voltage: | 1000 V Test Voltage |
| Temp Range: | -40°F to +158°F |
Applications & Compliance
- IP CCTV: Ideal for Megapixel/Analog installations.
- PoE Feeding: Supports IEEE 802.3at for long distances.
- Standards: ANSI/TIA 568 C.2, ISO/IEC 11801.
- Rating: UL Listed (E472815) & UV Rated.
- Environment: IP-rated moisture resistant.
✅
Fluke Networks Certified - PASS
Verified performance with a 7.3 dB NEXT Headroom margin. Compliant with TIA Cat 6 Permanent Link standards.
Product Support & Installation
Compatible with and connectors.
* Unit of measure: 1000 ft Wooden Drum (305m). Temperature operating range: -40°F to +158°F (-40°C to +70°C).
Key Features
- Double Jacket With Gel Filling for Extreme Outdoor Conditions
- Pure Copper Conductors for Maximum Signal Integrity
- Supports Gigabit Ethernet and High-Speed IP Networks
- ETL and UL Certified to ANSI/TIA 568-C.2 Standards
- UV Resistant for Long-Term Outdoor Exposure
- Ideal for IP Surveillance Systems and LAN Installations
