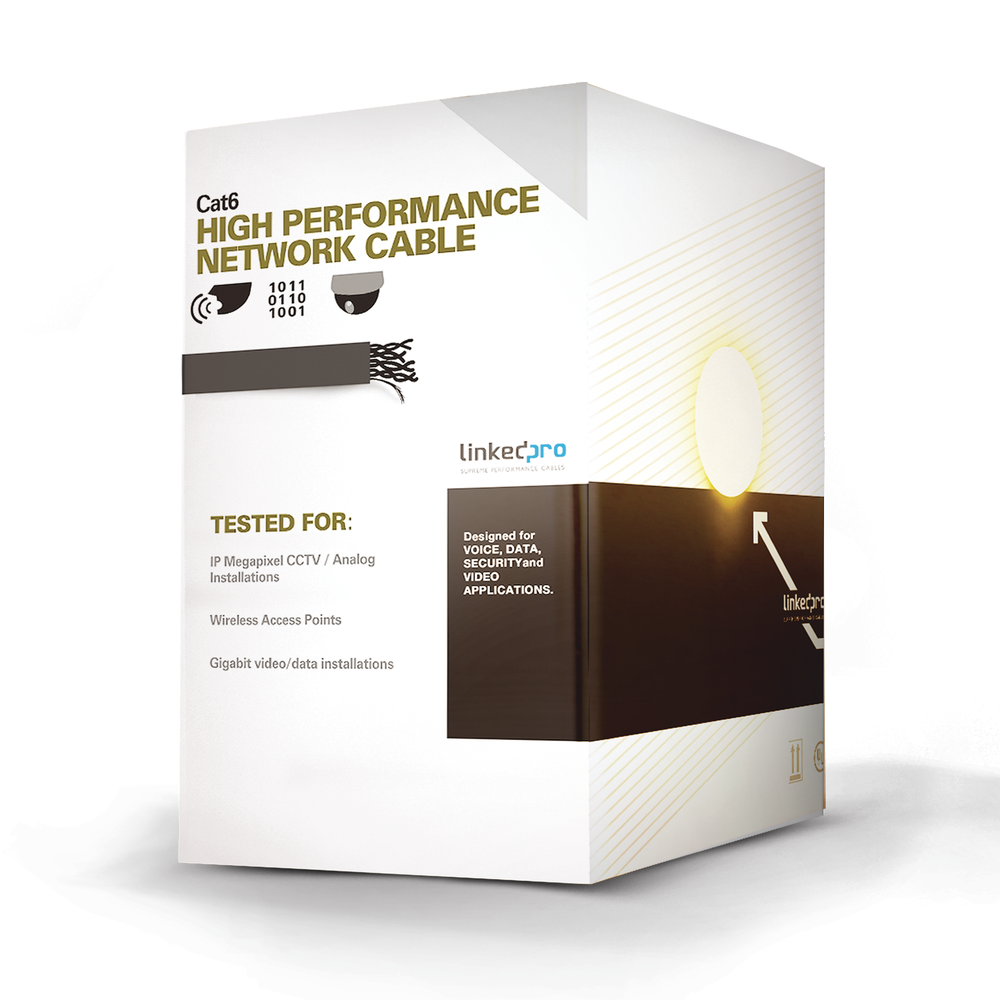

Linkedpro PRO-CAT-6B Cat6 UTP Ethernet Cable 250MHz 1000ft Gigabit
Product identifier
SKU
PRO-CAT-6B
$110.24
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
ISO • ROHS COMPLIANT • SUPREME PERFORMANCE
PRO-CAT-6B SUPREME SERIES
High-Performance Category 6 UTP • 23 AWG Copper Clad Aluminum • 250 MHz
1000 ft (305 m) Easy-Pull Box
Why Choose PRO-CAT-6B?
- CCTV Optimization: Specifically designed for IP Megapixel and high-resolution Analog installations.
- Reliable Data Flow: Supports Gigabit video and data applications for modern business networks.
- High-Speed Infrastructure: Optimized for Wireless Access Points and high-speed Local Area Networks.
- Superior Engineering: Features 4-pair cable lay up with high-density Polyethylene insulation.
Construction Details
| Conductor: | 23 AWG CCA-Magnesium |
| Outer Diameter: | 0.24" (6.1 mm) |
| Frequency: | Tested to 250 MHz |
| Jacket Material: | PVC Black CMX |
| Bending Radius: | 8x Diameter (Installation) |
Electrical & Compliance
- Standards: ANSI EIA/TIA 568 B.2, ISO/IEC 11801.
- Flame Resistance: IEC 60332-1 rated for safety.
- Propagation Speed: Approximately 67% nominal velocity.
- Voltage Rating: 1000 V DC test voltage.
- Operating Range: -4°F to +140°F (-20°C to +60°C).
✅
Fluke Networks Certified - PASS
Verified performance with a 9.0 dB NEXT Headroom margin. Compliant with TIA Cat 6 Channel standards.
Product Support & Performance
Designed for High-Speed Local Area Networks and Wireless Deployments.
* Unit of measure: 1000 ft (305 m) Easy-Pull Box. All specifications based on manufacturer technical documentation.
Key Features
- 23 AWG Gauge for High-Speed Ethernet Performance
- 250 MHz Operating Frequency for Gigabit Networks
- CCA Conductors Provide Cost-Effective Performance
- ANSI/TIA Certified for Secure Network Installations
- 1000 ft Spool for Easy Pulling and Installation
- CMX Rated for Indoor Conduit and Plenum Spaces
