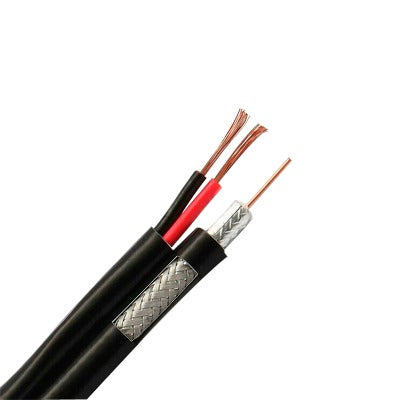

Linkedpro PRO-RG-59V RG59 Siamese Cable 1000ft 95% Braid 18AWG Power
Product identifier
SKU
PRO-RG-59V
$162.36
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Siamese type cable for wiring video signals with 1 conductor 20 AWG CCU 95% braid 18 AWG 2 conductors RG59 Siamese cable.
Applications:
- Video signal transmission and power supply in video surveillance security systems
Features:
- Cable type: Siamese
- Center Conductor: Solid Copper
- Color: Black
- Insulation: Polyethylene foam.
- Electromagnetic shielding: CCU mesh 95% coverage.
- Cover: PVC (Polyvinyl Chloride)
- Impedance: 75 Ohms.
- Includes a pair AWG 18
Operating Temperature:
- -4 to 140°F (-20 to 60 °C)
*Price per reel of 1000ft
Key Features
- 1000 ft Continuous Length for Long-Distance CCTV Installations
- 20 AWG Solid Copper Center Conductor for Superior Video Transmission
- Two 18 AWG Power Conductors for Camera Power Delivery
- 95% Copper Braid Shield Provides Excellent EMI/RFI Protection
- 75 Ohm Impedance Optimized for High-Quality Video Signals
- Operating Temperature Range From -4°F to 140°F
