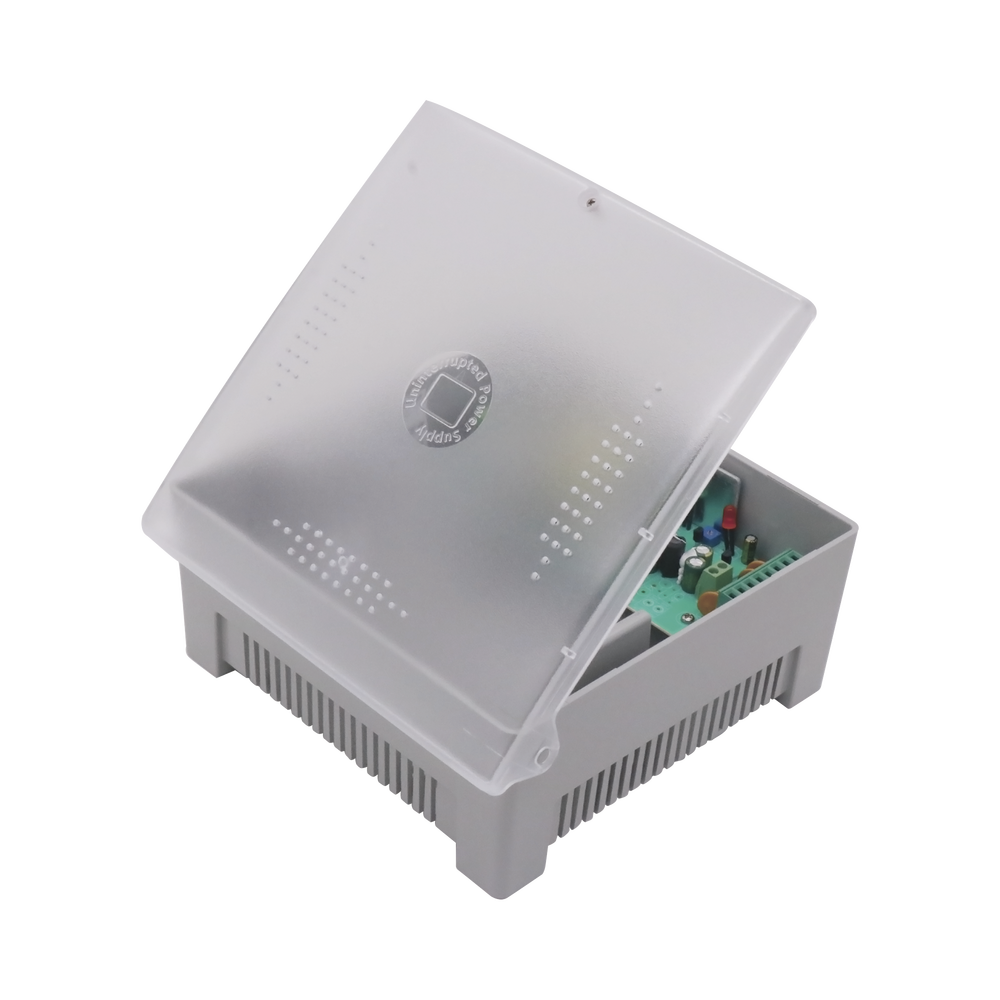

Epcom PS12DC4P 4-Output 60W 12VDC Power Supply 96-264VAC

Introduction:

The conversion efficiency of this model is more than 85%, with output over-current protection, short circuit protection, constant output voltage and etc.

Working Principle:

Under AC 100-240V, power for the load is provided by electric supply. Then led light is green. When power failure is provided by the battery voltage to the load, then led light is red, the system will automatically reset when the mains power returned to normal and ready to be prepared for the next time.

Features:

Input voltage: 96-264Vac 47-63Hz
Input current: 1.5A Max
Output voltage: 11-15VDC
Output current: 5A Max

4 Outputs
Output power: 60W
Output ripple: 120mV
Operating temperature: -20~45°C
Operating humidity: 20%~90%RH, No condensation
Size: L187mm*W193mm*H90mm

Note: This power supply does not include the power cord, recommend the model ACCORDP1.8M

Key Features

• High Conversion Efficiency Exceeding 85% for Energy Savings
• Universal 96-264 VAC Input With 47-63 Hz Frequency Range
• Four Independent 11-15 VDC Outputs at 5 Amps Each
• Built-in Overcurrent and Short Circuit Protection Systems
• Wide Operating Temperature Range From -4°F to 113°F
• Dual-Color LED Status Indicator for Power Monitoring
