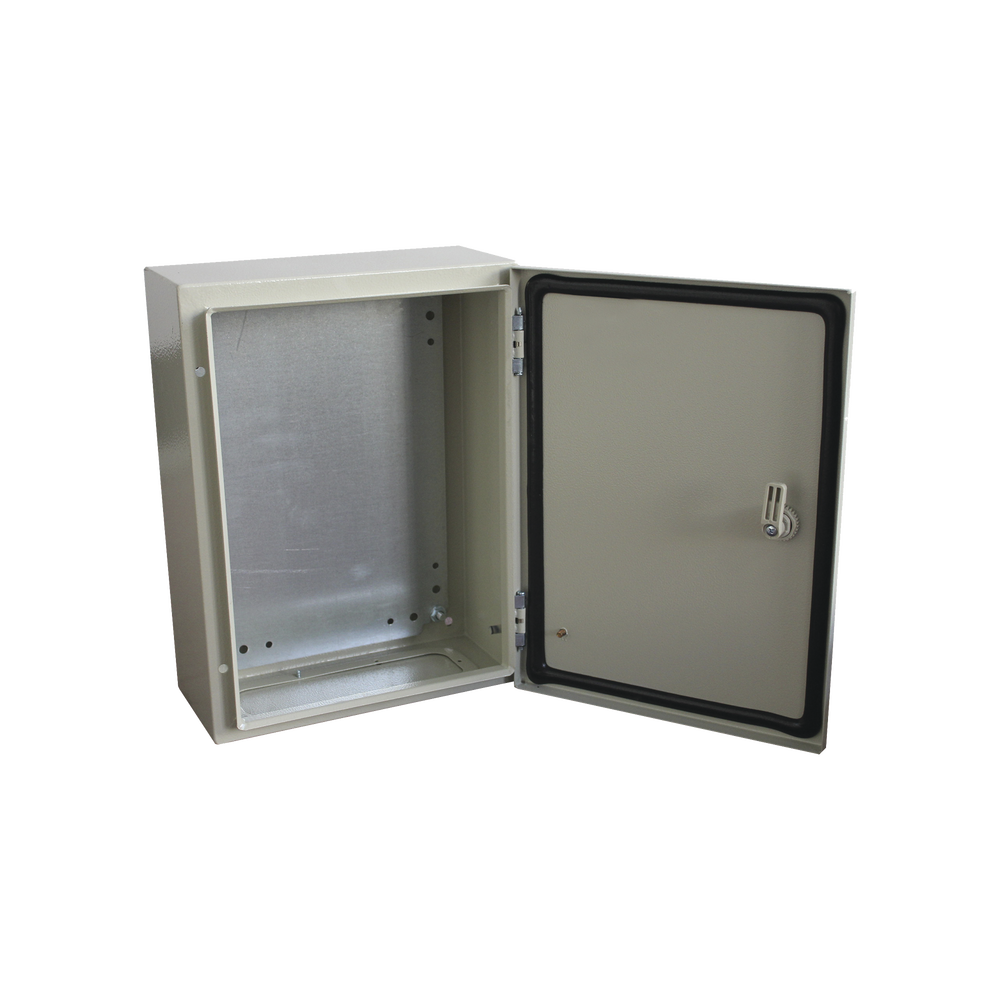

Precision PST-3040-20A IP66 Steel Outdoor Pole Wall Cabinet IK10

Steel cabinet for use in outdoor applications such as poles, telecommunication towers, or walls where there is no protection against rain or excessive dust.

Physical Features:
Material: steel.
Paint: powder polyester base.
Protection level: IP66
Resistance against impacts: IK10
Backplate inner material: galvanized steel thickness 1.5mm
Dimensions: 11.81 x 15.75 x 7.87 in (width x height x depth).

Include:
Steel body and door.
Backplate for equipment assembly. 9.84 x 14.37 in (width x height)
Security lock with key (PSTK2L & PSTK2K)
Bottom cover for the installation of gland type connectors.
Packing

Application:
Installation of PoE's in a tower, post, or wall.
Package storage.
Protection of surge protectors, fuses, or electrical boards.

It is recommended to use gland type connectors for wire output (See models).

Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).

Installing these items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.

Key Features

• Polyester Powder Coated Steel Construction for Maximum Durability
• IP66 Rated for Complete Protection Against Rain and Dust
• IK10 Impact Resistance Withstands Heavy Physical Impacts
• Internal Metal Backplate 10 x 14 in for Equipment Mounting
• Bottom Access Door for Easy Cable Gland Installation
• Includes Security Lock With Key for Access Control
