PRECISION

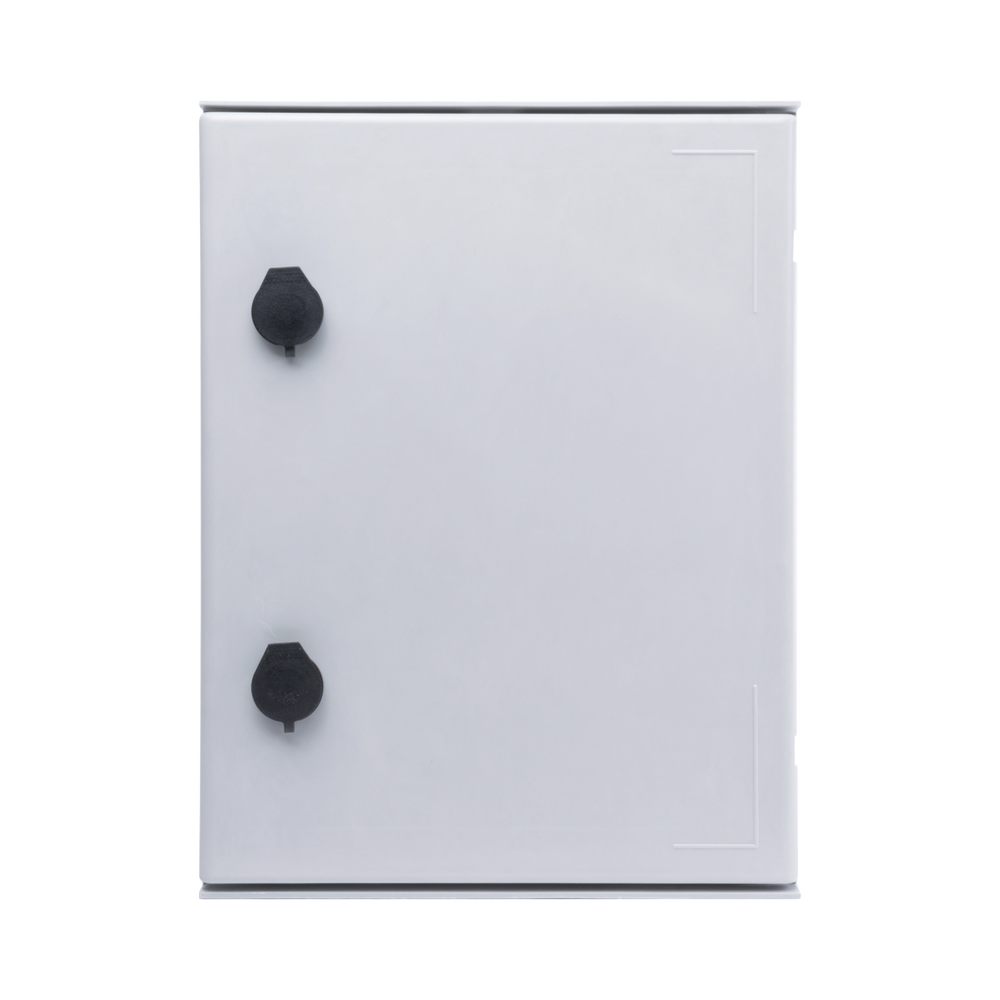

Precision PST-3040-20P IP65 Polyester Outdoor Wall Cabinet PoE Enclosure
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Polyester cabinet for use in outdoor applications such as poles, telecommunication towers, or walls where there is no protection against rain or excessive dust.
Physical Features:
Material: Polyester
Protection level: IP65.
Backplate Material: Polyester plate
Dimensions: 11.81 x 15.74 x 7.87 In (width x height x depth).
Standards: IP65 and RoHS.
Include:
- Polyester body and door.
- Backplate for equipment assembly. 286 x 310 mm (width x height)
- Security lock with key.
- Wall bracket (4 pcs).
- Packing.
Application:
Installation of PoE's in a tower, post, or wall.
Package storage.
Protection of surge protectors, fuses, or electrical boards.
It is recommended to use gland type connectors for wire output (See models).
Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).
Installing this item will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
Key Features
- IP65 Rated for Complete Dust and Water Protection
- Lightweight Construction at Only 4.9 lb for Easy Installation
- 66 lb Maximum Load Capacity for Heavy Equipment
- Internal Plastic Mounting Plate Included for Component Installation
- Security Lock With Key for Controlled Access Protection
- Wall Mount Kit Included for Quick and Secure Installation
