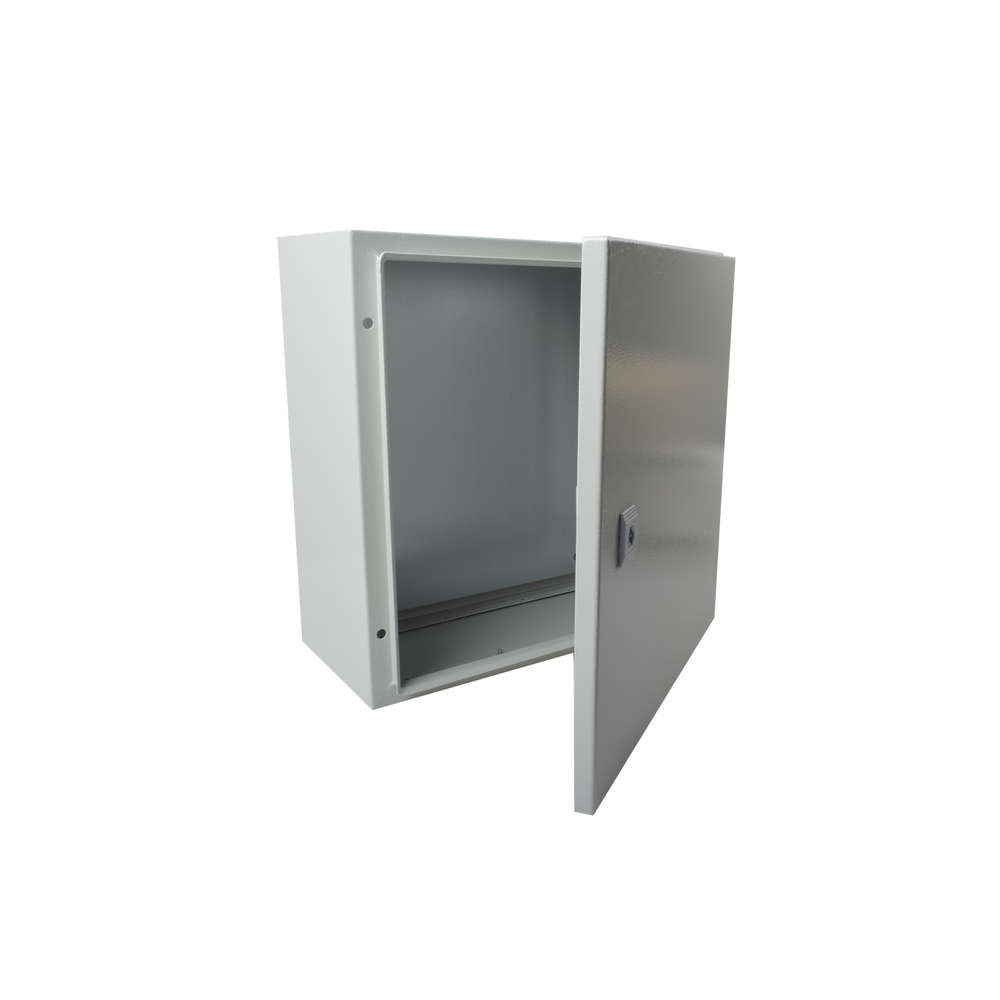

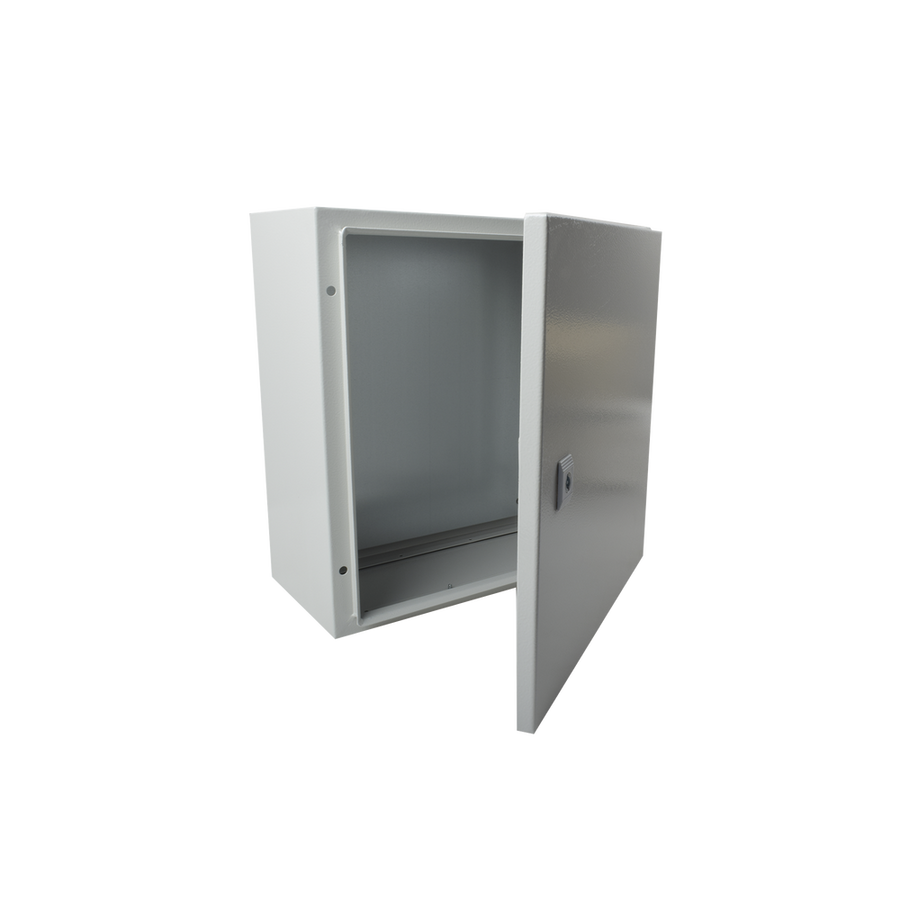

Precision PST-4040-20A IP66 IK10 Steel Outdoor Enclosure 15.75in

Steel cabinet for use in outdoor applications such as poles, telecommunication towers, or walls where there is no protection against rain or excessive dust.

Physical Features:

Material: steel.

Paint: powder polyester base.

Protection level: IP66

Resistance against impacts: IK10

Backplate inner Material: galvanized steel thickness 1.5mm

Dimensions: 15.75 x 15.75 x 7.87 in (width x height x depth).

Includes:

Steel body and door.

Backplate for equipment assembly. 350 x 365 mm (width x height)

Security lock with key (PSTK2L & PSTK2K).

Bottom cover for the installation of gland-type connectors.

Packing

Application:

Installation of PoE's in a tower, post, or wall.

Battery storage.

Protection of surge protectors, fuses, or electrical boards.

It is recommended to use gland-type connectors for wire output (See models).

Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 models PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).

Installing this item will reduce the protection level (IP) of the cabinet but will improve heat dissipation.

Key Features

• IP66 Protection Rating for Demanding Outdoor Environments
• IK10 Impact Resistance for Maximum Physical Security
• Powder Coated Polyester Finish for Corrosion Resistance
• Galvanized Steel Backplate With 1.5 mm Thickness
• Security Lock With Key Included for Access Control
• Bottom Access Door for Cable Gland Installation
