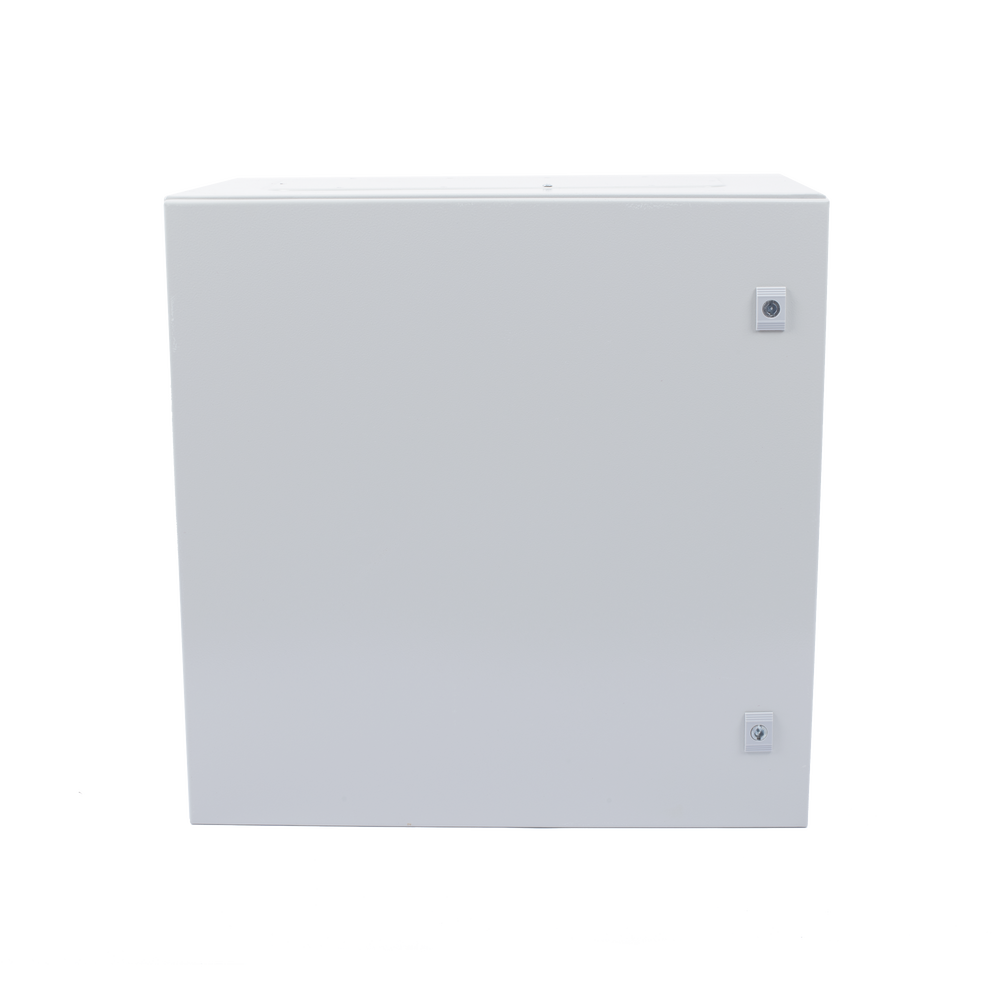

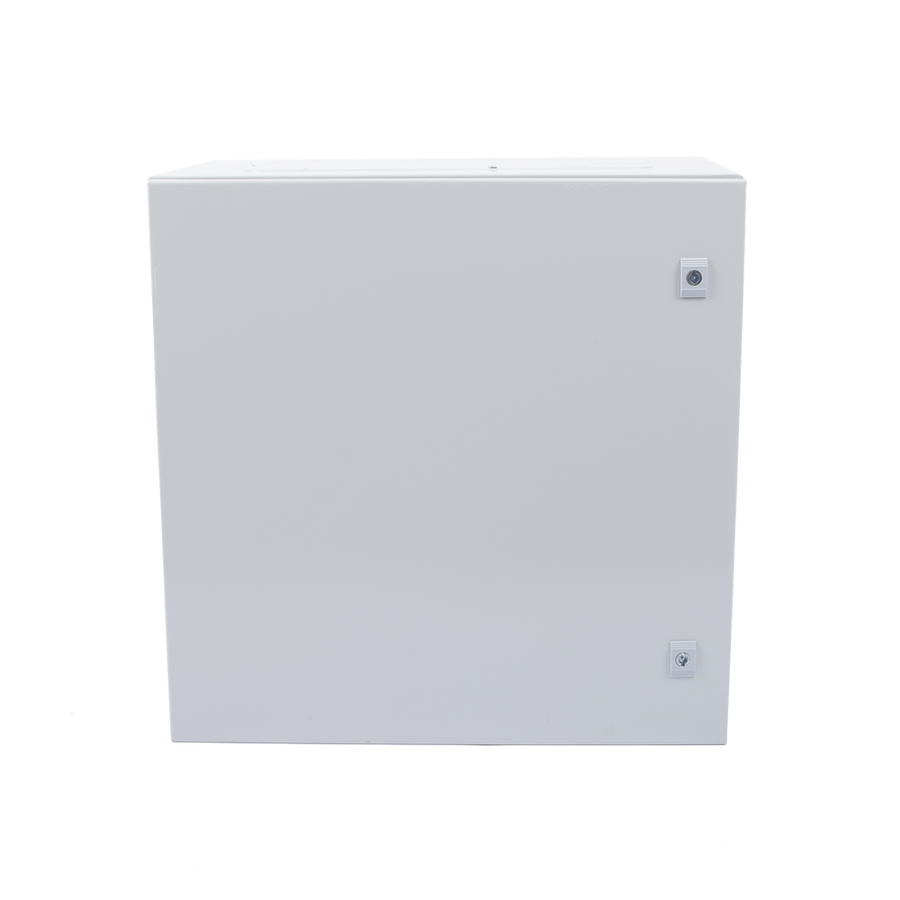

Precision PST-6060-30A IP66 IK10 Steel Outdoor Cabinet PoE

Steel cabinet for use in outdoor applications such as poles, telecommunication towers, or walls where there is no protection against rain or excessive dust.

Physical Features:
Material: steel.
Paint: powder base polyester.
Protection level: IP66
Impact resistance: IK10
Backplate inner material: galvanized steel thickness 2mm
Dimensions: 23.62 × 23.62 × 11.81 in (width x height x depth).

Includes:
Steel body and door.
Backplate for equipment assembly. 13.78 x 22.24 in (width x height)
Security lock with key (PSTK2L & PSTK2K)
Bottom cover for the installation of gland type connectors.
Packing

Application:
Installation of PoE's in a tower, post, or wall.
Battery storage.
Protection of surge protectors, fuses, or electrical boards.

It is recommended to use gland type connectors for wire output (See models).

Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 models PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).

Installing these items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.

Key Features

• IP66 Rating for Complete Dust and Water Protection
• IK10 Impact Resistance for Maximum Durability
• Galvanized Steel Rear Plate for Secure Equipment Mounting
• Bottom Access Door for Easy Cable Gland Installation
• Powder Coated Polyester Finish for Corrosion Resistance
• Versatile Mounting for Towers, Poles, and Wall Applications
