SINCLAIR

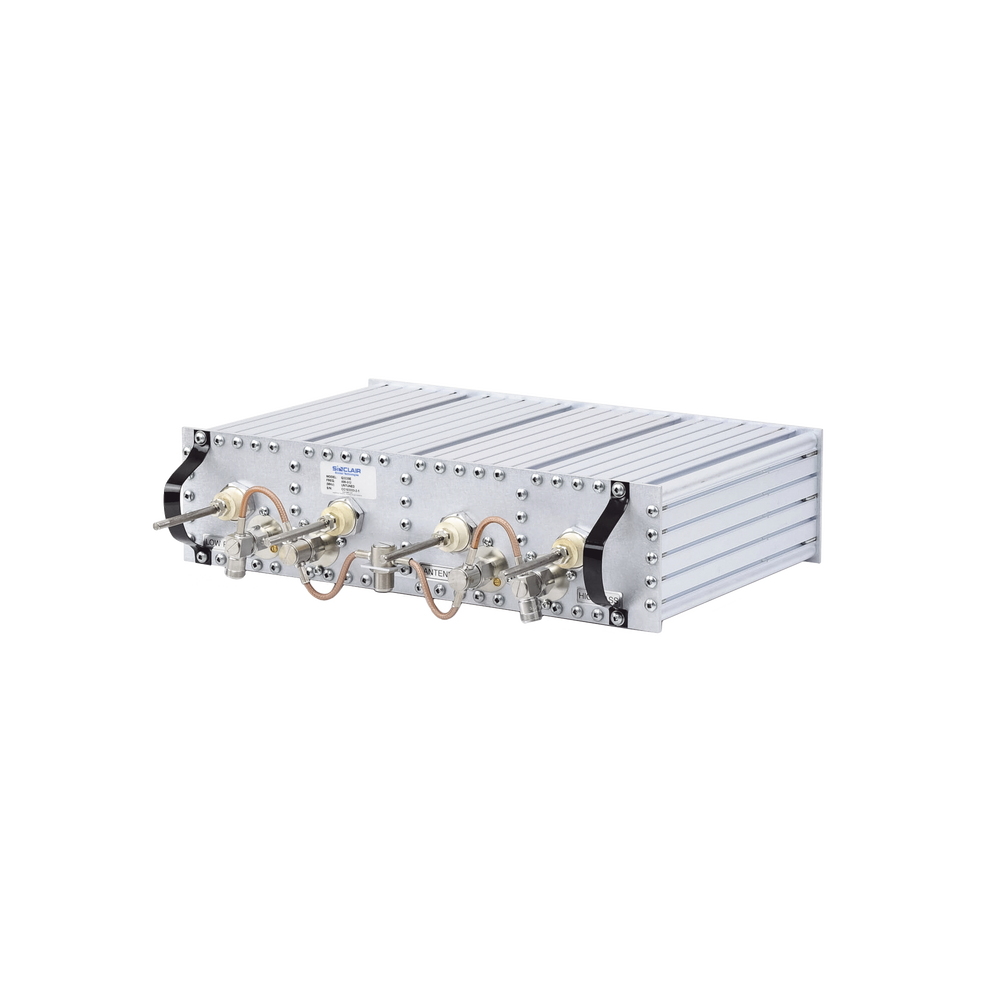

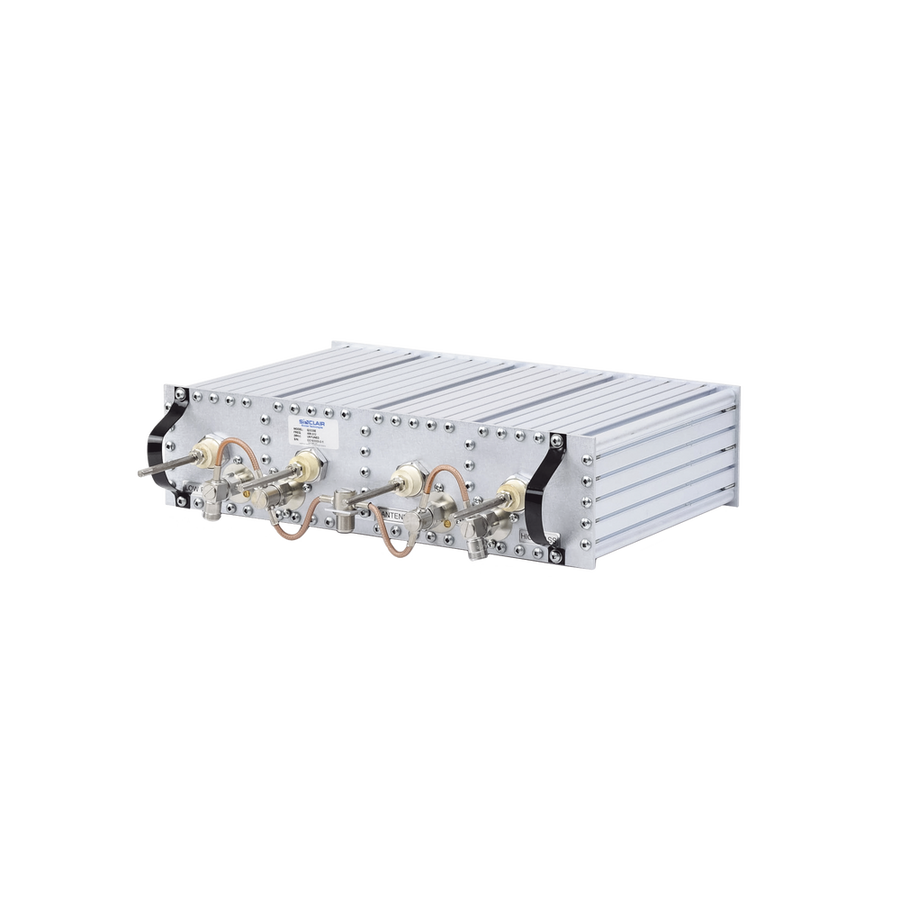

Sinclair Q3220-E UHF Duplexer 406-512 MHz 350W 5 MHz Split N Female
Product identifier
SKU
Q3220-E
$1,750.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Band Pass / Band Reject Duplexer / UHF, 406-512 MHz, 5 MHz Split, 350 Watt, N Female.
- 1/4 wave bandpass filter
- Reduces interference, intermodulation, and desensitization
- Eliminates spurious radiation
- Copper/silver inner conductors, silver-plated to eliminate corrosion and improve performance.
- Recommended for areas with a lot of interference.
Specifications:
- Frequency range: 406-512 MHz.
- Minimal isolation: 75 dB.
- Impedance: 50 Ω.
- Maximum power: 350 W.
- Frequency separation: 5 MHz.
- Loss by max insertion: 0.8 dB.
- Cavities: 4 4" by side).
- Connectors: N Female.
- Dimensions: 4.17 x 19 x 16.3 in.
- Weight: 15 lbs.
- Operating temperature: -40 to +140 ºF.
Key Features
- 406-512 MHz Frequency Range Ideal for FM Applications
- High Power Handling Capacity up to 350 Watts
- Minimum 75 dB Isolation Reduces Interference
- Quarter Wave Cavities With Copper/Bronze Silver Plating
- Maximum Insertion Loss of Only 0.8 dB
- Compact 3U Rack Mount Design 4.2 x 19 x 16.3 in
