EPCOM

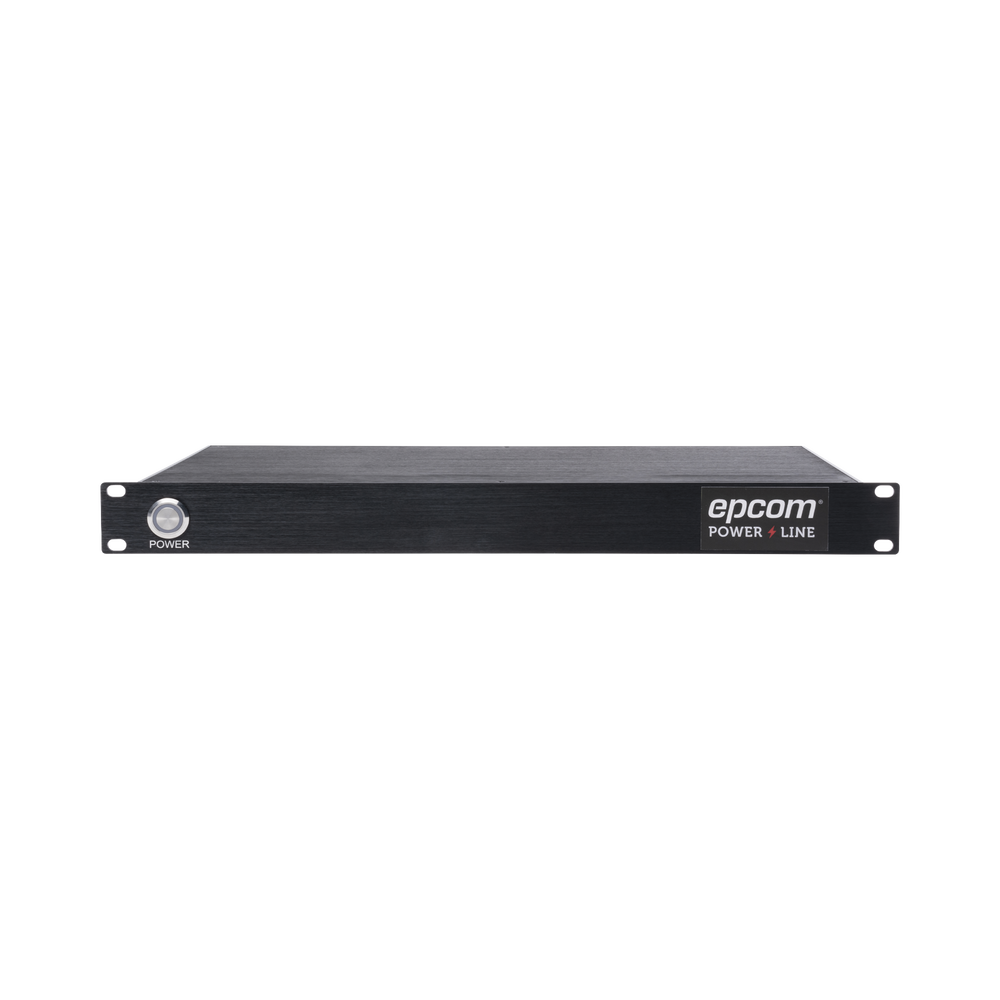

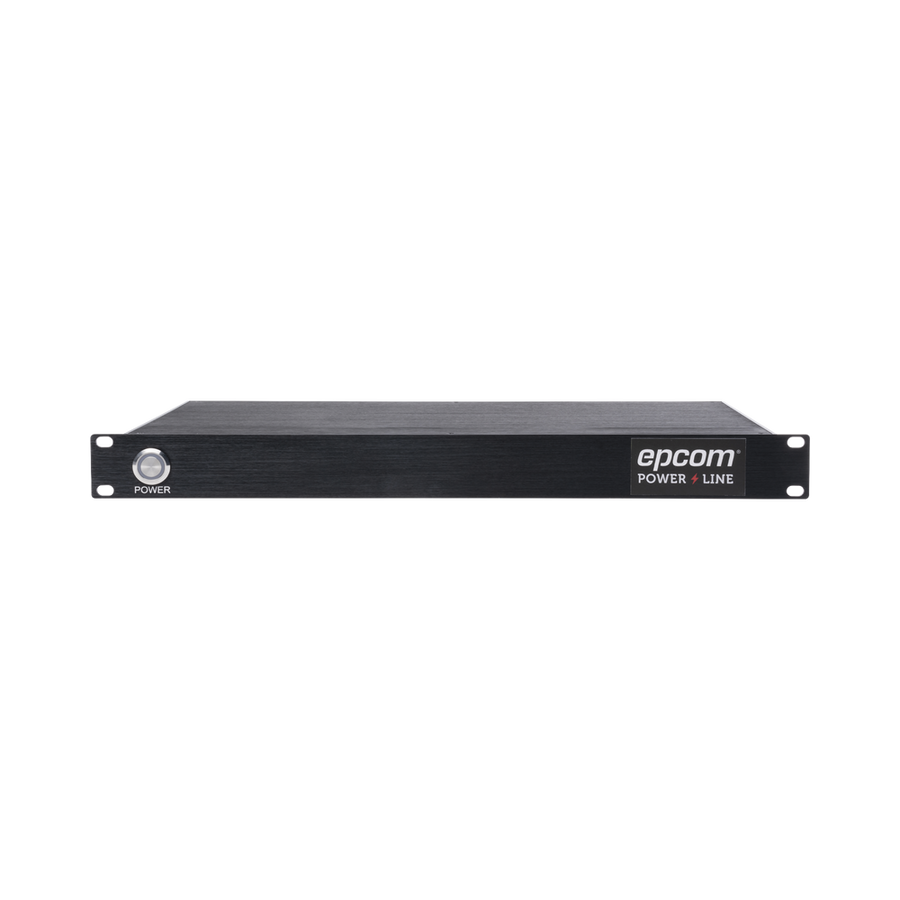

Epcom R12DC20A 16-Port 12VDC 600W Centralized Power Supply 2.5A/Channel
Product identifier
SKU
R12DC20A
$171.04
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Description:
- 16 ports centralized management power supply
- Internal total power of 600W
- Divided into 4 areas, and were 4 groups, a total of 16 ports
- Lightning protection
- Current protection
- Short circuit protection
- Voltage display
- Voltage regulation
Features:
- Input voltage: 100-240VAC 50/60Hz
- Output voltage: 12 VDC (10-14V adjustable)
- Input current: 5200mA MAX
- Output current: 0-2.5A/CH MAX
- Total current: 20 A
- Output: 16 (4 Áreas)
- Size: L 484 mm * W 297 mm * H 44.5mm
Using the environment:
- Operating temp: -10~45°C
- Operating humidity: 20~90%RH
- Storage temp: -20~65°C
- Storage humidity: 10~95%RH
Key Features
- 16 Outputs With Adjustable Current up to 2.5A Each
- Overload, Short Circuit, and Surge Protection Systems
- Four Independent Zones With Four Outputs Each
- Continuous Operation From -14°F to 113°F Temperature Range
- Centralized Power Management for Multiple Device Control
- LED Voltage Display for Real-Time Output Monitoring
