𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

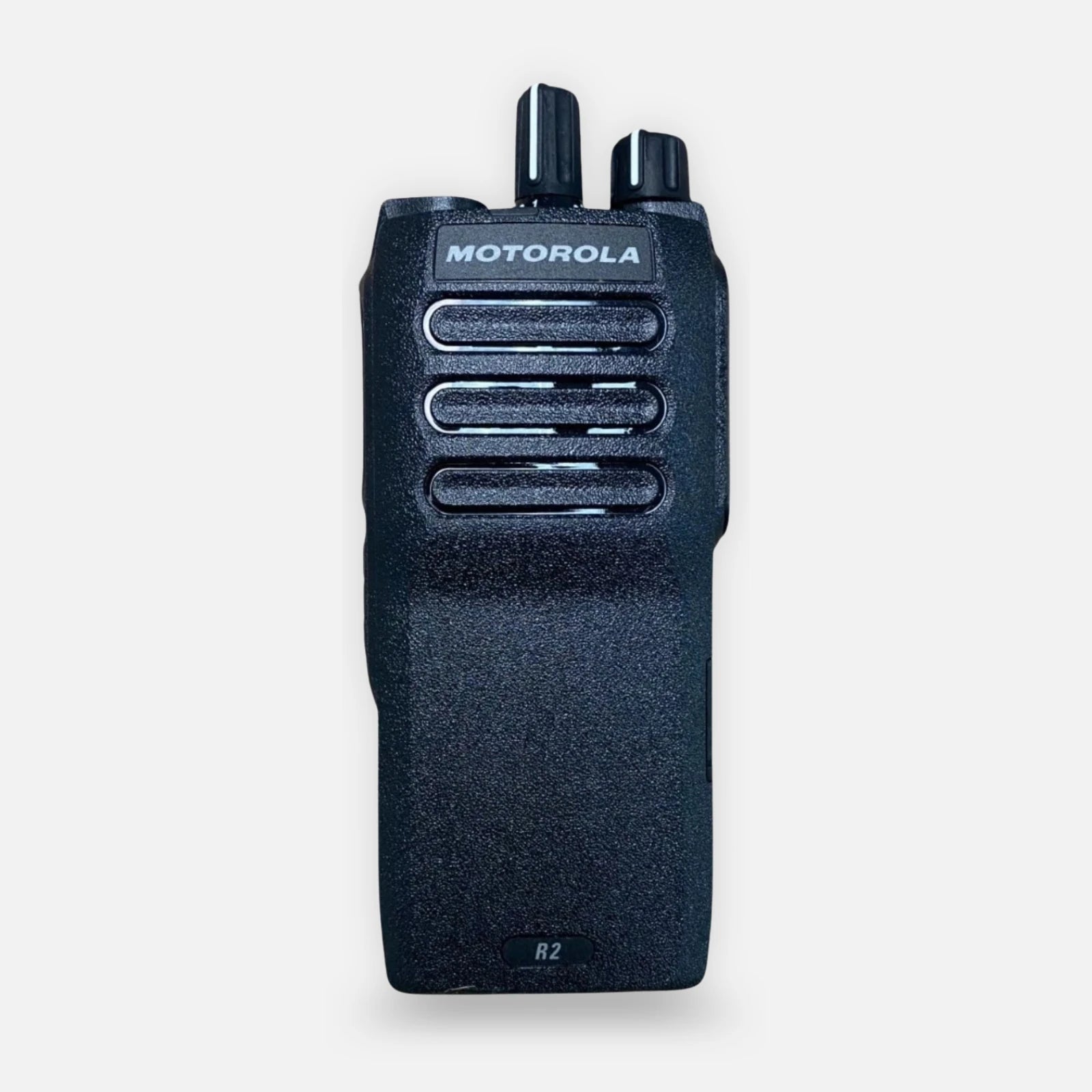

Motorola MOTOTRBO R2 VHF 136–174 MHz 5W 64-Channel Portable Two-Way Radio IP55
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Motorola MOTOTRBO R2 VHF portable radio supporting analog and DMR digital operation. Features 64 channels, 5W VHF output, IP55-rated enclosure, and MIL-STD-810 compliance. Designed for reliable voice communications in professional environments.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
VHF Portable Radios
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• VHF frequency band: 136–174 MHz
• 64 channels
• Analog and DMR digital capable
• ETSI TS 102 361-1, -2, -3 DMR Tier II compliant
• 5W high power / 1W low power output (VHF)
• Dual Capacity Direct Mode
• Extended Range Direct Mode
• Transmit Interrupt (decode)
• Radio disable/enable (decode)
• Remote monitor (decode)
• Voice announcements
• Quick Call II / MDC1200 capable
• Analog scrambling
• Lone worker and emergency alert
• User-selectable audio profiles
• SINC+ noise suppression
• Acoustic feedback suppression
• Automatic gain control and received audio leveling
• Secure Enhanced Linux operating system
• IP55 dust and water ingress protection (IEC 60529)
• Rugged to MIL-STD-810 (C, D, E, F, G, H)
• 2 programmable buttons
• Rental timer
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GENERAL
• Frequency Range: 136–174 MHz
• Channel Capacity: 64
• Channel Spacing: 12.5 / 25.0 kHz
• Power Supply: 7.5V (nominal)
• Frequency Stability: ±0.5 ppm
TRANSMITTER
• RF Output Power: 5W (high) / 1W (low)
• FM Modulation: 12.5 kHz: 11K0F3E | 25 kHz: 16K0F3E
• 4FSK Digital Modulation: 12.5 kHz data 7K60F1D / voice 7K60F1E
• Adjacent Channel Power: ≥60 dB @ 12.5 kHz | ≥70 dB @ 25 kHz
• Modulation Limiting: ±2.5 kHz @ 12.5 kHz | ±5.0 kHz @ 25 kHz
RECEIVER
• Analog Sensitivity (12 dB SINAD): 0.18 µV (typical)
• Digital Sensitivity (5% BER): 0.16 µV (typical)
• Intermodulation (TIA603): ≥70 dB
• Spurious Rejection (TIA603): ≥70 dB
AUDIO
• Digital Vocoder: AMBE+2
• Audio Output Power: 1W rated / 3W max
• Maximum Speech Loudness: 101 phons (ISO 532B)
• Audio Distortion: 3% (typical)
ENVIRONMENTAL
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Dust & Water Intrusion: IEC60529 IP55
• Electrostatic Discharge: IEC 61000-4-2 Level 4
• Thermal Shock, Humidity, Salt Fog, Packaging: MIL-STD-810
PHYSICAL (WITH IP55 2100 mAh BATTERY PMNN4600)
• Dimensions (H x W x D): 4.9 x 2.2 x 1.3 in
• Weight: 9.2 oz
• Battery Life (5/5/90 profile, analog/digital): 17 hrs / 22.5 hrs
PHYSICAL (WITH HIGH CAPACITY IP55 2300 mAh BATTERY PMNN4598)
• Dimensions (H x W x D): 4.9 x 2.2 x 1.5 in
• Weight: 10.1 oz
• Battery Life (5/5/90 profile, analog/digital): 19.5 hrs / 26.5 hrs
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐒𝐇𝐈𝐏𝐏𝐈𝐍𝐆
• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
Shipping Restrictions:
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐑𝐄𝐓𝐔𝐑𝐍𝐒
• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐃𝐀𝐓𝐀 𝐀𝐂𝐂𝐔𝐑𝐀𝐂𝐘 𝐃𝐈𝐒𝐂𝐋𝐀𝐈𝐌𝐄𝐑
Product details are based on available manufacturer information and may be subject to change without notice.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐁𝐔𝐋𝐊 / 𝐕𝐎𝐋𝐔𝐌𝐄 𝐁𝐔𝐘𝐄𝐑𝐒
For bulk orders or volume inquiries, please contact us to confirm availability and pricing.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐀𝐁𝐎𝐔𝐓 𝐄𝐇𝐔𝐁 𝐀𝐌𝐄𝐑𝐈𝐂𝐀
eHub America is a U.S.-based technology distributor specializing in two-way communications, networking, and security solutions. We operate with strict catalog standards, manufacturer-verified product data, and dependable order fulfillment. Our focus is serving professional, commercial, and institutional customers with consistency, accuracy, and operational reliability.
