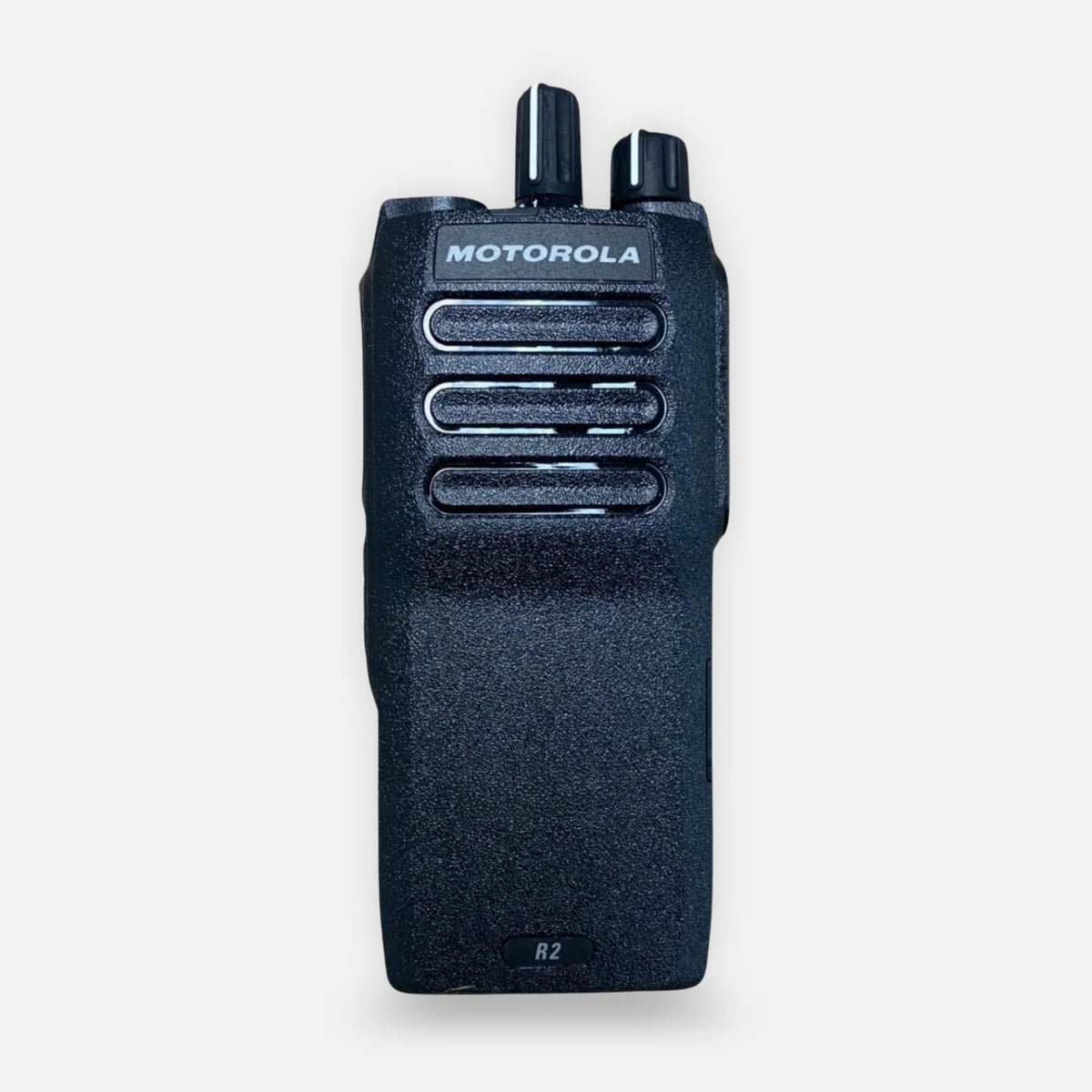

MOTOROLA R2 VHF 136-174 MHZ MOTOTRBO PORTABLE TWO-WAY RADIO IP55
MOTOROLA
Motorola R2 VHF 136-174 MHz Mototrbo Portable Two-Way Radio IP55
SKU
Professional-grade equipment, ready to ship.
$358.33$465.03Save 23%
14 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Frequency Range
- Frequency Range: 136–174 MHz
- Channel Capacity
- Channel Capacity: 64
- Channel Spacing
- Channel Spacing: 12.5 / 25.0 kHz
- Frequency Stability
- Frequency Stability: ±0.5 ppm
- RF Output Power
- RF Output Power: 5W (high) / 1W (low)
- FM Modulation
- FM Modulation: 12.5 kHz: 11K0F3E | 25 kHz: 16K0F3E
- 4FSK Digital Modulation
- 4FSK Digital Modulation: 12.5 kHz data 7K60F1D / voice 7K60F1E
- Adjacent Channel Power
- Adjacent Channel Power: ≥60 dB @ 12.5 kHz | ≥70 dB @ 25 kHz
- Modulation Limiting
- Modulation Limiting: ±2.5 kHz @ 12.5 kHz | ±5.0 kHz @ 25 kHz
- Analog Sensitivity (12 dB SINAD)
- Analog Sensitivity (12 dB SINAD): 0.18 μV (typical)
- Digital Sensitivity (5% BER)
- Digital Sensitivity (5% BER): 0.16 μV (typical)
- Intermodulation (TIA603)
- Intermodulation (TIA603): ≥70 dB
- Audio Output Power
- Audio Output Power: 1W rated / 3W max
Hardware
- Storage Temperature
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Battery
- Electrostatic Discharge
- Electrostatic Discharge: IEC 61000-4-2 Level 4
Physical
- Operating Temperature
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Dimensions (H x W x D)
- Dimensions (H x W x D): 4.9 x 2.2 x 1.3 in
- Weight
- Weight: 9.2 oz
- Dimensions (H x W x D)
- Dimensions (H x W x D): 4.9 x 2.2 x 1.5 in
- Weight
- Weight: 10.1 oz
General
- Power Supply
- Power Supply: 7.5V (nominal)
- Spurious Rejection (TIA603)
- Spurious Rejection (TIA603): ≥70 dB
- Digital Vocoder
- Digital Vocoder: AMBE+2
- Maximum Speech Loudness
- Maximum Speech Loudness: 101 phons (ISO 532B)
- Audio Distortion
- Audio Distortion: 3% (typical)
- Dust & Water Intrusion
- Dust & Water Intrusion: IEC60529 IP55
