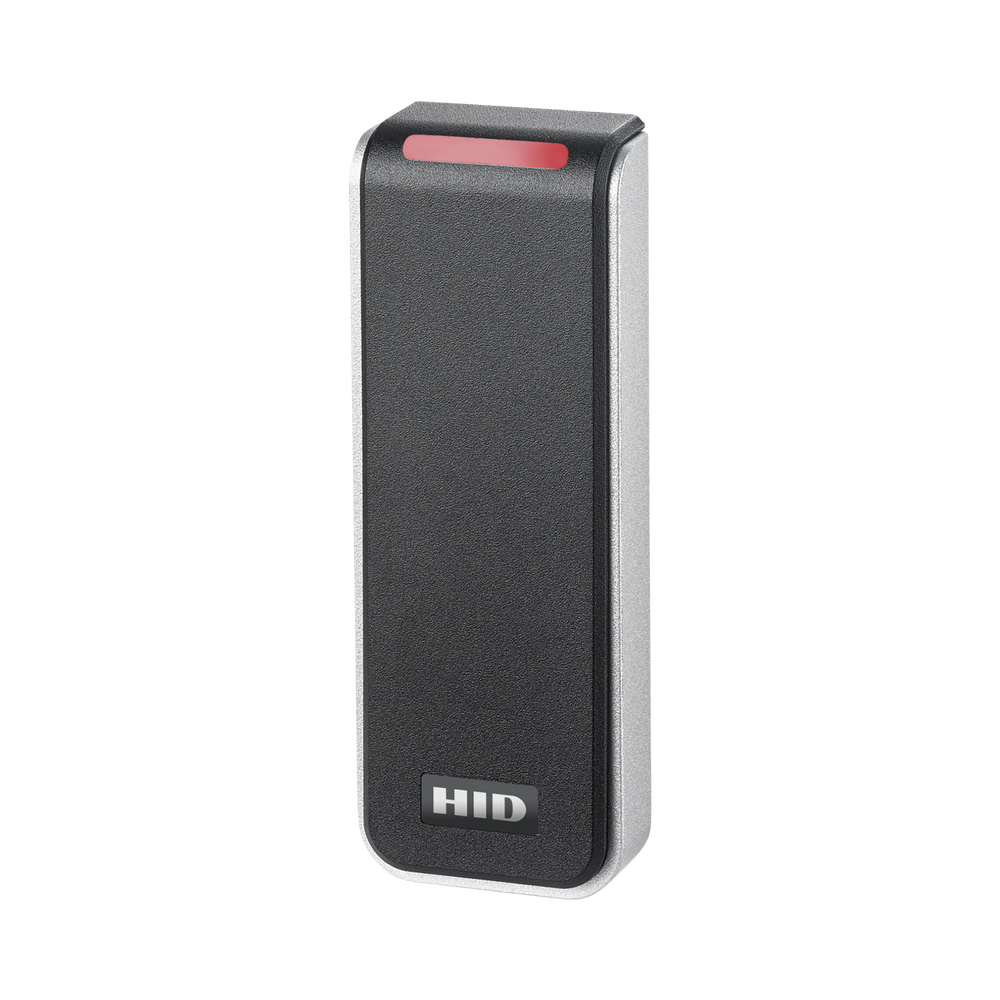

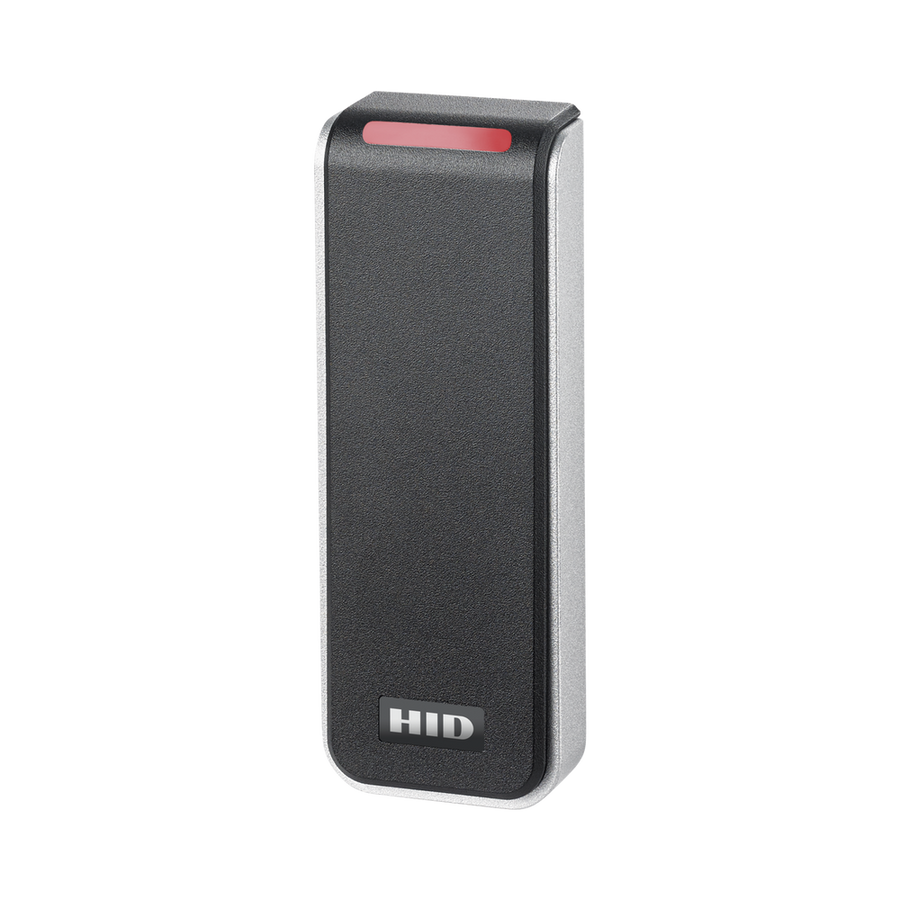

HID R20F Signo 20NKS-00-000000 Multi-Technology Access Control Reader Wiegand
Product identifier
SKU
R20F
$195.05
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
HID Signo ™ is HID Global's iconic line of access control readers. The versatility, performance and connection capabilities of the HID Signo readers set a new benchmark in the industry as the most adaptable, interoperable and secure solution for electronic access control.
Characteristics:
- Model 20NKS-00-000000 reader
- Power Supply: 12 Vcc
- Supported technology: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1 / EV2, mobile credentials with Seos technology (HID Mobile Access).
- Supported technology: HID Proximity®, Indala® Proximity, AWID Proximity and EM Proximity
- Ideal for installation in door frames or on any flat mounting surface
- Dimensions: 45mm x 121.5mm x 19.5mm (1.77inch x 4.78inch x 0.77inch)
- Input: tricolor LED, acoustic indicator, active bass retention.
- Data output by Pigtail.
- Data output: Wiegand and RS-485 half duplex (OSDP) via flexible cable (18 inch / 0.5 m) or terminal strip
Key Features
- Supports SEOS, iClass, and MIFARE Technologies for Multiple Credentials
- Mobile Credential Compatibility With NFC and Bluetooth Support
- Wiegand and OSDP Data Output Through Flexible Pigtail Cable
- 12 VDC Power Supply for Efficient Operation
- Compact Dimensions 1.77 x 4.78 x 0.77 in for Easy Installation
- Tricolor LED and Audio Interface for User Feedback
