AKUVOX

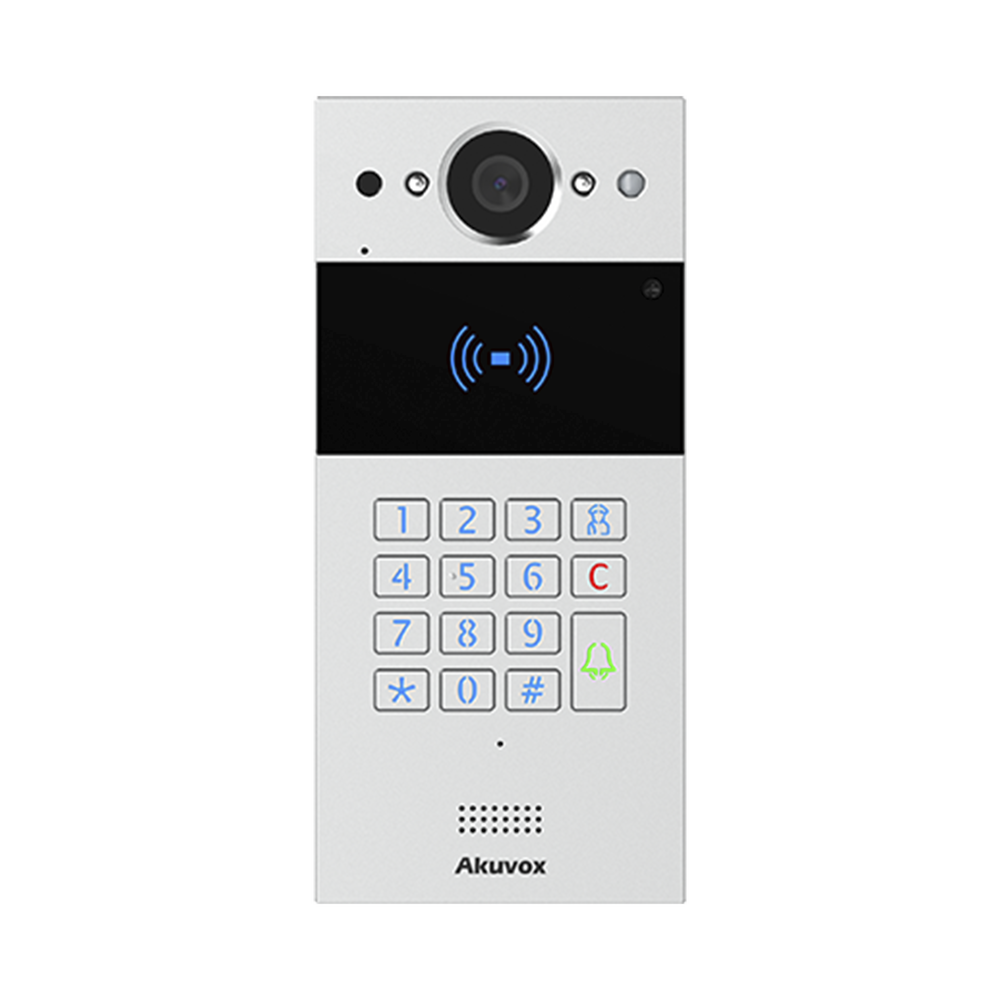

Akuvox R20KSIP SIP Video Doorphone 2MP PoE IP65 Keypad Card Reader
Product identifier
SKU
R20KSIP
$326.30
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Palm-Size Doorphone Certified for Outdoor Usage
Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings.
- Vandal resistant body with numeric keypad;
- Wide-angle camera: 110º (H), 58º (V);
- PoE (IEEE802.3af, Power-over-Ethernet);
- Two-way audio communication over IP networks with Echo Cancel feature;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Complies with ONVIF standard for easy integration with any network surveillance system;
Physical & Power:
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz (with NFC) & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 4Ω / 3W
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- Flush-mounted DIM: 8.898 x 4.252 x 2.047 in.
- Wall-mounted DIM: 7.28x 3.35x 1.14 in.
- Working Humidity: 10~90%
- Working Temperature: -22°F ~ +149°F
- Storage Temperature: -40°F ~ +158°F
Audio:
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.7”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264, H.265
- Video resolution: up to 1920x1080
- Max. image transfer rate: 1080p – 25fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd -Party-Video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol:
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance:
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario:
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access contro
Hey Siri, open de door
Key Features
- Akuvox Cloud Platform for 100% Remote Management and Configuration
- Smart Plus App for Android and iOS With Real-Time Video Communication
- Dual Notification System Via Mobile App and Phone Calls
- IP65 Weatherproof Rating for Outdoor Installation and Durability
- NFC Card Reader and 125 kHz RFID Compatibility for Access Control
- SIP and ONVIF Standard Support for System Integration
