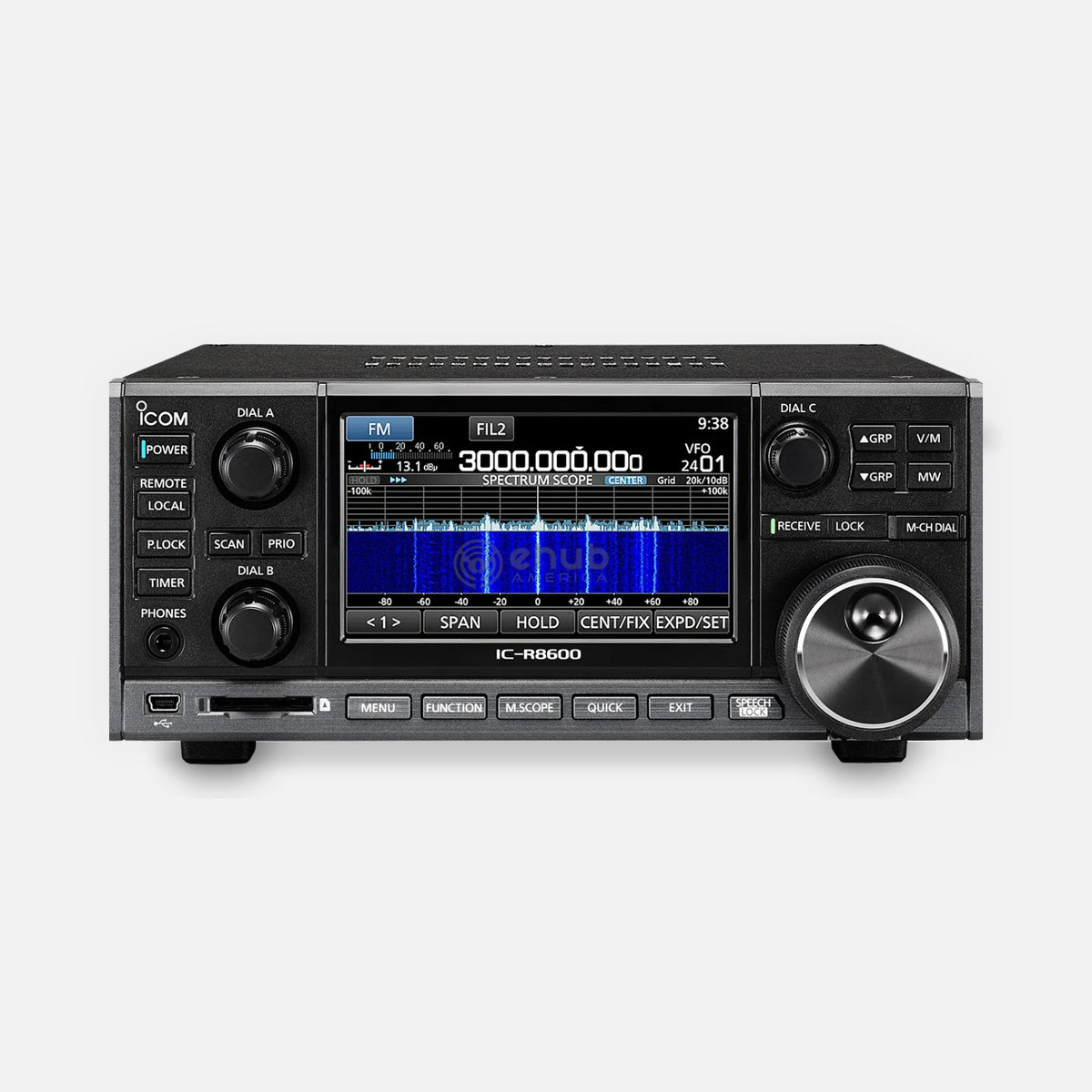

Icom R8600 02 IC 10kHz to 3GHz Super Wideband Receiver FCC Certified US Version

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Icom IC-R8600 10 kHz–3 GHz Super Wideband Receiver (FCC US Version)

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
The Icom IC-R8600 is a software-defined wideband communications receiver covering 10 kHz to 3 GHz (USA version band limits apply). It features FPGA/DSP processing, real-time spectrum scope, digital mode decoding, and up to 2000 memory channels.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios – Amateur/Ham Radios

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Frequency coverage (USA): 0.010000–821.999999 MHz, 851.000000–866.999999 MHz, 896.000000–3000.000000 MHz
• Direct sampling (HF) and superheterodyne architecture (VHF/UHF)
• 4.3-inch color touch display with real-time spectrum scope and waterfall
• Decodes P25 (Phase 1), NXDN™, dPMR™, D-STAR, and DCR digital modes
• Analog modes: USB, LSB, CW, FSK, AM, S-AM, FM, WFM
• 1 Hz frequency resolution
• 2000 regular memory channels with 100 groups
• SD card audio recording (WAV) and screen capture (SD card required)
• I/Q output via USB for external analysis software
• Optional PC remote control software (RS-R8600)
• Three antenna connectors (Type-N, SO-239, RCA)
• MIL-STD-810-G tested

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

Frequency Coverage (USA Version):
• 0.010000–821.999999 MHz*
• 851.000000–866.999999 MHz
• 896.000000–3000.000000 MHz
(*Guaranteed range: 0.100000–821.999999 MHz)

Frequency Stability: ±0.5 ppm (at 25°C after warm-up)
Frequency Resolution: 1 Hz

Modes: USB, LSB, CW, FSK, AM, FM, WFM, Digital (D-STAR, P25 Phase 1, NXDN, dPMR, DCR)

Number of Channels:
• 2000 regular (100 groups)
• 200 auto memory write
• 100 skip channels
• 100 scan edge channels

Scan Types: Programmed, memory, selected memory, selected mode, auto memory write, priority, ⊿f scan

Power Supply Requirement: 13.8 V DC ±15%
DC Current Drain: 1.8 A (standby), 2.0 A (max audio)

Operating Temperature: −10°C to +60°C (14°F to 140°F)

Dimensions (W × H × D):
• 220 × 90 × 230 mm
• 8.7 × 3.5 × 9.1 in

Weight:
• Approx. 4.3 kg (9.5 lb)

Antenna Connectors:
• ANT 1 (0.01–3000 MHz): Type-N (50 Ω)
• ANT 2 (0.01–30 MHz): SO-239 / PL-259 (50 Ω)
• ANT 3 (0.01–30 MHz): RCA (500 Ω)

Receiver System:
• 0.010–29.999 MHz: Direct sampling
• 30.000–3000.000 MHz: Double/Triple superheterodyne (band dependent)

IP3 Performance:
• +30 dBm at 14.1 MHz
• +10 dBm at 144 MHz
• 0 dBm at 440 MHz

Dynamic Range: 105 dB at 14.1 MHz

Audio Output Power: >2.0 W (8 Ω load, 10% distortion)

Spurious and Image Rejection (Analog Mode):
• >70 dB (0.010–29.999 MHz)
• >50 dB (30.000–1099.999 MHz)
• >40 dB (1100.000–3000.000 MHz, band dependent)

Military Standard: MIL-STD-810-G (and equivalent -C, -D, -E, -F)

Supplied Accessories (Version Dependent):
• DC power cable
• Fuses
• Plugs

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
