Resideo · Intrusion & Alarm

Resideo Honeywell 947-75TWH 3/4 in Recessed Steel Door Contact with Screw Terminals, White

Part number / SKU
947-75TWH

$16.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

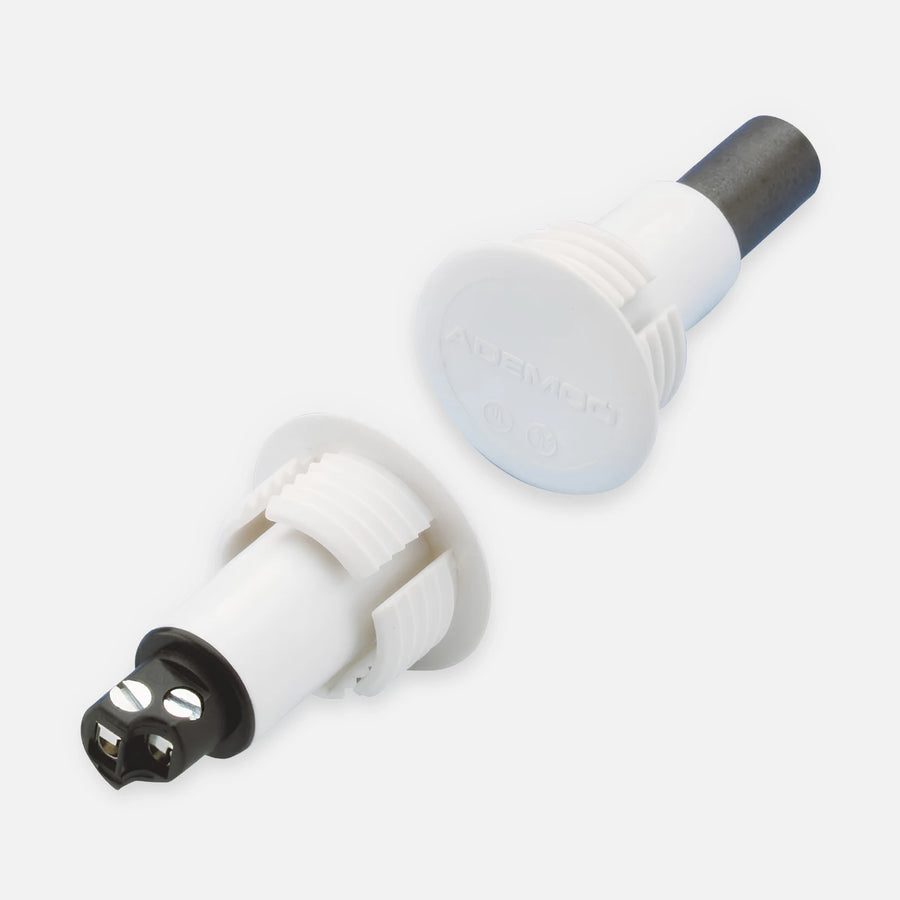

The Resideo (Honeywell) 947-75TWH is a white, 3/4 in diameter recessed magnetic contact for steel doors. The T version uses staggered T screw terminals that remove the need to splice or solder, and work with a standard screwdriver.

It is rated for a standard 1/2 in gap in steel. The 947-75 is offered in white (WH), brown (BR) and gray (GY), and the 947-75 without the T has 5 ft leads instead of terminals.

  • Best for: recessed door monitoring on steel doors and frames in wired intrusion systems.
  • System fit: hardwired alarm control panel zones.
  • Important to know: the T in the model number is the screw terminal version; order the 947-75 for 5 ft leads.

Why teams choose it

Built for secure sites

  • Steel door rated

    1/2 in standard gap in steel.

  • Screw terminals

    staggered T terminals, no splicing or soldering.

  • Recessed mount

    3/4 in diameter recessed contact.

  • Color choice

    offered in white, brown and gray.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU947-75TWH
General
Brand Resideo (Honeywell)
Model 947-75TWH
Device Type Recessed magnetic door contact for steel doors
Diameter 3/4 in
Gap 1/2 in standard in steel
Connection Staggered T screw terminals
Color White
Color Options White (WH), brown (BR), gray (GY)
Lead Version 947-75 (5 ft leads)
