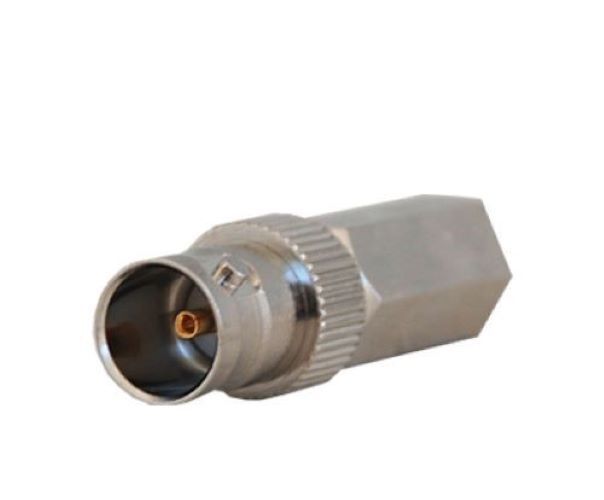

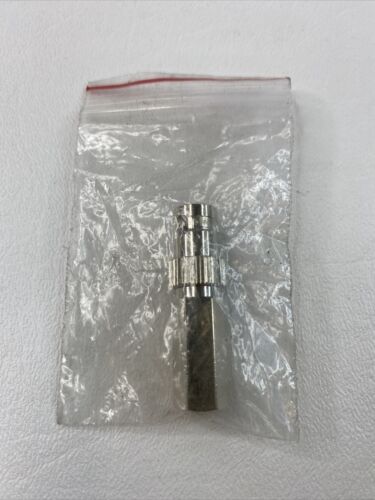

Rf Industries RFB-1722 BNC Female 75 Ohm Twist-On Connector on RG-59/U Coaxial

The RF Industries RFB-1722 is a 75-ohm BNC female connector designed for termination on RG-59/U coaxial cable using a twist-on assembly method. Built with a nickel-plated body, silver contact, and Delrin dielectric, this connector delivers reliable signal integrity in 75-ohm coaxial systems without the need for soldering or crimping tools. The twist-on design allows for fast, repeatable field terminations, making it a practical choice for broadcast, CCTV, video distribution, and other 75-ohm RF infrastructure applications where technician efficiency and consistent electrical performance are priorities.

Key features & benefits

• 75-Ohm Impedance Matching — Rated at 75 ohms to maintain proper impedance continuity throughout 75-ohm coaxial cable runs, minimizing signal reflections and loss.
• Twist-On Assembly Method — Tool-free twist-on termination enables rapid field installation on RG-59/U coaxial cable without crimping or soldering equipment.
• BNC Female Connector Interface — Standard BNC female interface provides a secure bayonet-locking mating connection compatible with BNC male ports and patch cables in 75-ohm systems.
• Nickel / Silver / Delrin Construction — The nickel body resists corrosion, the silver contact promotes low-resistance signal transfer, and the Delrin dielectric provides stable electrical isolation and mechanical durability.
• RG-59/U Cable Compatibility — Engineered specifically for RG-59/U coaxial cable, ensuring a proper mechanical fit and consistent electrical performance at the cable-connector interface.
• Compact Form Factor — At 1.583 inches in overall length, the RFB-1722 fits comfortably in tight panel and equipment enclosure installations without excessive cable strain.
