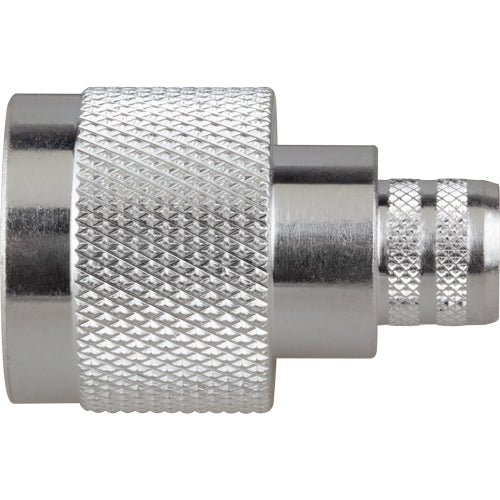

RF Industries RFN-1006-3I N Plug Crimp Connector 11 GHz 50 Ohm RG-8/U

PRODUCT OVERVIEW

The N Plug Crimp connector by RF Industries is designed to deliver superior performance in high-frequency applications, with a frequency range of 0 to 11 GHz and a maximum VSWR of 1.3 @ 9 GHz. Its nickel-plated brass construction and PTFE insulator ensure excellent durability and conductivity. It is ideal for RG-8/U and similar type A cables.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• Silver-Plated Brass Body for Maximum Conductivity and Durability
• High-Purity Gold-Plated Center Contact for Superior Performance
• Teflon Dielectric Insulator With Excellent RF Characteristics
• Foldable Ring Assembly for Secure and Reliable Connections
• Compatible With Multiple Industry-Standard Coaxial Cable Types
• Ideal for Professional Radio Communication and RF Applications

TECHNICAL SPECIFICATIONS

• Brand: RF
• Model: RFN-1006-3I
• Product Type: Networking Accessories
• Impedance: 50 Ohms
• Frequency Range: 0 – 11 GHz
• VSWR: 1.3 Max @ 9 GHz
• Insertion Loss: .06 dB Max. x √F(GHz)
• Working Voltage: 1k VRMS at sea level
• Temperature Range: -55°C to +85°C
• Insulation Resistance: 5k M Ohms min.
• Functionalities
• Resistant to extreme temperatures
• High level of electrical insulation
• Easy installation and crimping
• Advanced Specifications
• Crimp Die: .118” or .128”
• Crimp Dia: .429”
• Compatible with RG-8/U type A cables
• Crimping Tools: Crimp Die .429”
• Stripping Instructions: Length .600 inches (15.24 mm)
• Applications and Use Cases
• This connector is ideal for telecommunications and high-frequency data transmission applications, where a high level of signal integrity and durability is required.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
