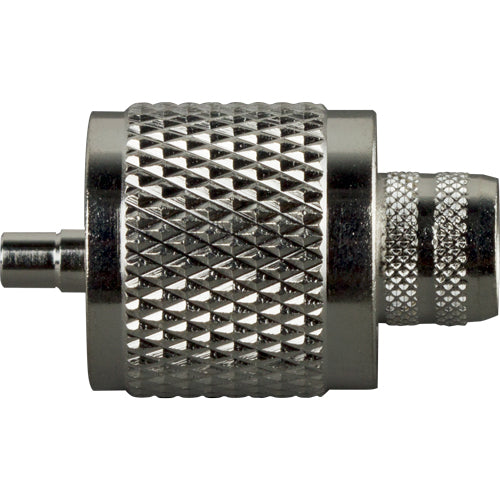

RF Industries RFU-507-SI UHF PL-259 Male Crimp Connector 0-300MHz LMR-400

PRODUCT OVERVIEW

The UHF Plug Crimp RFU-507-SI connector is ideal for applications requiring a frequency range of 0 to 300 MHz and a working voltage of up to 500 V RMS at sea level. Made primarily of brass with a silver-plated finish to ensure conductivity, this connector is robust and highly reliable.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• Professional Grade PL-259 Male Connector for Critical Applications
• Multi-Cable Compatibility With 7 Different Coaxial Types
• Foldable Ring Assembly for Easy and Secure Installation
• Silver-Plated Bronze Body for Superior Durability and Conductivity
• Teflon Dielectric Insulator for High Resistance and Safety
• Stable and Reliable Signal Transmission for Professional Use

TECHNICAL SPECIFICATIONS

• Brand: RF
• Model: RFU-507-SI
• Product Type: Networking Accessories
• Compatible with multiple cable types including Belden 8241 and LMR-400
• Brass with 30 micro-inch silver plating
• Dielectric made of PTFE
• Functionalities
• Capable of handling frequencies from 0 to 300 MHz
• Working voltage up to 500 V RMS
• Robust design ensuring conductivity
• Advanced Specifications
• Compatibility with Belden and LMR cables
• Recommended crimp die: 0.429 inches
• Precise stripping dimensions required for installation
• Compatible with standard profile sleeves and ferrules
• Applications and Use Cases
• Ideal for installations requiring high reliability and stable transmission within the VHF range.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
