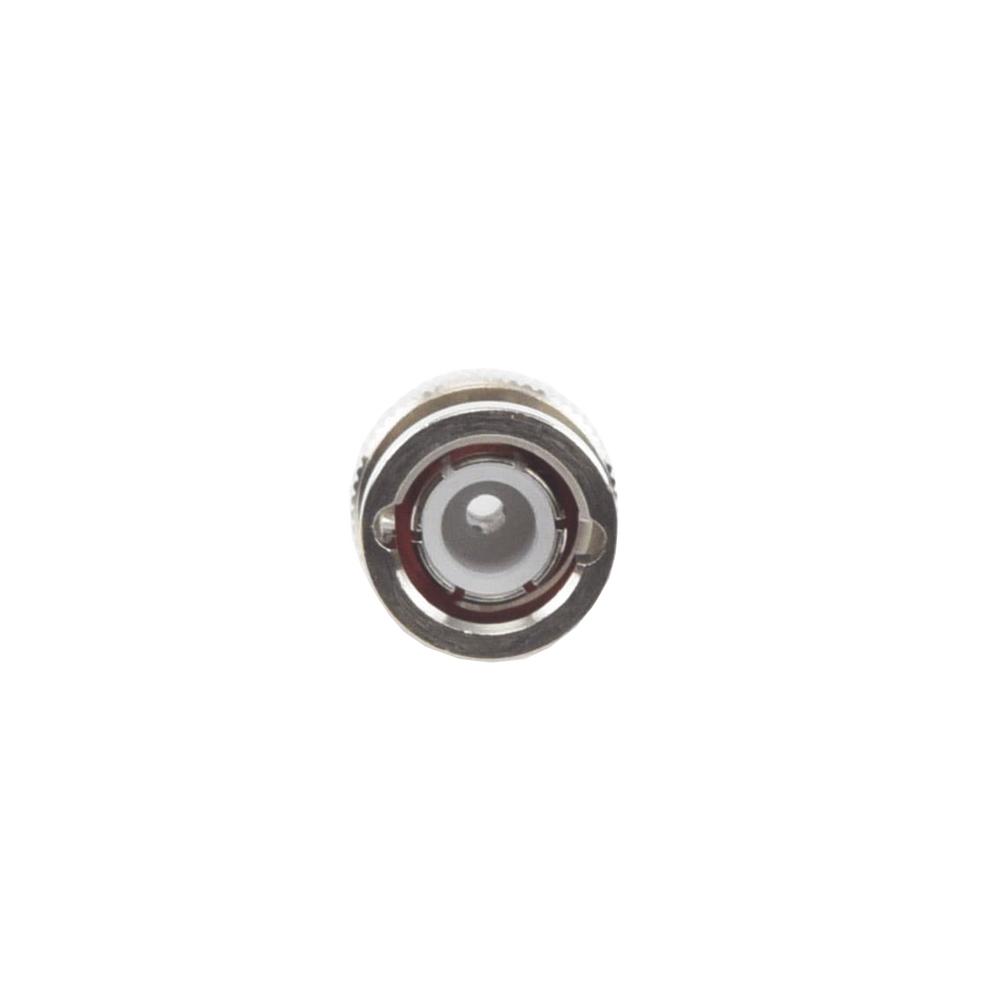

RF Industries RFB-1106-2 BNC Crimp Connector 50Ω 4GHz RG-58/142
Product identifier
SKU
RFB-1106-2
$12.75
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The BNC Plug Crimp connector provides a reliable solution for connection applications in high-frequency environments, suitable for a range of 0 to 4 GHz. Designed to operate at a working voltage of 500 V RMS at sea level and a temperature range of -65°C to 165°C, this connector ensures high performance in various contexts.
- Type Recommended Cable: LMR-195, RG-58/U, RG-142/U.
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0 - 4 GHz
- Working Voltage: 500 V RMS at sea level
- Temperature Range: -65°C to 165°C
- Insulation Resistance: 5k M Ohms minimum
Functionalities
- Compatible with RG-58, 58A, 141, 142 cables
- Body Material: Nickel-plated brass
- Delrin insulator for high durability
Advanced Specifications
- Compatibility with various cable types
- Recommended working voltage: 500 V at sea level
- Compliant with insulation standards
Applications and Use Cases
Ideal for applications requiring high precision connectivity and durability under extreme temperature and voltage conditions.
Key Features
- Nickel-Plated Brass Body for Superior Durability and Corrosion Resistance
- Gold-Plated Center Contact Ensures Excellent Signal Conductivity
- Delrin Dielectric Insulator Provides Superior Thermal Stability
- Efficient Foldable Ring Assembly for Quick and Secure Installation
- Compatible With Multiple Coaxial Cable Types and Applications
- Compact Design Ideal for Space-Constrained Installations
