RF INDUSTRIES

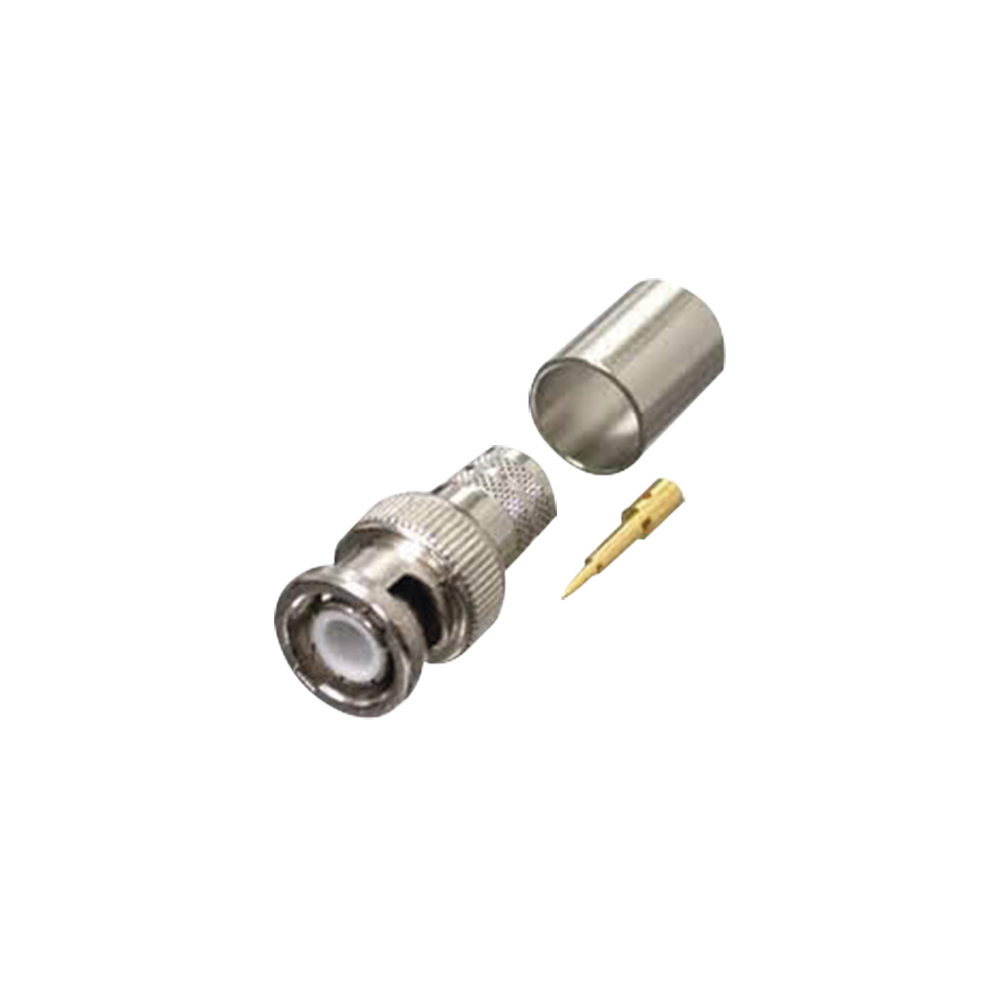

RF Industries RFB-1106-I BNC Male Crimp Connector 50 Ohm 4GHz for LMR-400/RG-8
Product identifier
SKU
RFB-1106-I
$16.28
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
BNC Connector RFB-1106-I - RF Industries
The RFB-1106-I BNC connector offers high quality and performance for radio frequency applications.
- Connector Type: BNC Male Straight
- Coupling Method: Bayonet Lock
- Attachment Method: Crimp
- Impedance: 50 Ohms
- Frequency Range: Up to 4 GHz
- Body Material: Nickel-Plated Brass
- Center Contact Material: Gold-Plated Brass
- Dielectric Material: PTFE
- Operating Temperature: -65°C to 85°C
- Voltage Rating: 500 V RMS
- Cable Compatibility: LMR-400, Belden 7810A, Belden 8214, RG-8/U, CNT-400, 9913.
Key Features
- Foldable Ring Design for Quick and Easy Installation
- Nickel-Plated Brass Body for Superior Durability
- Pure Gold-Plated Center Contact for Optimal Conductivity
- High-Resistance Teflon Dielectric Insulator Protection
- Compatible With 9913 and CNT-400 Cable Types
- Professional Grade Connector for RF Applications
