RF INDUSTRIES

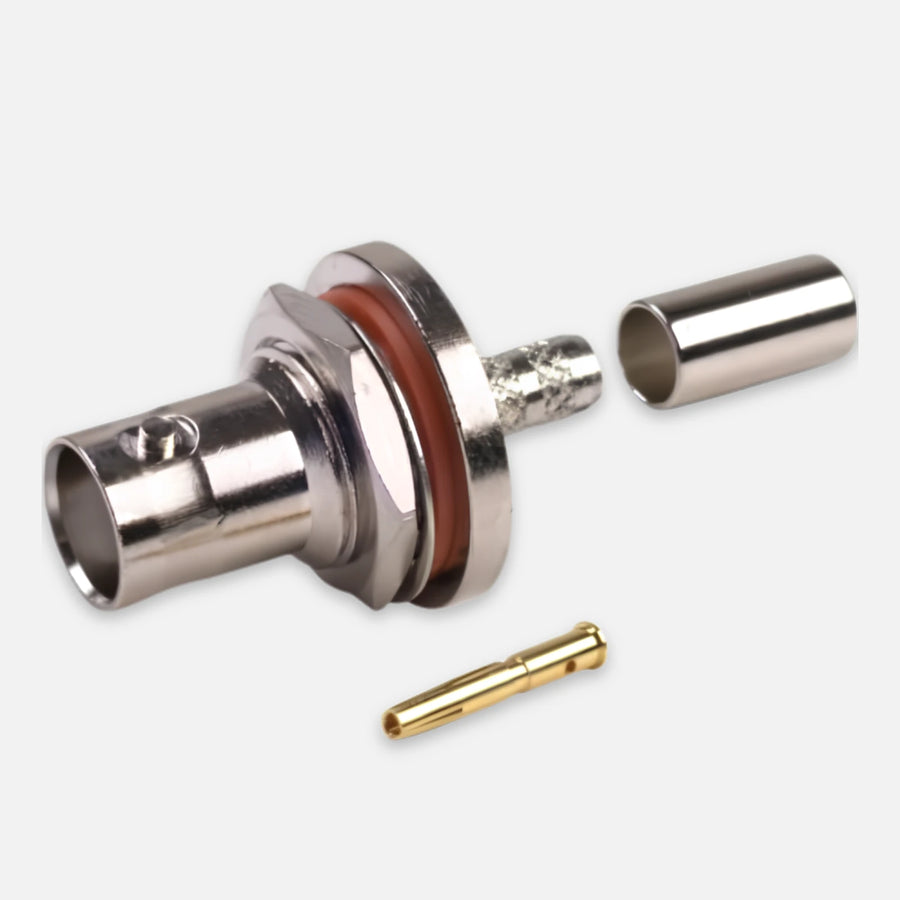

RF Industries RFB-1117-C1 BNC Female Rear Mount Bulkhead Connector RG-142/U
Product identifier
SKU
RFB-1117-C1
$11.33
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
BNC Female connector, rear mount bulkhead crimp to RG-142/U, D-flat.​
- RF Connector Type: BNC.
- Impedance: 50 Ohm.
- Interface Type: Female/Jack.
- Orientation: Straight.
- Mounting Style: Rear with D Flat.
- Termination Style: Solder.
- Termination Type: Crimp for RG-142/U.
- Outer Body Plating: Nickel.
- Inner contact plating: Gold.
- Dielectric Material: Delrin
- Note: Brass Body.
Key Features
- IP68 Waterproof Rating for Harsh Environments
- Compatible With RG-142/U Coaxial Cable
- Nickel-Plated Brass Body for Maximum Durability
- Gold-Plated Center Contact for Superior Conductivity
- Delrin Dielectric Insulator for Excellent Performance
- D-Sub Rear Panel Mount for Secure Installation
