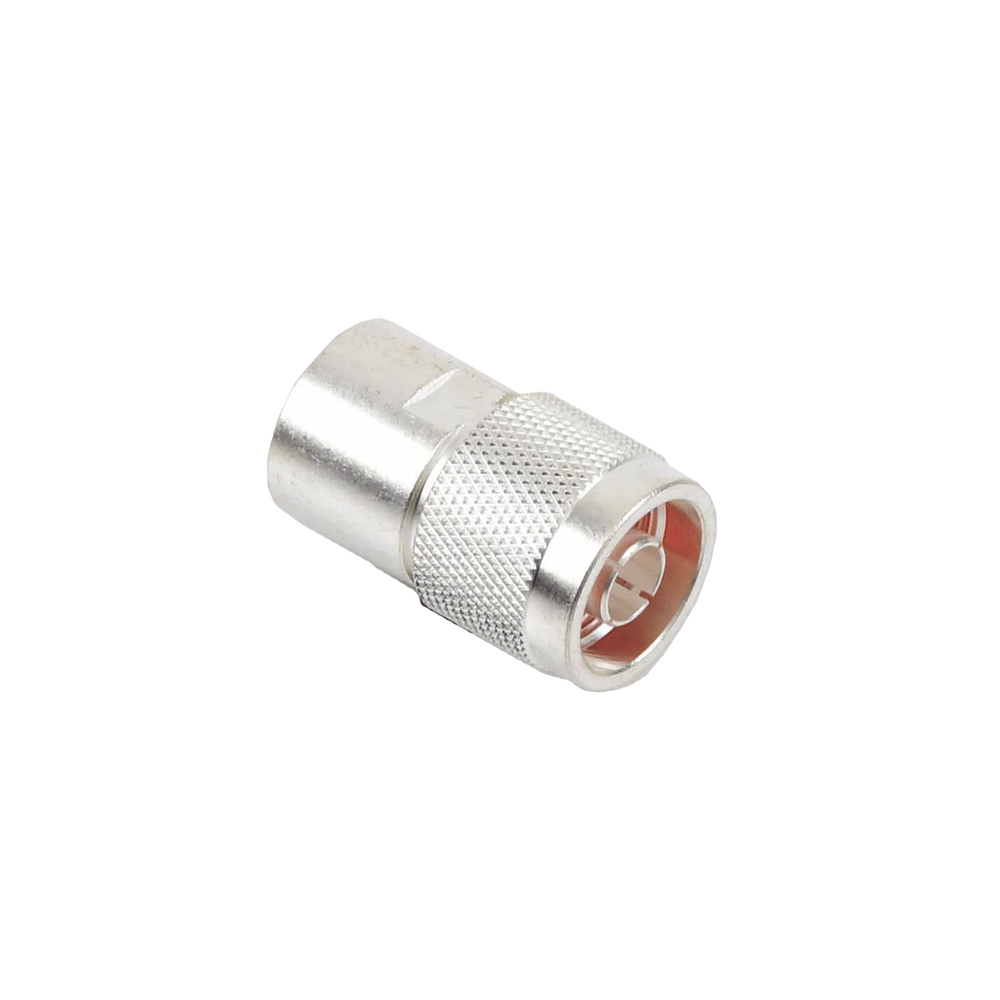

RF Industries RFN-1002-1S N Male Connector RG-8/U Gold Plated
Product identifier
SKU
RFN-1002-1S
$20.48
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
N Male Connector for Coaxial Cables Type RG-8/U with AWG-11/13 ​
- Connector type: N Male.
- Special for Cable: RG-8/U (BELDEN 8237), RG-213/U (8267), RG-214 (8268).
- Assembly Mode: Clamp.
- Body Painting: Silver.
- Contact Plating: Gold.
- Dielectric Insulation: PTFE.
*Do not use on cables BELDEN 9913, 7810, 8214, Times LMR-400, Commscope CNT-400 nor Vialkon RG-8/U-SYS and R FLASH-1113.
Key Features
- Gold-Plated Center Contact for Superior Signal Integrity
- Silver-Plated Brass Body Ensures Maximum Durability
- Teflon Dielectric Insulator for High Temperature Resistance
- Threaded Assembly for Secure and Reliable Connections
- Compatible With Multiple RG-8/U Series Cable Types
- Designed Specifically for AWG-11 and AWG-13 Conductors
