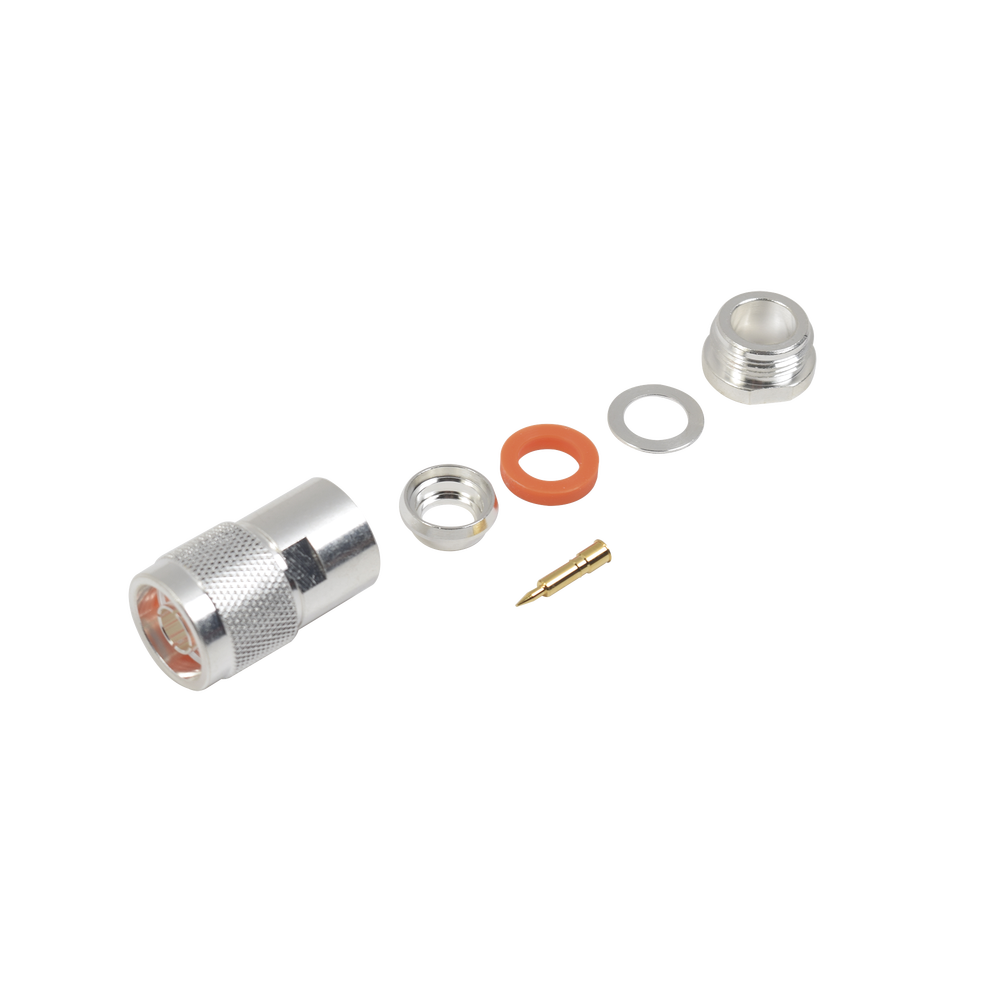

RF Industries RFN-1002-1SI N Male Clamp Connector 50 Ohm 0-11GHz for RG8/U
Product identifier
SKU
RFN-1002-1SI
$22.12
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The N male Plug Clamp is a connector designed to provide high 50 Ohm impedance within a frequency range of 0 to 11 GHz. With a VSWR of 1.3:1 at 9 GHz and an insertion loss of 0.6 dB max, it is suitable for demanding applications in temperatures ranging from -65°C to 85°C.
- Type Recomended Cable: 9913, 7810A, 8214, CNT-400, RG8/U-SYS, RFLASH-1113.
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0-11 GHz
- VSWR: 1.3:1 at 9 GHz
- Insertion Loss: 0.6 dB max x √F(GHz)
- Working Voltage: 1 kV RMS
- Temperature Range: -65°C to 85°C
- Insulation Resistance: 5K M Ohms minimum
Functionalities
- Construction Materials: Silver-plated brass, Gold-plated brass, PTFE
- Cable Compatibility: Belden 8214, 9913, 9913F, 9914, RG-8/U
Advanced Specifications
- Connections: Compatible with various cables such as Belden and RG-8/U
- Stripping instructions specified in diagrams
- Burr-free, precision edge finishing
Applications and Use Cases
This connector is ideal for demanding applications in RF communication systems, telecommunications, and industrial environments.
Key Features
- Threaded N Male Connector for Multiple Cable Types
- Silver-Plated Brass Body for Maximum Durability
- Gold-Plated Center Contact for Superior Conductivity
- Teflon Dielectric Insulator for Electrical Safety
- Professional Design Ensures Stable RF Connections
- Compatible With LMR-400, 9913, and RG8/U-SYS Cables
