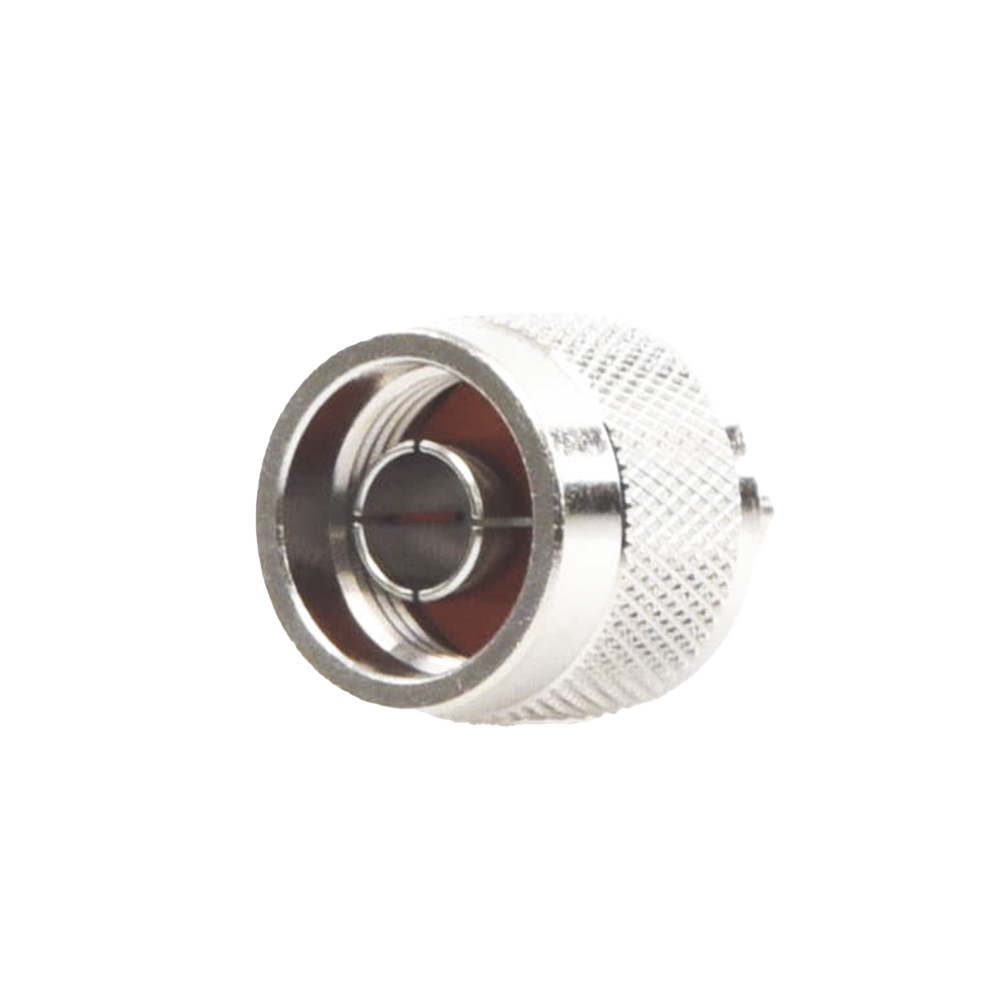

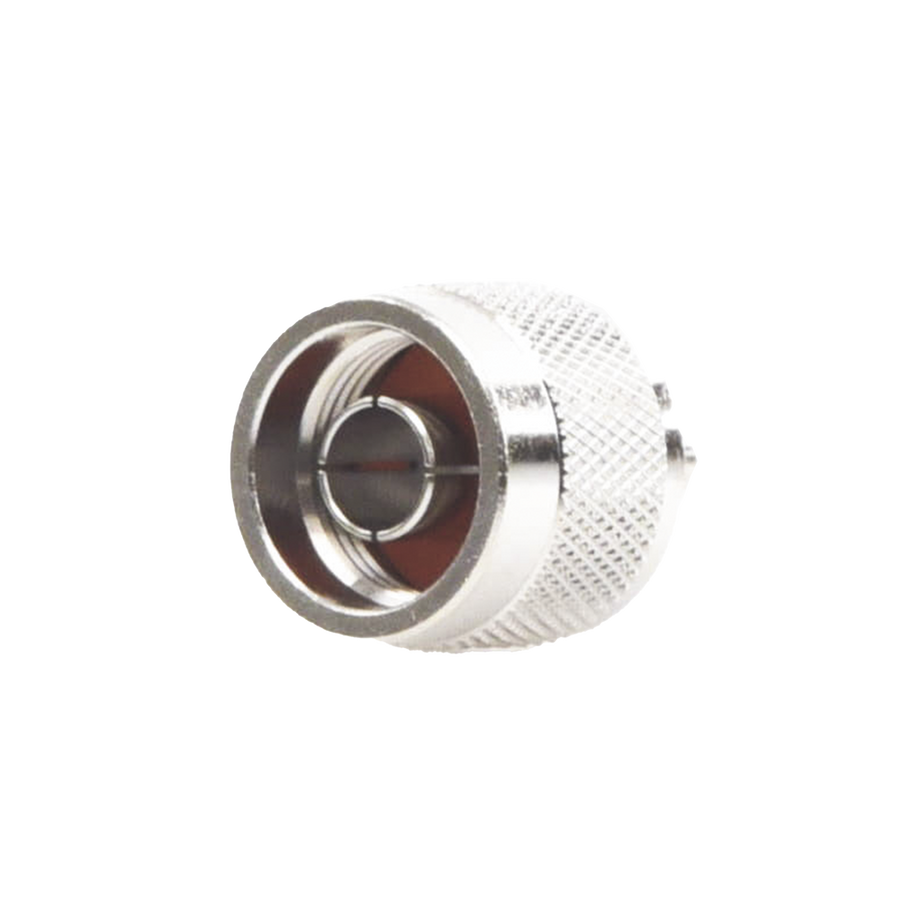

RF Industries RFN-1005-2N N Plug Crimp Connector 11GHz 50 Ohm
Product identifier
SKU
RFN-1005-2N
$17.45
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The N Plug Crimp is a high-quality RF connector designed for applications requiring up to 11 GHz, offering a maximum VSWR performance of 1.3 at 9 GHz. Manufactured by RF Connectors, its nickel-coated brass construction and PTFE insulators ensure durability and efficiency under extreme conditions.
- Recommended for Cables: RG-58/U, RG-142/U, LMR-195.
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0 - 11 GHz
- VSWR: 1.3 Max @ 9 GHz
- Insertion Loss: 0.6 dB Max √f(GHz)
- Working Voltage: 0.5 kV RMS @ sea level
- Temperature Range: -65°C to 165°C
- Insulation Resistance: 5k MOhms min.
Functionalities
- Body Material: Brass, Nickel 100μ
- Insulator: PTFE
- Ground Ring and Lock: Ni 100μ
- Seal: Silicone
- Compatible Cables: RG-58, 58A, 58C, 141, 141A, Belden 8240, 8259, 8262, 9201, 9203, 9310, 9311 & Comm/Scope 0268
Advanced Specifications
- Cable Compatibility: RG and Belden
- Crimp Die Recommendation: .100, .213
- Strip Dimensions: .110 [2.80], .157 [4.00], .327 [8.30]
- Dimensions: Overall Length .669 [17.00], Body Diameter .546 [13.87]
Applications and Use Cases
Ideal for RF installations requiring high precision and stability in their configuration, including wireless communications and data infrastructure.
Key Features
- Foldable Ring Assembly for Quick and Efficient Installation
- Nickel-Plated Bronze Body Ensures Superior Durability and Corrosion Resistance
- Gold-Plated Center Contact Provides Excellent Electrical Conductivity
- Teflon Dielectric Insulator for High Thermal Safety and Stability
- Compact Design Ideal for Space-Constrained Applications and Tight Spaces
- Multi-Cable Compatibility With Various Coaxial Cable Types and Specifications
Product support
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
