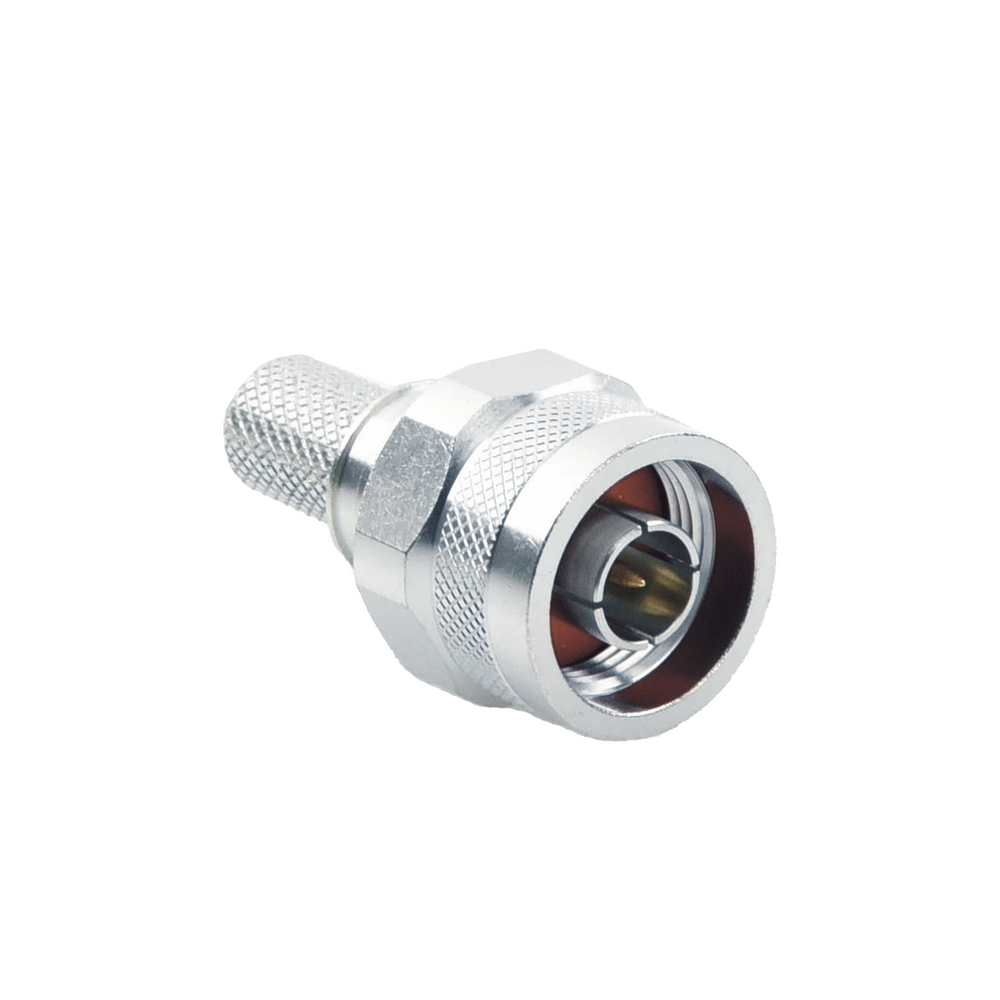

RF Industries RFN-1006-49I N Plug Crimp 50 Ohm RF Connector 0-11 GHz
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The N Plug Crimp from RF Industries is a specialized connector designed for radiofrequency applications. It features 50 Ohm impedance and operates within a frequency range of 0 to 11 GHz, making it suitable for a wide range of uses. Its low voltage standing wave ratio (VSWR) ensures optimal performance up to 8 GHz. Designed to withstand working voltages of up to 1K V rms at sea level, it features a minimum insulation resistance of 5k M Ohms. Its operating temperature range varies from -65°C to 165°C, ensuring functionality in extreme environments.
- Type recommended cable: LMR-400, 9913, 7810A, 8214, CNT-400, RG8/U-SYS, RFLASH-1113
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0-11 GHz
- VSWR: <1.10:1 up to 3 GHz, <1.2:1 at 8 GHz
- Maximum Working Voltage: 1K V rms
- Insulation Resistance: 5k M Ohms
- Temperature Range: -65°C to 165°C
Functionalities
- Insertion Loss: 0.06 dB max
- Compatibility: Times LMR-400, Commscope CNT-400, Belden 8214 & 9913
Advanced Specifications
- Crimp Recommendation: Die .429"
- Requirements: Suitable for solid central conductors
Applications and Use Cases
Applications in data communications and telecommunications requiring high-frequency handling capacity and low VSWR.
Key Features
- Foldable Ring for Easy Installation in Tight Spaces
- Silver Plated Brass Body for Maximum Durability and Corrosion Resistance
- Gold Plated Captive Center Pin for Superior Conductivity
- Teflon Dielectric Insulator With High Temperature Resistance
- Operational Temperature Range From -85°F to 329°F
- Low Insertion Loss of 0.06 dB Maximum at 11 GHz
