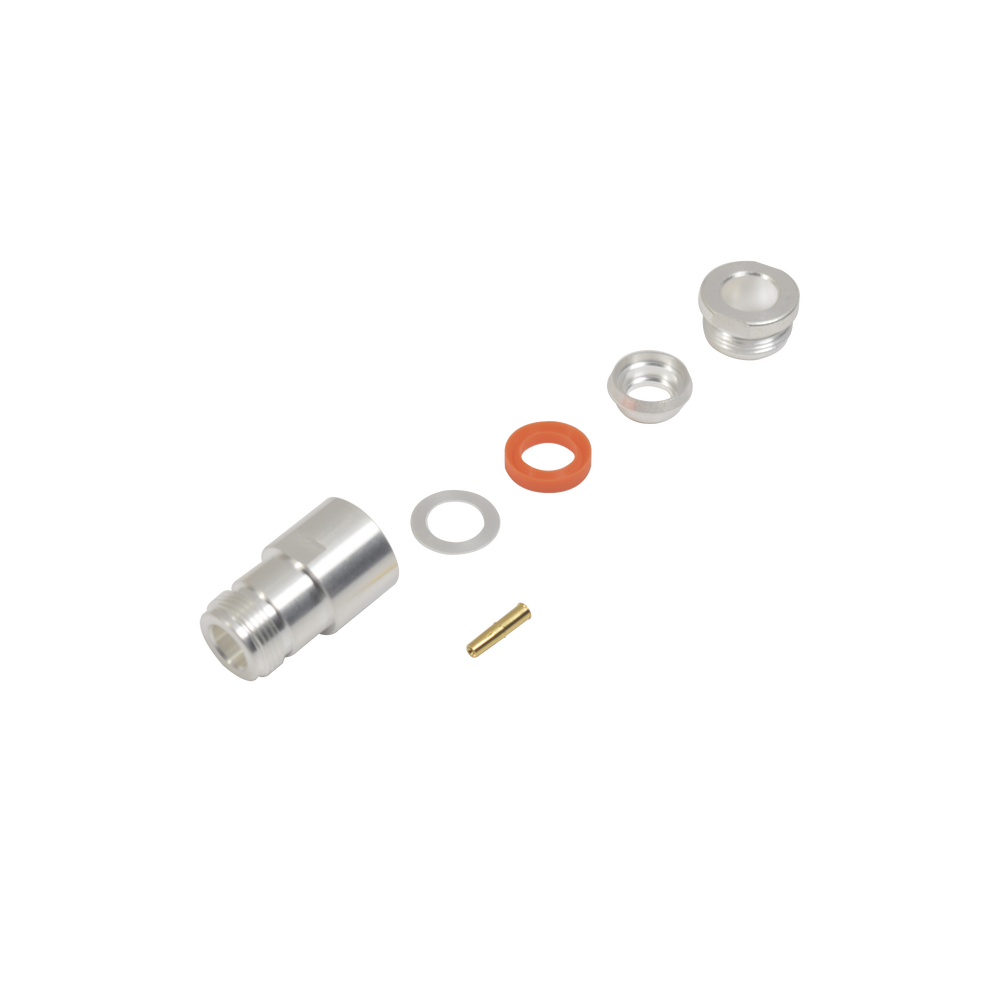

RF Industries RFN-1024-1 N Jack Clamp 50 Ohm RF Connector for RG-213
Product identifier
SKU
RFN-1024-1
$22.13
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The N Jack Clamp is a sophisticated connector designed for radiofrequency system applications. This product is made with high-quality components such as brass and PTFE, featuring a silver and gold finish that ensures excellent conductivity and corrosion resistance. With a design that supports a frequency range of 0 to 11 GHz and 50 Ohm impedance, it is ideal for a wide range of demanding technical applications.
For cable: RG8/U, RG8A/U, RG213
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0-11 GHz
- VSWR: 1.3 Max
- Components: Brass and PTFE
- Finish: Silver and Gold
Functionalities
- Insertion Loss: 0.6 dB Max. √f(GHz)
- Working Voltage: 1 kV rms
- Temperature Range: -65°C to 85°C
- Compatible Cable: RG-213
- Insulation Resistance: 5k M Ohms min.
Advanced Specifications
- Interfaces: Compatible with RG-213 cable
- Insulation Resistance: 5k M Ohms min.
- Operating Temperature: -65°C to 85°C
Applications and Use Cases
RF Applications: The N Jack Clamp is perfect for RF systems requiring a reliable, low-loss connection.
Key Features
- Threaded Coupling for Secure and Durable Connections
- Silver-Plated Brass Body Ensures Maximum Conductivity
- 24k Gold-Plated Center Contact for Superior Performance
- High-Strength Teflon Dielectric Insulator for Reliability
- Compact Design Ideal for Space-Constrained Applications
- Foldable Ring Mechanism for Easy Installation and Removal
