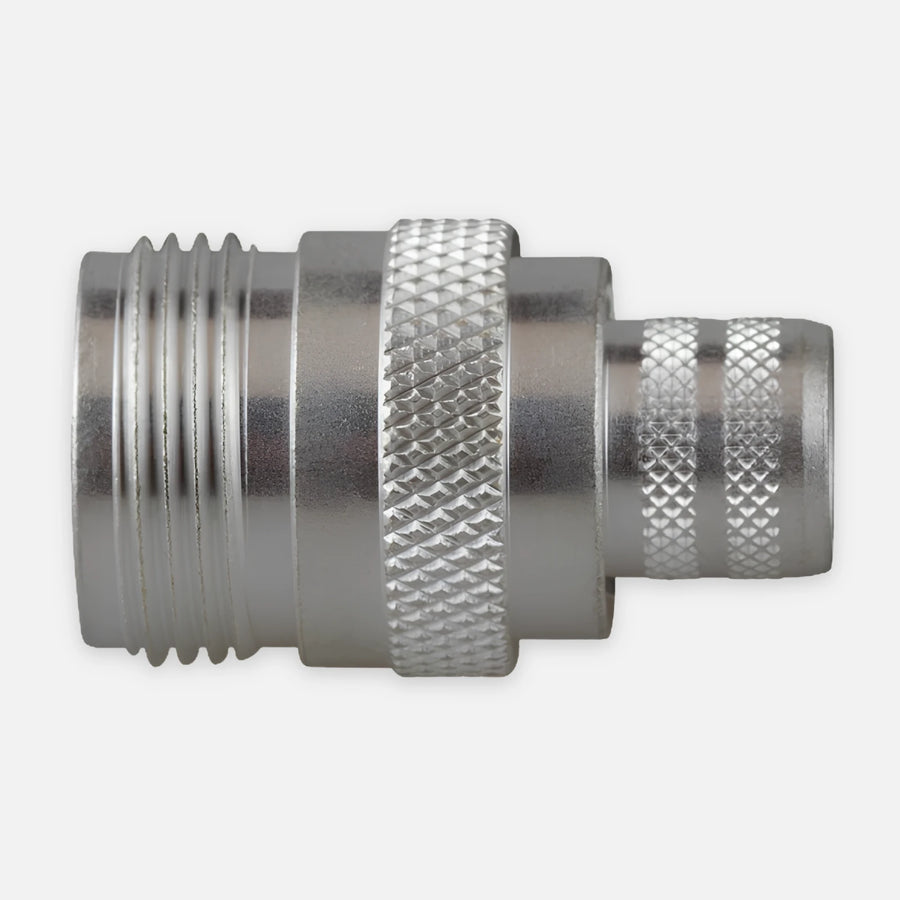

RF Industries RFN-1028-SI N Female Crimp Connector 50 Ohm 11 GHz LMR-400
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The RFN-1028-SI is an N Female Crimp connector designed for RF applications requiring a 50 Ohm impedance and a working voltage of up to 1000 VRMS at sea level. It offers a frequency range from 0 to 11 GHz with minimal insertion loss ≤ 2.2 dB at 10 GHz, ensuring optimal performance in high-frequency systems. Compatible with Belden and LMR-400 cables, it is a versatile choice for industrial and communication applications.
- Type Recommended Cable: 8214, LMR-400, RG8/U-SYS, RFLASH-1113.
Technical Specifications
- Impedance: 50 Ohms
- Working Voltage: 1000 VRMS at sea level
- Frequency Range: 0 - 11 GHz
- Insertion Loss: ≤ 2.2 dB @ 10 GHz
- Max VSWR: 1.3:1 @ 9 GHz
Functionalities
- Compatible with Belden 8214, 9913, 9913F, 9914, RG-8/U, Carol C1108, Times AA-5886 & LMR-400
- Requires specific crimping and soldering for some cable types
Advanced Specifications
- Recommended crimp dimensions: .128" (Solder Only) for RG-8/U cables, .429" for standard crimping
- Recommended stripping dimensions: .390 inches (9.91 mm) and .325 inches (8.25 mm)
- Materials: Silver-finished brass (sleeve and body), gold-finished brass (contact), PTFE (dielectric)
- Tolerances: Decimals: .005, Diameters: .01
Applications and Use Cases
This connector is ideal for telecommunications, antenna installations, and RF communication systems requiring high reliability and performance at frequencies up to 11 GHz.
Key Features
- Professional N Female Connector for Coaxial Cables
- Foldable Ring Design for Secure and Quick Connections
- Bronze Body With Durable Silver Plating Finish
- 24K Gold-Plated Center Contact for Superior Conductivity
- High-Temperature Teflon Dielectric Insulation Material
- 50 Ohm Impedance for Stable Signal Transmission
