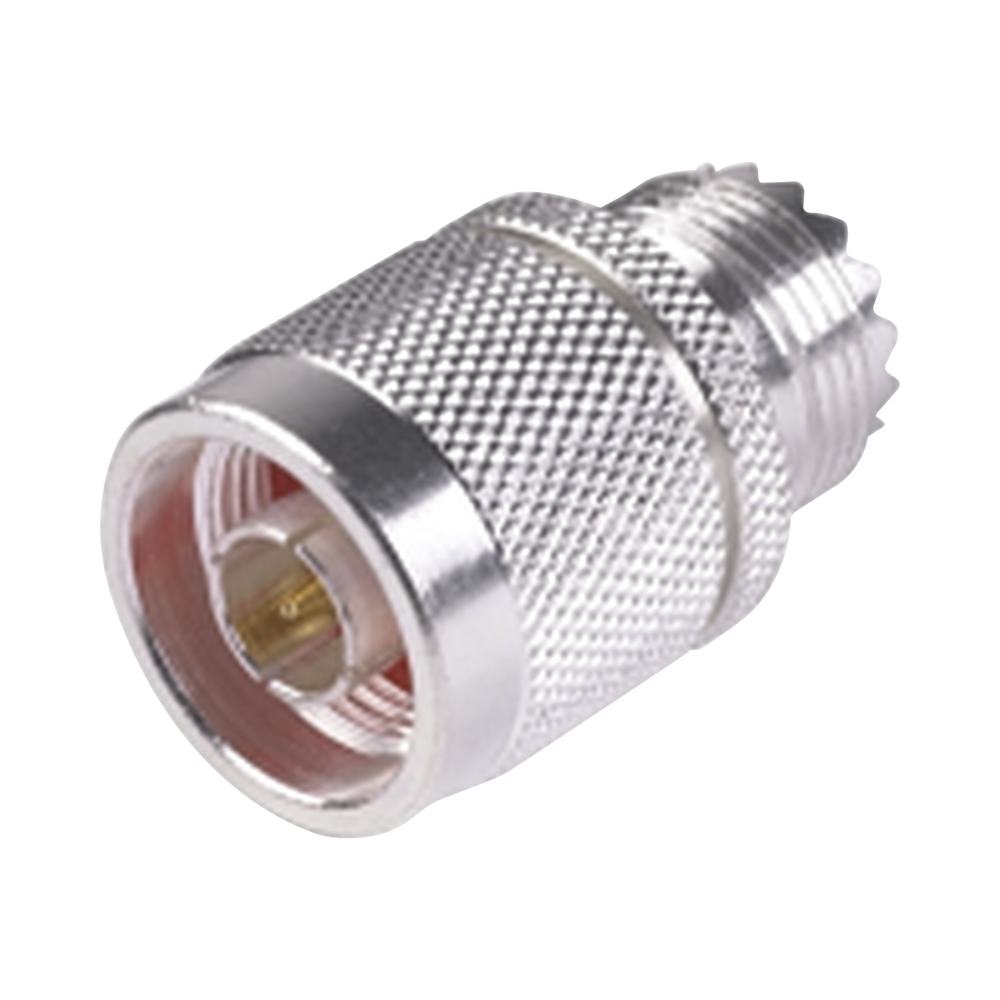

RF Industries RFN-1035-1 N Male to UHF Female RF Adapter Silver Gold
Product identifier
SKU
RFN-1035-1
$21.05
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The N Male to UHF Female adapter is designed for applications requiring an efficient transition between these two connector types. Built with high-quality materials, it offers a non-constant impedance and a robust silver and gold finish to ensure optimal performance across various applications.
- Adapter Type: From N Male to UHF Female (SO-239) Connector.
Technical Specifications
- Impedance: Non-constant
- Body Material: Brass with 30 micro-inch silver finish
- Insulator: PTFE
- Contact: Brass with 3 micro-inch gold finish
Functionalities
- Dimensions: Total length of 32.55 mm, Diameter of 18.12 mm, Connector length of 11.25 mm
- Thread: Type 5/8-24UNEF-2A
Advanced Specifications
- Connector: N Male to UHF Female
- Compliant with: Surface finish specifications ST-10-2
- Tolerances: Decimal ±0.015, Diameter ±0.003
Applications and Use Cases
This adapter is ideal for applications requiring interconnection between radio frequency systems using N and UHF connectors, offering flexibility in various network configurations.
Key Features
- N Male to UHF Female (SO-239) connector interface
- Efficient in-line mounting for direct connections
- Bronze body with silver plating finish
- Center contact plated with pure gold
- High-quality Teflon dielectric insulator
- Compact design for tight space installations
