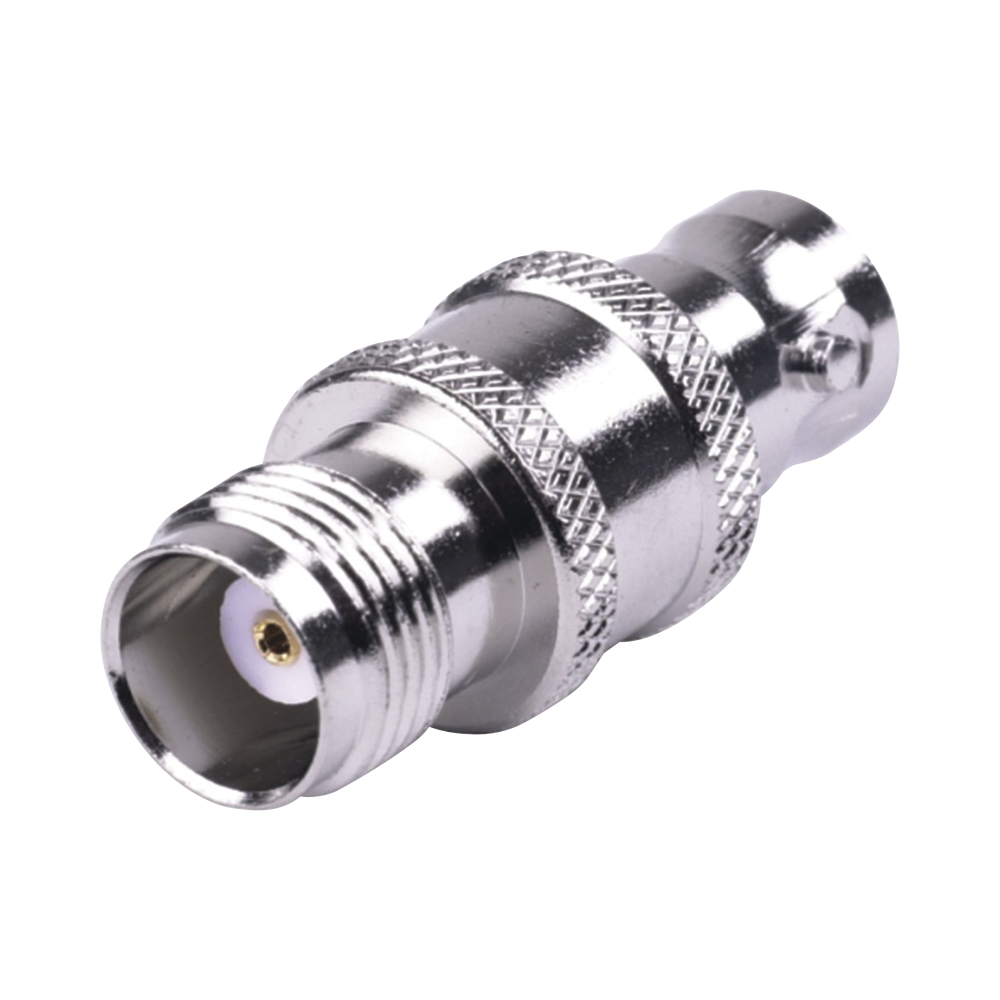

Rf Industries RFT-1232 3 PK Straight Adaptor from TNC Female Connector BNC Female Body Nickel

The RF Industries RFT-1232 is a straight inline RF adapter that bridges TNC Female and BNC Female connector interfaces within a single compact body. Designed for laboratory, field, and system integration environments where connector type mismatches must be resolved without introducing significant signal degradation, this adapter maintains a 50-ohm characteristic impedance across a frequency range from DC to 11 GHz. The nickel-plated body provides corrosion resistance suitable for repeated mating cycles, while the gold-plated pin contact ensures low-contact-resistance signal transfer. PTFE dielectric construction contributes to stable electrical performance across the supported frequency range. Supplied as a 3-pack, the RFT-1232 is a practical stocking solution for test benches, rack-mounted systems, and RF infrastructure deployments where TNC-to-BNC transitions are routinely required.

Key features & benefits

• TNC Female to BNC Female Interface — Provides a direct inline conversion between TNC Female and BNC Female connector types in a straight-line assembly configuration, eliminating the need for pigtail adapters or additional cabling.
• DC to 11 GHz Frequency Range — Rated from 0 to 11 GHz, making this adapter suitable for a wide range of RF applications spanning baseband through microwave frequencies.
• 50-Ohm RF Impedance — Matched to the industry-standard 50-ohm impedance used in the majority of RF and microwave systems, supporting consistent signal integrity throughout the transmission path.
• Nickel-Plated Body — The nickel body plating delivers reliable corrosion resistance and mechanical durability, protecting the adapter through repeated connect-disconnect cycles in demanding environments.
• Gold-Plated Pin Contact — Gold contact plating minimizes contact resistance and oxidation at the mating interface, preserving signal fidelity over the service life of the adapter.
• PTFE Dielectric — Polytetrafluoroethylene (PTFE) dielectric material offers excellent electrical stability, low loss, and resistance to environmental factors, contributing to consistent performance across the full rated frequency range.
• 3-Pack Quantity — Sold in a pack of three units, providing immediate spares for test setups, system builds, or field kits where multiple transitions or backup adapters are needed.
