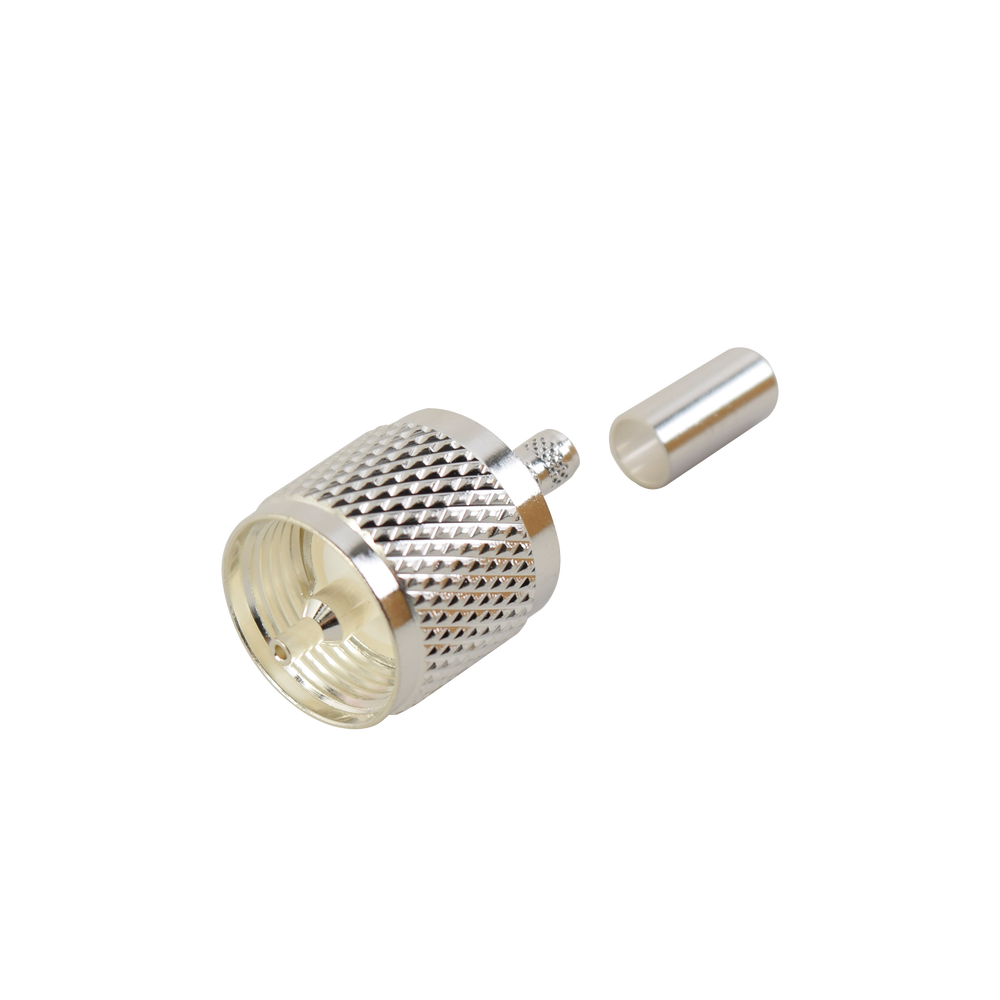

RF Industries RFU-505-ST UHF Male PL-259 Crimp Connector RG-58/U RG-142/U

PRODUCT TITLE

RF Industries RFU-505-ST UHF Male PL-259 Crimp Connector RG-58/U RG-142/U

PRODUCT OVERVIEW

The male UHF Plug Crimp connector is a versatile solution for RF connections, designed to operate within a frequency range of 0 to 300 MHz with a working voltage of 500 V RMS. Manufactured with high-quality materials such as brass and PTFE, with an 80µ" silver finish to ensure optimal conductor performance and reliability.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• High Precision PL-259 Male Connector for Professional RF Applications
• Compatible With RG-58/U and RG-142/U Coaxial Cable Types
• Foldable Ring Design for Quick and Easy Installation
• Silver Plated Brass Body for Superior Corrosion Resistance
• Teflon Dielectric Insulator With High Temperature Durability
• Stable Signal Transmission up to 500 MHz Frequency Range

TECHNICAL SPECIFICATIONS

• Brand: RF
• Model: RFU-505-ST
• Product Type: Networking Accessories
• Non-constant impedance
• 80µ" plating on body and contact
• Compatibility with various RG and LMR cable types
• Functionalities
• Crimping with .068" die or soldering
• Contact ID of .047 [1.19 mm]
• Advanced Specifications
• Compatible cables: RG-5, RG-58, RG-141, BELDEN 8240, 8262, 9201, 9203, 9310, 9311
• Additional compatibility with Times LMR-200, Alpha 9848 & M-5-22
• Recommended stripping dimensions: .600" (15.24 mm) and .323" (8.20 mm)
• Recommended crimp diameter: .213"
• Applications and Use Cases
• This connector is ideal for radiofrequency applications in telecommunications, industrial systems, and versatile high-quality connections.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications

SHIPPING

• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia

RETURNS

• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping

DATA ACCURACY DISCLAIMER

Product details are based on available manufacturer information and may be subject to change without notice.
